AOZ8S205BLS-24. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Absolute Maximum Ratings
该数据表的模型线
文件文字版本

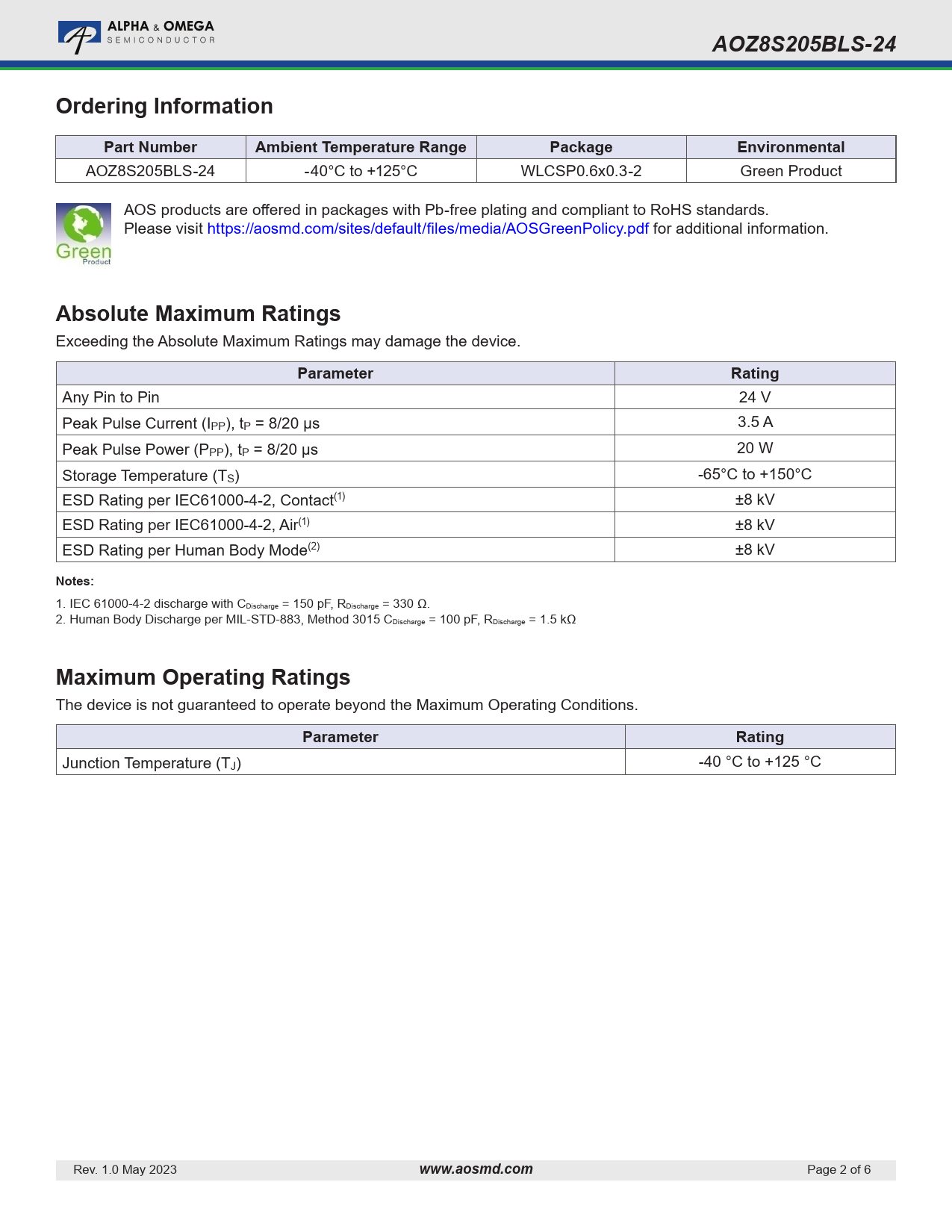

AOZ8S205BLS-24 Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ8S205BLS-24 -40°C to +125°C WLCSP0.6x0.3-2 Green Product AOS products are offered in packages with Pb-free plating and compliant to RoHS standards. Please visit https:/ aosmd.com/sites/default/files/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter Rating
Any Pin to Pin 24 V Peak Pulse Current (IPP), tP = 8/20 µs 3.5 A Peak Pulse Power (PPP), tP = 8/20 µs 20 W Storage Temperature (TS) -65°C to +150°C ESD Rating per IEC61000-4-2, Contact(1) ±8 kV ESD Rating per IEC61000-4-2, Air(1) ±8 kV ESD Rating per Human Body Mode(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150 pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ
Maximum Operating Ratings
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 1.0 May 2023
www.aosmd.com
Page 2 of 6
AOZ8S205BLS-24 -40°C to +125°C WLCSP0.6x0.3-2 Green Product AOS products are offered in packages with Pb-free plating and compliant to RoHS standards. Please visit https:/ aosmd.com/sites/default/files/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter Rating
Any Pin to Pin 24 V Peak Pulse Current (IPP), tP = 8/20 µs 3.5 A Peak Pulse Power (PPP), tP = 8/20 µs 20 W Storage Temperature (TS) -65°C to +150°C ESD Rating per IEC61000-4-2, Contact(1) ±8 kV ESD Rating per IEC61000-4-2, Air(1) ±8 kV ESD Rating per Human Body Mode(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150 pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ
Maximum Operating Ratings
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 1.0 May 2023
www.aosmd.com
Page 2 of 6
