Datasheet AV, SMV (Pico Electronics)
| 制造商 | Pico Electronics |
| 描述 | Isolated DC-DC Converters |
| 页数 / 页 | 7 / 1 — SERIES AV/SMV. SURFACE MOUNT and PLUG-IN. Hi Voltage - Up to 500 VDC … |
| 文件格式/大小 | PDF / 309 Kb |
| 文件语言 | 英语 |
SERIES AV/SMV. SURFACE MOUNT and PLUG-IN. Hi Voltage - Up to 500 VDC Output. Hi Reliability. Ultra-Miniature - Low Profile
该数据表的模型线
- 12AV100 12AV100D 12AV150 12AV150D 12AV200 12AV200D 12AV250 12AV250D 12AV300 12AV350 12AV400 12AV450 12AV500 15AV100 15AV100D 15AV150 15AV150D 15AV200 15AV200D 15AV250 15AV250D 15AV300 15AV350 15AV400 15AV450 15AV500 24AV100 24AV100D 24AV150 24AV150D 24AV200 24AV200D 24AV250 24AV250D 24AV300 24AV350 24AV400 24AV450 24AV500 28AV100 28AV100D 28AV150 28AV150D 28AV200 28AV200D 28AV250 28AV250D 28AV300 28AV350 28AV400 28AV450 28AV500 5AV100 5AV100D 5AV150 5AV150D 5AV200 5AV200D 5AV250 5AV250D 5AV300 5AV350 5AV400 5AV450 5AV500
- 12SMV100 12SMV100D 12SMV150 12SMV150D 12SMV200 12SMV200D 12SMV250 12SMV250D 12SMV300 12SMV350 12SMV400 12SMV450 12SMV500 15SMV100 15SMV100D 15SMV150 15SMV150D 15SMV200 15SMV200D 15SMV250 15SMV250D 15SMV300 15SMV350 15SMV400 15SMV450 15SMV500 24SMV100 24SMV100D 24SMV150 24SMV150D 24SMV200 24SMV200D 24SMV250 24SMV250D 24SMV300 24SMV350 24SMV400 24SMV450 24SMV500 28SMV100 28SMV100D 28SMV150 28SMV150D 28SMV200 28SMV200D 28SMV250 28SMV250D 28SMV300 28SMV350 28SMV400 28SMV450 28SMV500 5SMV100 5SMV100D 5SMV150 5SMV150D 5SMV200 5SMV200D 5SMV250 5SMV250D 5SMV300 5SMV350 5SMV400 5SMV450 5SMV500
文件文字版本

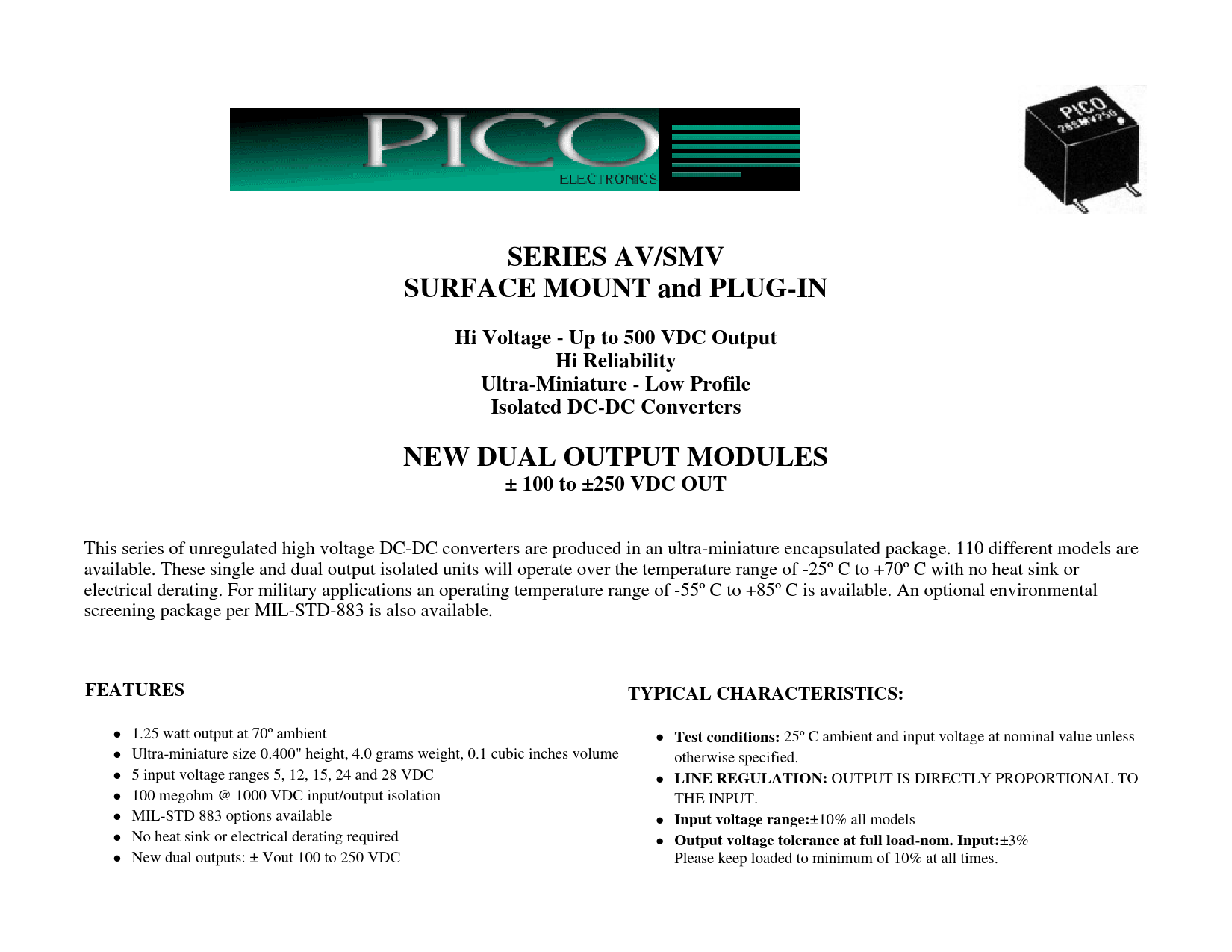

SERIES AV/SMV SURFACE MOUNT and PLUG-IN Hi Voltage - Up to 500 VDC Output Hi Reliability Ultra-Miniature - Low Profile Isolated DC-DC Converters NEW DUAL OUTPUT MODULES ± 100 to ±250 VDC OUT
This series of unregulated high voltage DC-DC converters are produced in an ultra-miniature encapsulated package. 110 different models are available. These single and dual output isolated units will operate over the temperature range of -25º C to +70º C with no heat sink or electrical derating. For military applications an operating temperature range of -55º C to +85º C is available. An optional environmental screening package per MIL-STD-883 is also available.
FEATURES TYPICAL CHARACTERISTICS:
1.25 watt output at 70º ambient
Test conditions:
25º C ambient and input voltage at nominal value unless Ultra-miniature size 0.400" height, 4.0 grams weight, 0.1 cubic inches volume otherwise specified. 5 input voltage ranges 5, 12, 15, 24 and 28 VDC
LINE REGULATION:
OUTPUT IS DIRECTLY PROPORTIONAL TO 100 megohm @ 1000 VDC input/output isolation THE INPUT. MIL-STD 883 options available
Input voltage range:
±10% all models No heat sink or electrical derating required
Output voltage tolerance at full load-nom. Input:
±3% New dual outputs: ± Vout 100 to 250 VDC Please keep loaded to minimum of 10% at all times.
This series of unregulated high voltage DC-DC converters are produced in an ultra-miniature encapsulated package. 110 different models are available. These single and dual output isolated units will operate over the temperature range of -25º C to +70º C with no heat sink or electrical derating. For military applications an operating temperature range of -55º C to +85º C is available. An optional environmental screening package per MIL-STD-883 is also available.
FEATURES TYPICAL CHARACTERISTICS:
1.25 watt output at 70º ambient
Test conditions:
25º C ambient and input voltage at nominal value unless Ultra-miniature size 0.400" height, 4.0 grams weight, 0.1 cubic inches volume otherwise specified. 5 input voltage ranges 5, 12, 15, 24 and 28 VDC
LINE REGULATION:
OUTPUT IS DIRECTLY PROPORTIONAL TO 100 megohm @ 1000 VDC input/output isolation THE INPUT. MIL-STD 883 options available
Input voltage range:
±10% all models No heat sink or electrical derating required
Output voltage tolerance at full load-nom. Input:
±3% New dual outputs: ± Vout 100 to 250 VDC Please keep loaded to minimum of 10% at all times.
