Datasheet AV, SMV (Pico Electronics) - 5
| 制造商 | Pico Electronics |
| 描述 | Isolated DC-DC Converters |
| 页数 / 页 | 7 / 5 — SERIES AV/SMV - DUAL OUTPUT. Max. PICO. Full Load. Typical. Output. … |
| 文件格式/大小 | PDF / 309 Kb |
| 文件语言 | 英语 |
SERIES AV/SMV - DUAL OUTPUT. Max. PICO. Full Load. Typical. Output. Surface. Input. Plug-in. Current. Power. Voltage. Mount. Part. Per O/P
该数据表的模型线
- 12AV100 12AV100D 12AV150 12AV150D 12AV200 12AV200D 12AV250 12AV250D 12AV300 12AV350 12AV400 12AV450 12AV500 15AV100 15AV100D 15AV150 15AV150D 15AV200 15AV200D 15AV250 15AV250D 15AV300 15AV350 15AV400 15AV450 15AV500 24AV100 24AV100D 24AV150 24AV150D 24AV200 24AV200D 24AV250 24AV250D 24AV300 24AV350 24AV400 24AV450 24AV500 28AV100 28AV100D 28AV150 28AV150D 28AV200 28AV200D 28AV250 28AV250D 28AV300 28AV350 28AV400 28AV450 28AV500 5AV100 5AV100D 5AV150 5AV150D 5AV200 5AV200D 5AV250 5AV250D 5AV300 5AV350 5AV400 5AV450 5AV500
- 12SMV100 12SMV100D 12SMV150 12SMV150D 12SMV200 12SMV200D 12SMV250 12SMV250D 12SMV300 12SMV350 12SMV400 12SMV450 12SMV500 15SMV100 15SMV100D 15SMV150 15SMV150D 15SMV200 15SMV200D 15SMV250 15SMV250D 15SMV300 15SMV350 15SMV400 15SMV450 15SMV500 24SMV100 24SMV100D 24SMV150 24SMV150D 24SMV200 24SMV200D 24SMV250 24SMV250D 24SMV300 24SMV350 24SMV400 24SMV450 24SMV500 28SMV100 28SMV100D 28SMV150 28SMV150D 28SMV200 28SMV200D 28SMV250 28SMV250D 28SMV300 28SMV350 28SMV400 28SMV450 28SMV500 5SMV100 5SMV100D 5SMV150 5SMV150D 5SMV200 5SMV200D 5SMV250 5SMV250D 5SMV300 5SMV350 5SMV400 5SMV450 5SMV500
文件文字版本

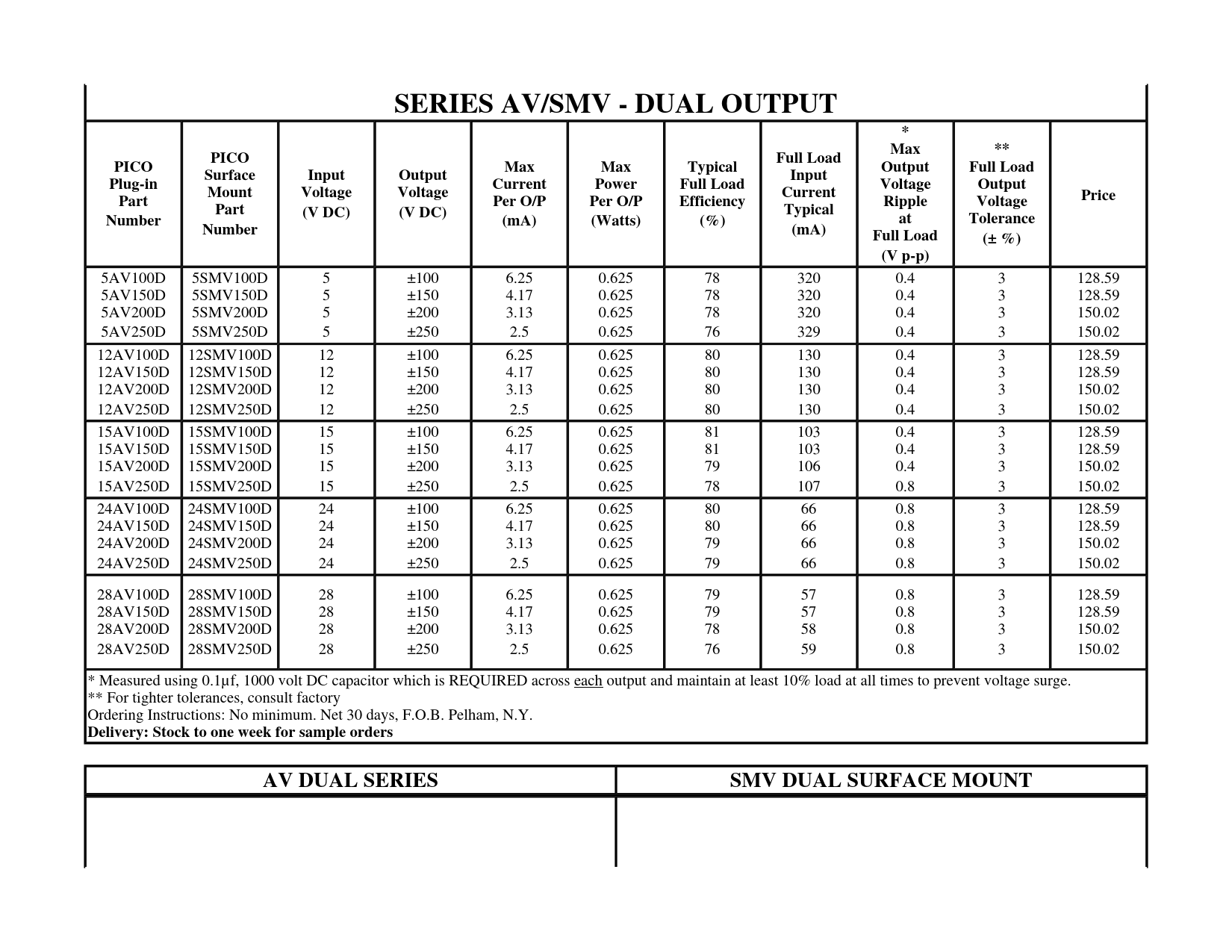

SERIES AV/SMV - DUAL OUTPUT * Max ** PICO Full Load PICO Max Max Typical Output Full Load Surface Input Output Input Plug-in Current Power Full Load Voltage Output Mount Voltage Voltage Current Part Per O/P Per O/P Efficiency Ripple Voltage Price Part (V DC) (V DC) Typical Number (mA) (Watts) (%) at Tolerance Number (mA) Full Load (± %) (V p-p)
5AV100D 5SMV100D 5 ±100 6.25 0.625 78 320 0.4 3 128.59 5AV150D 5SMV150D 5 ±150 4.17 0.625 78 320 0.4 3 128.59 5AV200D 5SMV200D 5 ±200 3.13 0.625 78 320 0.4 3 150.02 5AV250D 5SMV250D 5 ±250 2.5 0.625 76 329 0.4 3 150.02 12AV100D 12SMV100D 12 ±100 6.25 0.625 80 130 0.4 3 128.59 12AV150D 12SMV150D 12 ±150 4.17 0.625 80 130 0.4 3 128.59 12AV200D 12SMV200D 12 ±200 3.13 0.625 80 130 0.4 3 150.02 12AV250D 12SMV250D 12 ±250 2.5 0.625 80 130 0.4 3 150.02 15AV100D 15SMV100D 15 ±100 6.25 0.625 81 103 0.4 3 128.59 15AV150D 15SMV150D 15 ±150 4.17 0.625 81 103 0.4 3 128.59 15AV200D 15SMV200D 15 ±200 3.13 0.625 79 106 0.4 3 150.02 15AV250D 15SMV250D 15 ±250 2.5 0.625 78 107 0.8 3 150.02 24AV100D 24SMV100D 24 ±100 6.25 0.625 80 66 0.8 3 128.59 24AV150D 24SMV150D 24 ±150 4.17 0.625 80 66 0.8 3 128.59 24AV200D 24SMV200D 24 ±200 3.13 0.625 79 66 0.8 3 150.02 24AV250D 24SMV250D 24 ±250 2.5 0.625 79 66 0.8 3 150.02 28AV100D 28SMV100D 28 ±100 6.25 0.625 79 57 0.8 3 128.59 28AV150D 28SMV150D 28 ±150 4.17 0.625 79 57 0.8 3 128.59 28AV200D 28SMV200D 28 ±200 3.13 0.625 78 58 0.8 3 150.02 28AV250D 28SMV250D 28 ±250 2.5 0.625 76 59 0.8 3 150.02 * Measured using 0.1µf, 1000 volt DC capacitor which is REQUIRED across each output and maintain at least 10% load at all times to prevent voltage surge. ** For tighter tolerances, consult factory Ordering Instructions: No minimum. Net 30 days, F.O.B. Pelham, N.Y.
Delivery: Stock to one week for sample orders AV DUAL SERIES SMV DUAL SURFACE MOUNT
5AV100D 5SMV100D 5 ±100 6.25 0.625 78 320 0.4 3 128.59 5AV150D 5SMV150D 5 ±150 4.17 0.625 78 320 0.4 3 128.59 5AV200D 5SMV200D 5 ±200 3.13 0.625 78 320 0.4 3 150.02 5AV250D 5SMV250D 5 ±250 2.5 0.625 76 329 0.4 3 150.02 12AV100D 12SMV100D 12 ±100 6.25 0.625 80 130 0.4 3 128.59 12AV150D 12SMV150D 12 ±150 4.17 0.625 80 130 0.4 3 128.59 12AV200D 12SMV200D 12 ±200 3.13 0.625 80 130 0.4 3 150.02 12AV250D 12SMV250D 12 ±250 2.5 0.625 80 130 0.4 3 150.02 15AV100D 15SMV100D 15 ±100 6.25 0.625 81 103 0.4 3 128.59 15AV150D 15SMV150D 15 ±150 4.17 0.625 81 103 0.4 3 128.59 15AV200D 15SMV200D 15 ±200 3.13 0.625 79 106 0.4 3 150.02 15AV250D 15SMV250D 15 ±250 2.5 0.625 78 107 0.8 3 150.02 24AV100D 24SMV100D 24 ±100 6.25 0.625 80 66 0.8 3 128.59 24AV150D 24SMV150D 24 ±150 4.17 0.625 80 66 0.8 3 128.59 24AV200D 24SMV200D 24 ±200 3.13 0.625 79 66 0.8 3 150.02 24AV250D 24SMV250D 24 ±250 2.5 0.625 79 66 0.8 3 150.02 28AV100D 28SMV100D 28 ±100 6.25 0.625 79 57 0.8 3 128.59 28AV150D 28SMV150D 28 ±150 4.17 0.625 79 57 0.8 3 128.59 28AV200D 28SMV200D 28 ±200 3.13 0.625 78 58 0.8 3 150.02 28AV250D 28SMV250D 28 ±250 2.5 0.625 76 59 0.8 3 150.02 * Measured using 0.1µf, 1000 volt DC capacitor which is REQUIRED across each output and maintain at least 10% load at all times to prevent voltage surge. ** For tighter tolerances, consult factory Ordering Instructions: No minimum. Net 30 days, F.O.B. Pelham, N.Y.
Delivery: Stock to one week for sample orders AV DUAL SERIES SMV DUAL SURFACE MOUNT
