Datasheet PD333-3C/HO/L2 (Everlight) - 6
| 制造商 | Everlight |
| 描述 | 5mm Silicon PIN Photodiode , T-1 3/4 |
| 页数 / 页 | 7 / 6 — PD333-3C/H0/L2. Reliability Test Item And Condition |
| 文件格式/大小 | PDF / 238 Kb |
| 文件语言 | 英语 |
PD333-3C/H0/L2. Reliability Test Item And Condition
该数据表的模型线
文件文字版本

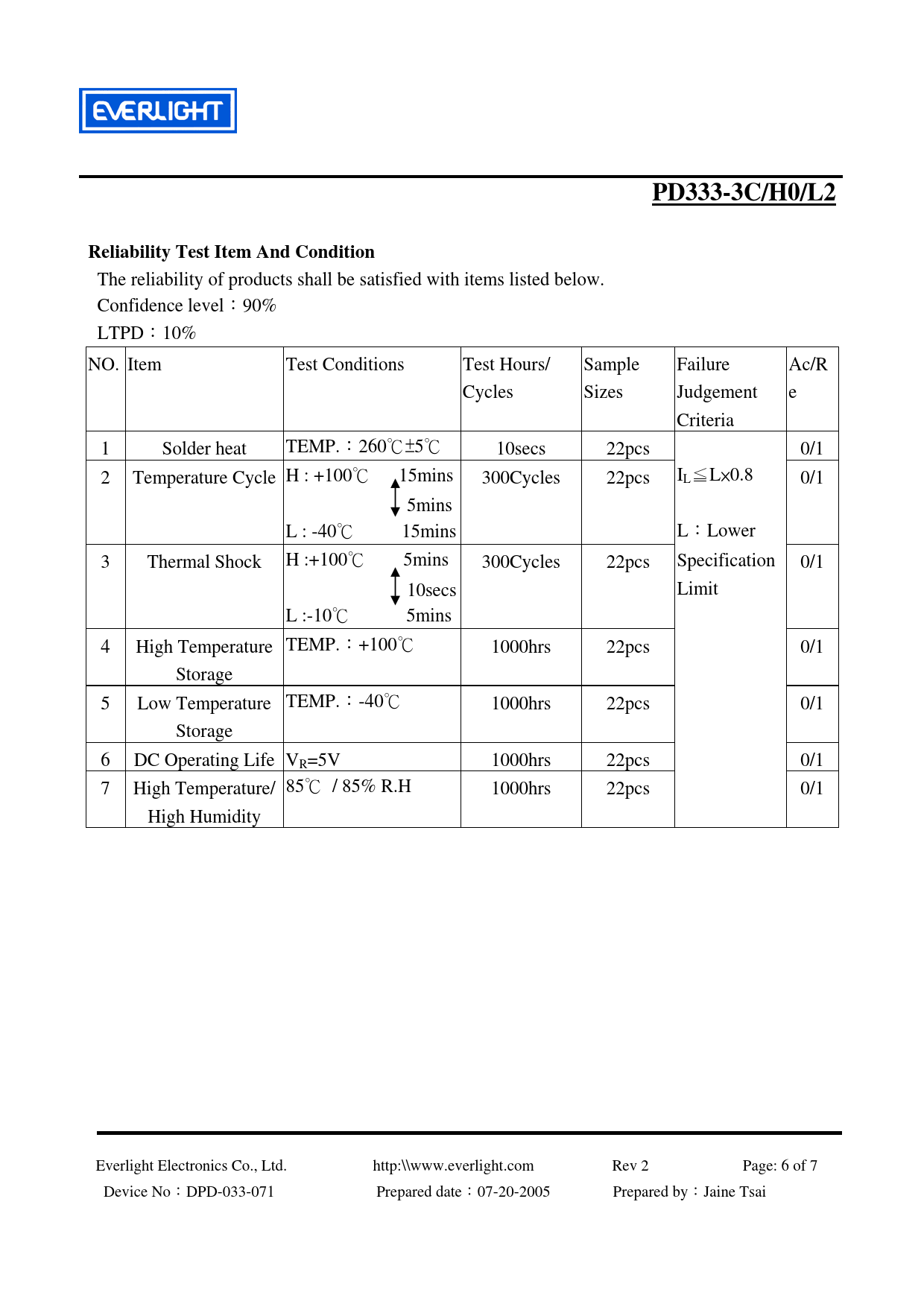

PD333-3C/H0/L2 Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Failure Ac/R Cycles Sizes Judgement e Criteria 1 Solder heat TEMP.：260℃±5℃ 10secs 22pcs 0/1 2 Temperature Cycle H : +100℃ 15mins 300Cycles 22pcs IL≦L×0.8 0/1 5mins L : -40℃ 15mins L：Lower 3 Thermal Shock H :+100℃ 5mins 300Cycles 22pcs Specification 0/1 10secs Limit L :-10℃ 5mins 4 High Temperature TEMP.：+100℃ 1000hrs 22pcs 0/1 Storage 5 Low Temperature TEMP.：-40℃ 1000hrs 22pcs 0/1 Storage 6 DC Operating Life VR=5V 1000hrs 22pcs 0/1 7 High Temperature/ 85℃ / 85% R.H 1000hrs 22pcs 0/1 High Humidity Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 6 of 7 Device No：DPD-033-071 Prepared date：07-20-2005 Prepared by：Jaine Tsai
