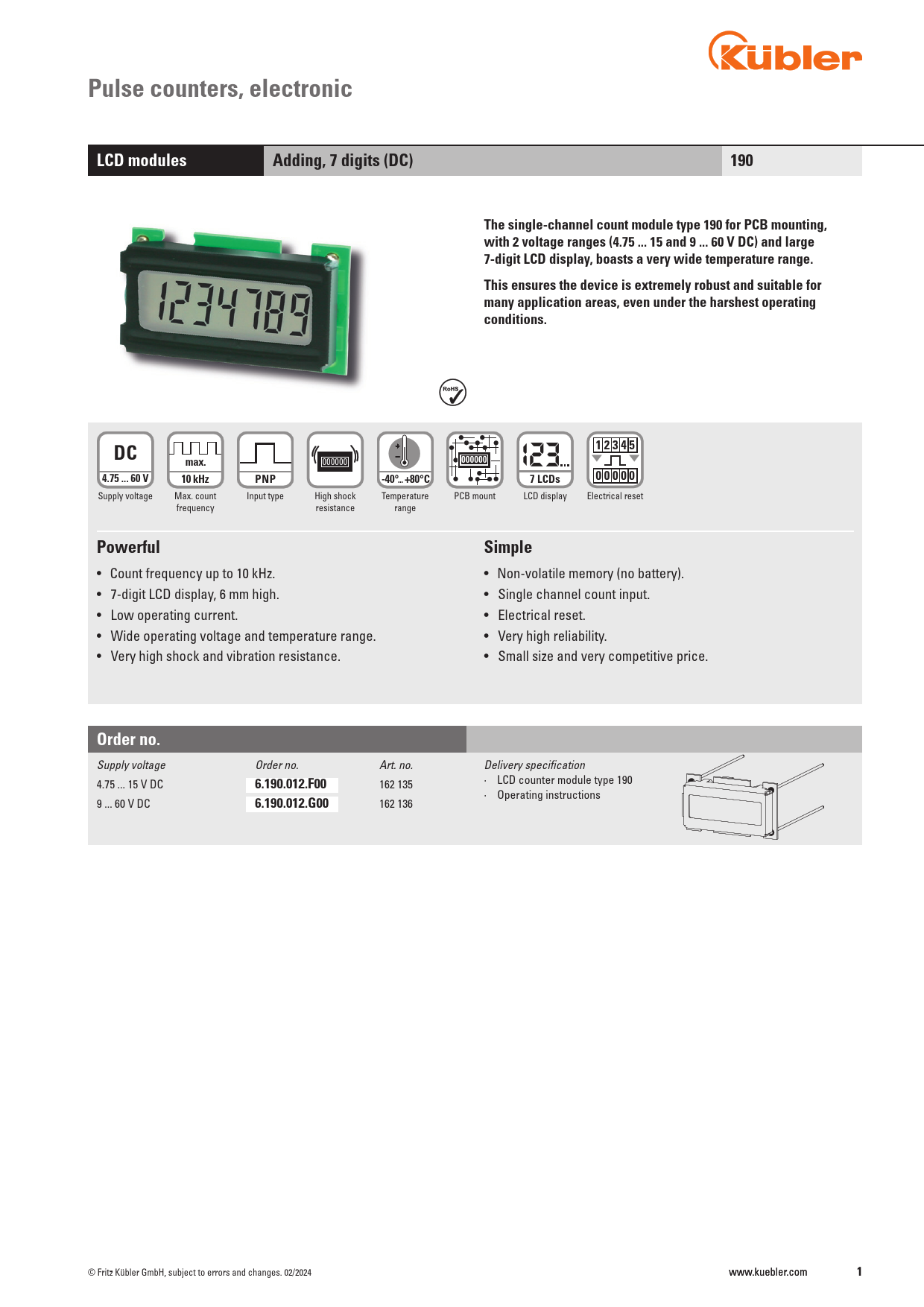

Datasheet Kübler 190 (Kuebler)

Pulse counters, electronic LCD modules Adding, 7 digits (DC) 190 The single-channel count module type 190 for PCB mounting, with 2 voltage ranges (4.75 ... 15 and 9 ... 60 V DC) and large 7-digit LCD display, boasts a very wide temperature range. This ensures the device is extremely robust and suitable for many application areas, even under the harshest operating conditions. DC 1 2 3 4 5 max.
000000
000000 4.75 ... 60 V 10 kHz PNP -40°... +80°C 7 LCDs 0 0 0 0 0
Supply voltage Max. count Input type High shock Temperature PCB mount LCD display Electrical reset frequency resistance range
Powerful Simple
• Count frequency up to 10 kHz. • Non-volatile memory (no battery). • 7-digit LCD display, 6 mm high. • Single channel count input. • Low operating current. • Electrical reset. • Wide operating voltage and temperature range. • Very high reliability. • Very high shock and vibration resistance. • Small size and very competitive price.
Order no.
Supply voltage Order no. Art. no. Delivery specification · LCD counter module type 190 4.75 ... 15 V DC
6.190.012.F00
162 135 · Operating instructions 9 ... 60 V DC
6.190.012.G00
162 136 © Fritz Kübler GmbH, subject to errors and changes. 02/2024 www.kuebler www .com .kuebler
1
