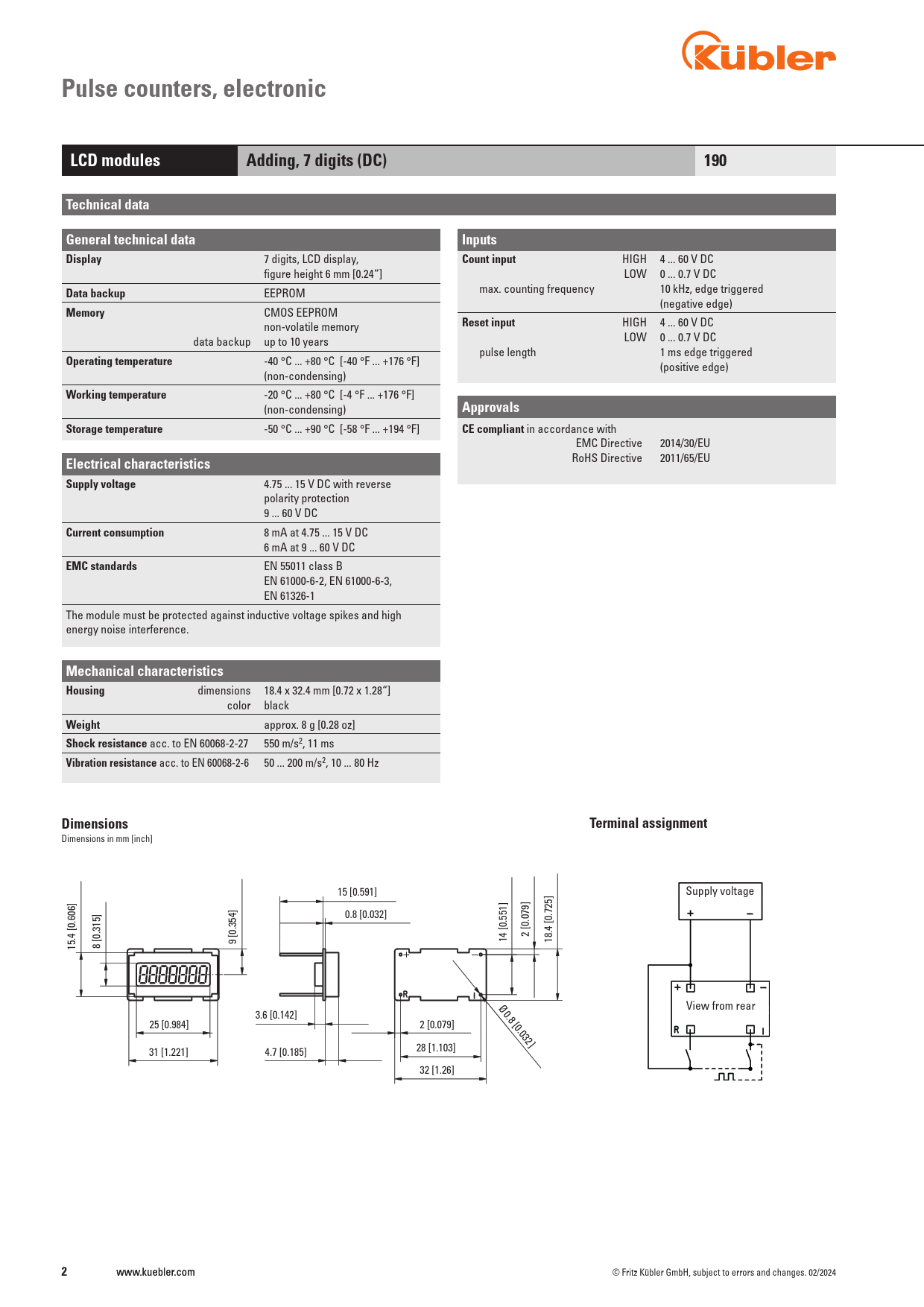

Pulse counters, electronic. LCD modules. Adding, 7 digits (DC). 190. Technical data. General technical data. Inputs. Display

Pulse counters, electronic LCD modules Adding, 7 digits (DC) 190 Technical data General technical data Inputs Display

该数据表的模型线

文件文字版本

Pulse counters, electronic LCD modules Adding, 7 digits (DC) 190 Technical data General technical data Inputs Display
7 digits, LCD display,
Count input
HIGH 4 ... 60 V DC figure height 6 mm [0.24“] LOW 0 ... 0.7 V DC
Data backup
EEPROM max. counting frequency 10 kHz, edge triggered (negative edge)
Memory
CMOS EEPROM non-volatile memory
Reset input
HIGH 4 ... 60 V DC data backup up to 10 years LOW 0 ... 0.7 V DC pulse length 1 ms edge triggered
Operating temperature
-40 °C ... +80 °C [-40 °F ... +176 °F] (positive edge) (non-condensing)
Working temperature
-20 °C ... +80 °C [-4 °F ... +176 °F] (non-condensing)
Approvals Storage temperature
-50 °C ... +90 °C [-58 °F ... +194 °F]
CE compliant
in accordance with EMC Directive 2014/30/EU
Electrical characteristics
RoHS Directive 2011/65/EU
Supply voltage
4.75 ... 15 V DC with reverse polarity protection 9 ... 60 V DC
Current consumption
8 mA at 4.75 ... 15 V DC 6 mA at 9 ... 60 V DC
EMC standards
EN 55011 class B EN 61000-6-2, EN 61000-6-3, EN 61326-1 The module must be protected against inductive voltage spikes and high energy noise interference.
Mechanical characteristics Housing
dimensions 18.4 x 32.4 mm [0.72 x 1.28“] color black
Weight
approx. 8 g [0.28 oz]
Shock resistance
acc. to EN 60068-2-27 550 m/s2, 11 ms
Vibration resistance
acc. to EN 60068-2-6 50 ... 200 m/s2, 10 ... 80 Hz
Dimensions Terminal assignment
Dimensions in mm [inch] 15 [0.591] Supply voltage 0.8 [0.032] 14 [0.551] 2 [0.079] 18.4 [0.725] 15.4 [0.606] 8 [0.315] 9 [0.354] Ø View from rear 3.6 [0.142] 0.8 [0.032 25 [0.984] 2 [0.079] ] 28 [1.103] 31 [1.221] 4.7 [0.185] 32 [1.26]
