| 描述 | SPDT High Power UltraCMOS 10 MHz–3.0 GHz RF Switch |
| 页数 / 页 | 10 / 9 — PE4259. Figure 15. Package Drawing. Figure 16. Top Marking … |
| 文件格式/大小 | PDF / 575 Kb |
| 文件语言 | 英语 |

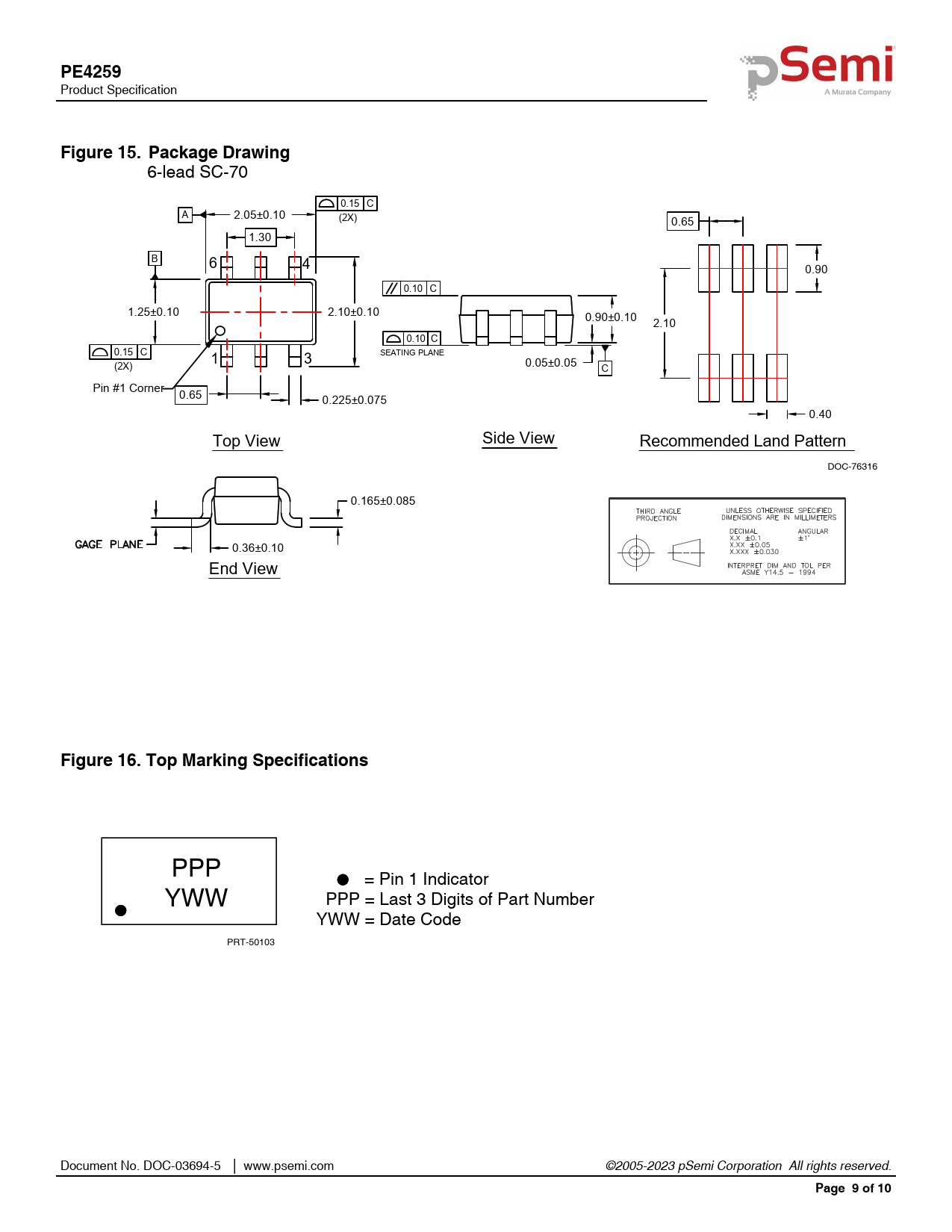

PE4259. Figure 15. Package Drawing. Figure 16. Top Marking Specifications. Page 9 of 10
该数据表的模型线
文件文字版本
PE4259
Product Specification
Figure 15. Package Drawing
6-lead SC-70 0.15 C A 2.05±0.10 (2X) 0.65 1.30 B 6 4 0.90 0.10 C 1.25±0.10 2.10±0.10 0.90±0.10 2.10 0.10 C 0.15 C SEATING PLANE 1 3 0.05±0.05 (2X) C Pin #1 Corner 0.65 0.225±0.075 0.40 Top View Side View Recommended Land Pattern DOC-76316 0.165±0.085 0.36±0.10 End View
Figure 16. Top Marking Specifications
PPP = Pin 1 Indicator YWW PPP = Last 3 Digits of Part Number YWW = Date Code PRT-50103 Document No. DOC-03694-5 │ www.psemi.com ©2005-2023 pSemi Corporation All rights reserved.
Page 9 of 10
Product Specification
Figure 15. Package Drawing
6-lead SC-70 0.15 C A 2.05±0.10 (2X) 0.65 1.30 B 6 4 0.90 0.10 C 1.25±0.10 2.10±0.10 0.90±0.10 2.10 0.10 C 0.15 C SEATING PLANE 1 3 0.05±0.05 (2X) C Pin #1 Corner 0.65 0.225±0.075 0.40 Top View Side View Recommended Land Pattern DOC-76316 0.165±0.085 0.36±0.10 End View
Figure 16. Top Marking Specifications
PPP = Pin 1 Indicator YWW PPP = Last 3 Digits of Part Number YWW = Date Code PRT-50103 Document No. DOC-03694-5 │ www.psemi.com ©2005-2023 pSemi Corporation All rights reserved.
Page 9 of 10
