Datasheet TS2431 (STMicroelectronics) - 7
| 制造商 | STMicroelectronics |
| 描述 | Adjustable Shunt Voltage Reference |
| 页数 / 页 | 16 / 7 — TS2431. Electrical characteristics. Figure 12: Test circuit for phase and … |
| 文件格式/大小 | PDF / 824 Kb |
| 文件语言 | 英语 |

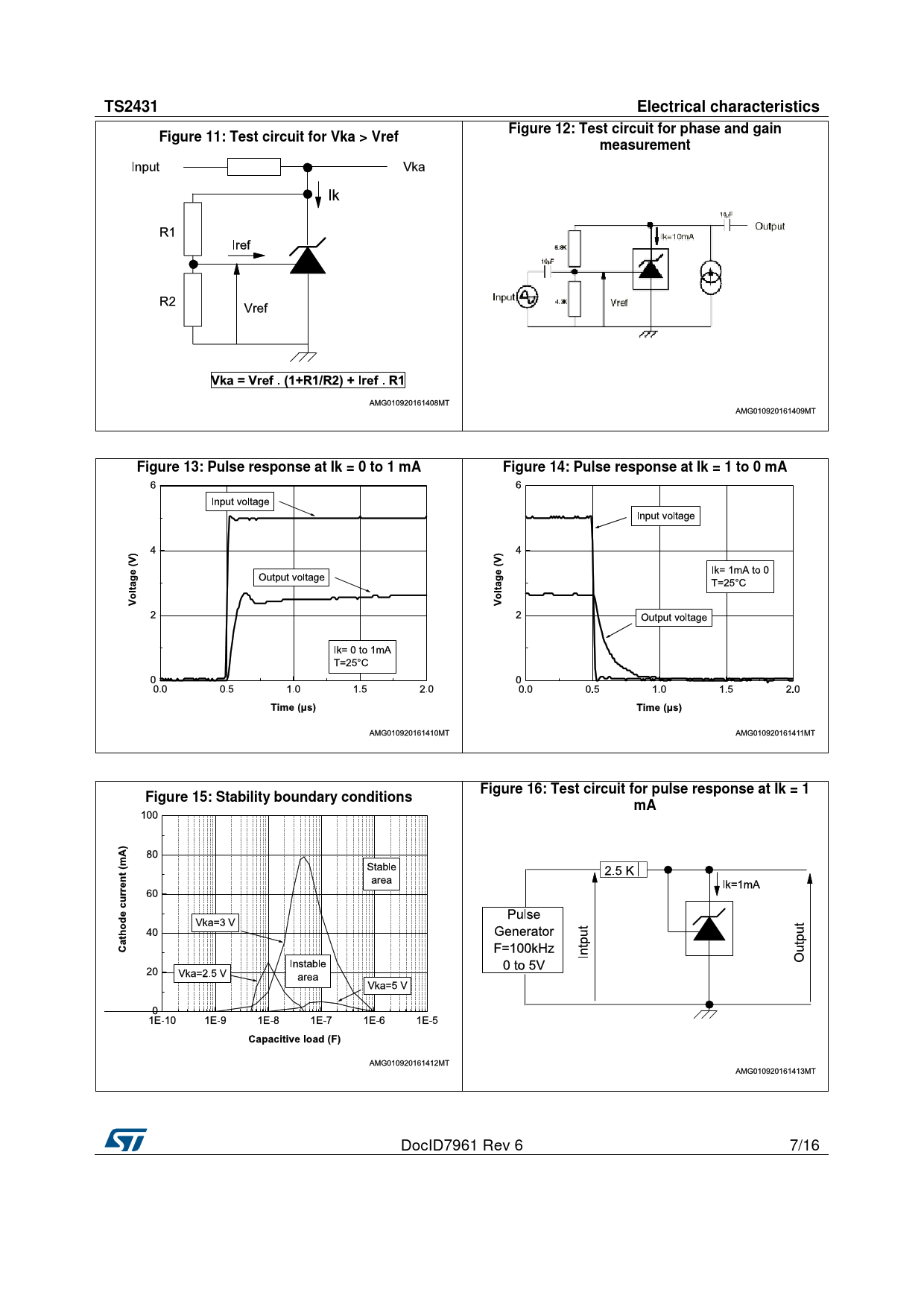

TS2431. Electrical characteristics. Figure 12: Test circuit for phase and gain. Figure 11: Test circuit for Vka > Vref
文件文字版本
TS2431 Electrical characteristics Figure 12: Test circuit for phase and gain Figure 11: Test circuit for Vka > Vref measurement Figure 13: Pulse response at Ik = 0 to 1 mA Figure 14: Pulse response at Ik = 1 to 0 mA Figure 16: Test circuit for pulse response at Ik = 1 Figure 15: Stability boundary conditions mA
