Datasheet ZXRE330 (Diodes) - 8
| 制造商 | Diodes |
| 描述 | Precision Micropower Shunt Voltage References |
| 页数 / 页 | 9 / 8 — ZXRE330. Suggested Pad Layout. SOT23. Dimensions Value (in mm). … |
| 文件格式/大小 | PDF / 828 Kb |
| 文件语言 | 英语 |

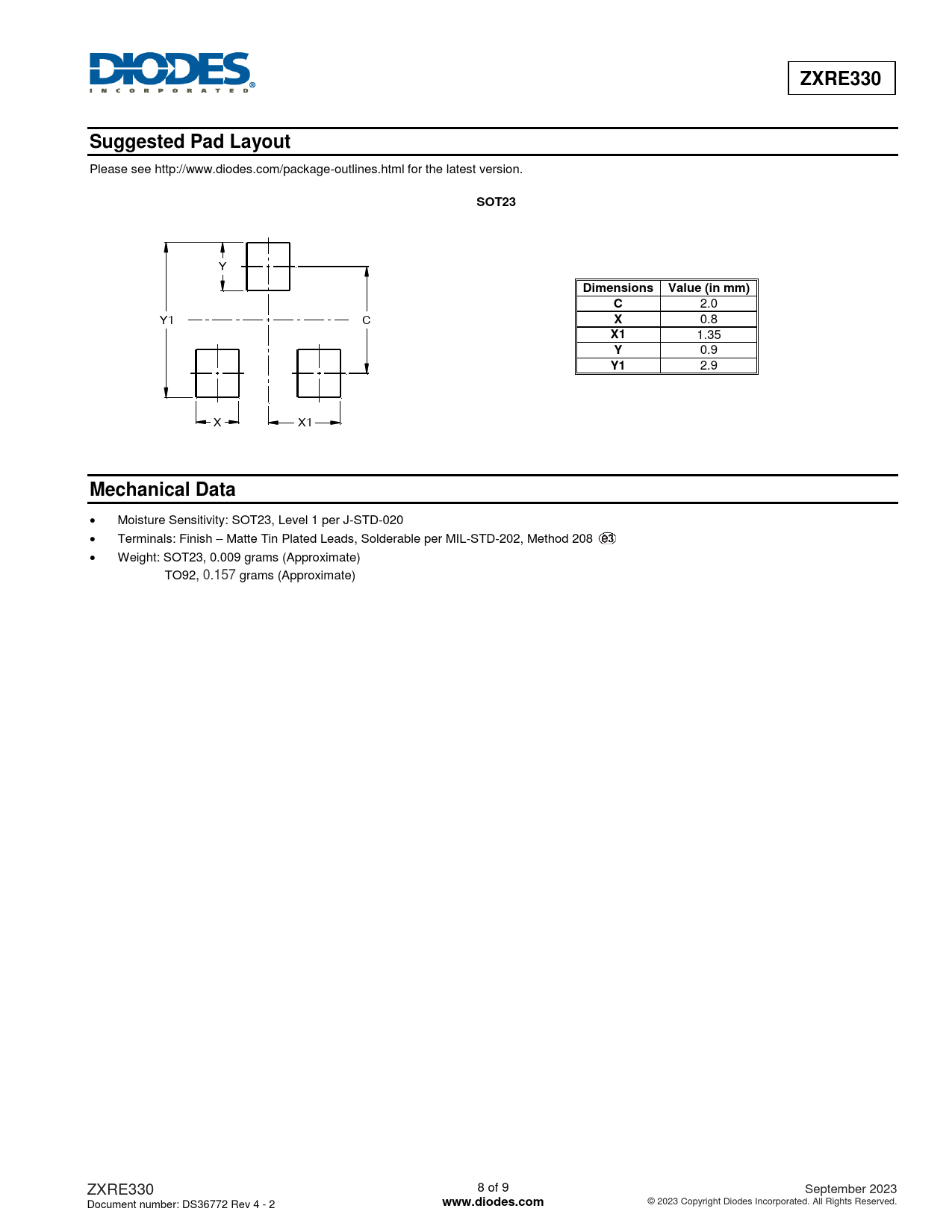

ZXRE330. Suggested Pad Layout. SOT23. Dimensions Value (in mm). Mechanical Data. www.diodes.com
该数据表的模型线
文件文字版本
ZXRE330 Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Dimensions Value (in mm) C
2.0 Y1 C
X
0.8
X1
1.35
Y
0.9
Y1
2.9 X X1
Mechanical Data
Moisture Sensitivity: SOT23, Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: SOT23, 0.009 grams (Approximate) TO92, 0.157 grams (Approximate) ZXRE330 8 of 9 September 2023 Document number: DS36772 Rev 4 - 2
