Datasheet SSL (Lumex)
| 制造商 | Lumex |
| 描述 | Axial LED |
| 页数 / 页 | 2 / 1 — PART NUMBER. REV. REV E.C.N. NUMBER AND REVISION COMMENTS. DATE. … |
| 文件格式/大小 | PDF / 582 Kb |
| 文件语言 | 英语 |
PART NUMBER. REV. REV E.C.N. NUMBER AND REVISION COMMENTS. DATE. POLARITY. ELECTRO-OPTICAL CHARACTERISTIC TA=25. PARAMETER. MIN. TYP. MAX
该数据表的模型线
文件文字版本

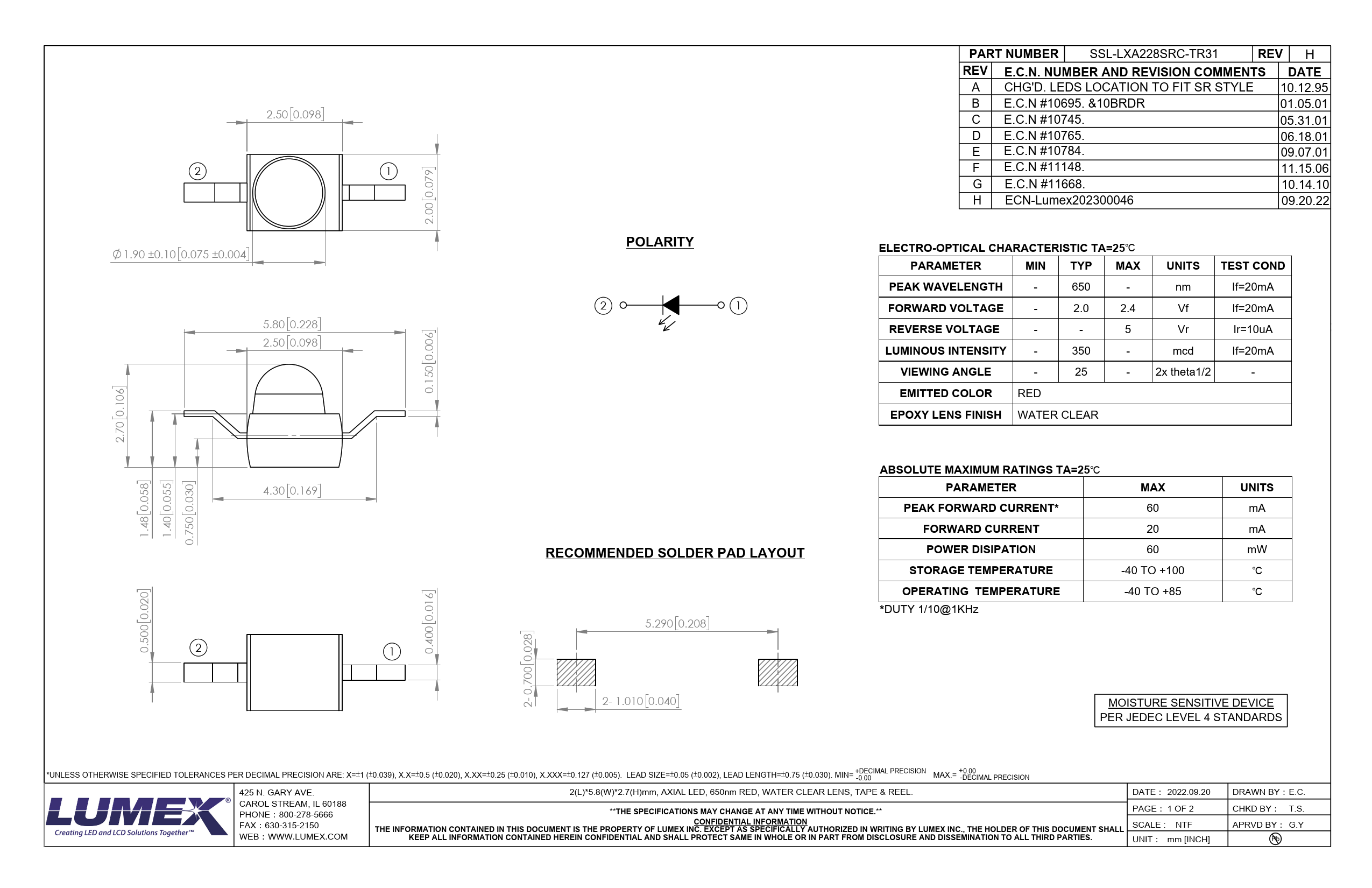

PART NUMBER
SSL-LXA228SRC-TR31
REV
H
REV E.C.N. NUMBER AND REVISION COMMENTS DATE
A CHG'D. LEDS LOCATION TO FIT SR STYLE 10.12.95 B E.C.N #10695. &10BRDR 01.05.01 2.50 0.098 C E.C.N #10745. 05.31.01 D E.C.N #10765. 06.18.01 E E.C.N #10784. 09.07.01 2 1 F E.C.N #11148. 11.15.06 G E.C.N #11668. 10.14.10 0.079 H ECN-Lumex202300046 09.20.22 2.00
POLARITY
1.90 ±0.10 0.075 ±0.004
ELECTRO-OPTICAL CHARACTERISTIC TA=25
℃
PARAMETER MIN TYP MAX UNITS TEST COND PEAK WAVELENGTH
- 650 - nm If=20mA 2 1
FORWARD VOLTAGE
- 2.0 2.4 Vf If=20mA 5.80 0.228
REVERSE VOLTAGE
- - 5 Vr Ir=10uA 2.50 0.098 0.006
LUMINOUS INTENSITY
- 350 - mcd If=20mA
VIEWING ANGLE
- 25 - 2x theta1/2 - 0.150
EMITTED COLOR
RED 0.106
EPOXY LENS FINISH
WATER CLEAR 2.70
ABSOLUTE MAXIMUM RATINGS TA=25
℃ 4.30 0.169
PARAMETER MAX UNITS
0.058 0.055 0.030
PEAK FORWARD CURRENT*
60 mA 1.48 1.40
FORWARD CURRENT
20 mA 0.750
RECOMMENDED SOLDER PAD LAYOUT POWER DISIPATION
60 mW
STORAGE TEMPERATURE
-40 TO +100 ℃
OPERATING TEMPERATURE
-40 TO +85 ℃ 0.020
*
DUTY 1/10@1KHz 0.016 5.290 0.208 0.500 2 1 0.400 0.028 2- 0.700 2- 1.010 0.040 MOISTURE SENSITIVE DEVICE PER JEDEC LEVEL 4 STANDARDS *UNLESS OTHERWISE SPECIFIED TOLERANCES PER DECIMAL PRECISION ARE: X= + ±1 (±0.039), X.X=±0.5 (±0.020), X.XX=±0.25 (±0.010), X.XXX=±0.127 (±0.005). LEAD SIZE=±0.05 (±0.002), LEAD LENGTH=±0.75 (±0.030). MIN= MAX.= +DECIMAL PRECISION 0.00 -0.00 -DECIMAL PRECISION 425 N. GARY AVE. 2(L)*5.8(W)*2.7(H)mm, AXIAL LED, 650nm RED, WATER CLEAR LENS, TAPE & REEL. DATE： 2022.09.20 DRAWN BY：E.C. CAROL STREAM, IL 60188 PAGE： 1 OF 2 CHKD BY： T.S. PHONE：800-278-5666
**THE SPECIFICATIONS MAY CHANGE AT ANY TIME WITHOUT NOTICE.**
FAX：630-315-2150
CONFIDENTIAL INFORMATION
SCALE :
THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF LUMEX INC. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY LUMEX INC., THE HOLDER OF THIS DOCUMENT SHALL
NTF APRVD BY： G.Y WEB：WWW.LUMEX.COM
KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES.
UNIT： mm [INCH] Pb
