Datasheet SSL (Lumex) - 2

PART NUMBER
SSL-LXA228SRC-TR31
REV
H
PROFILE CARRIER TAPE DIMENSION

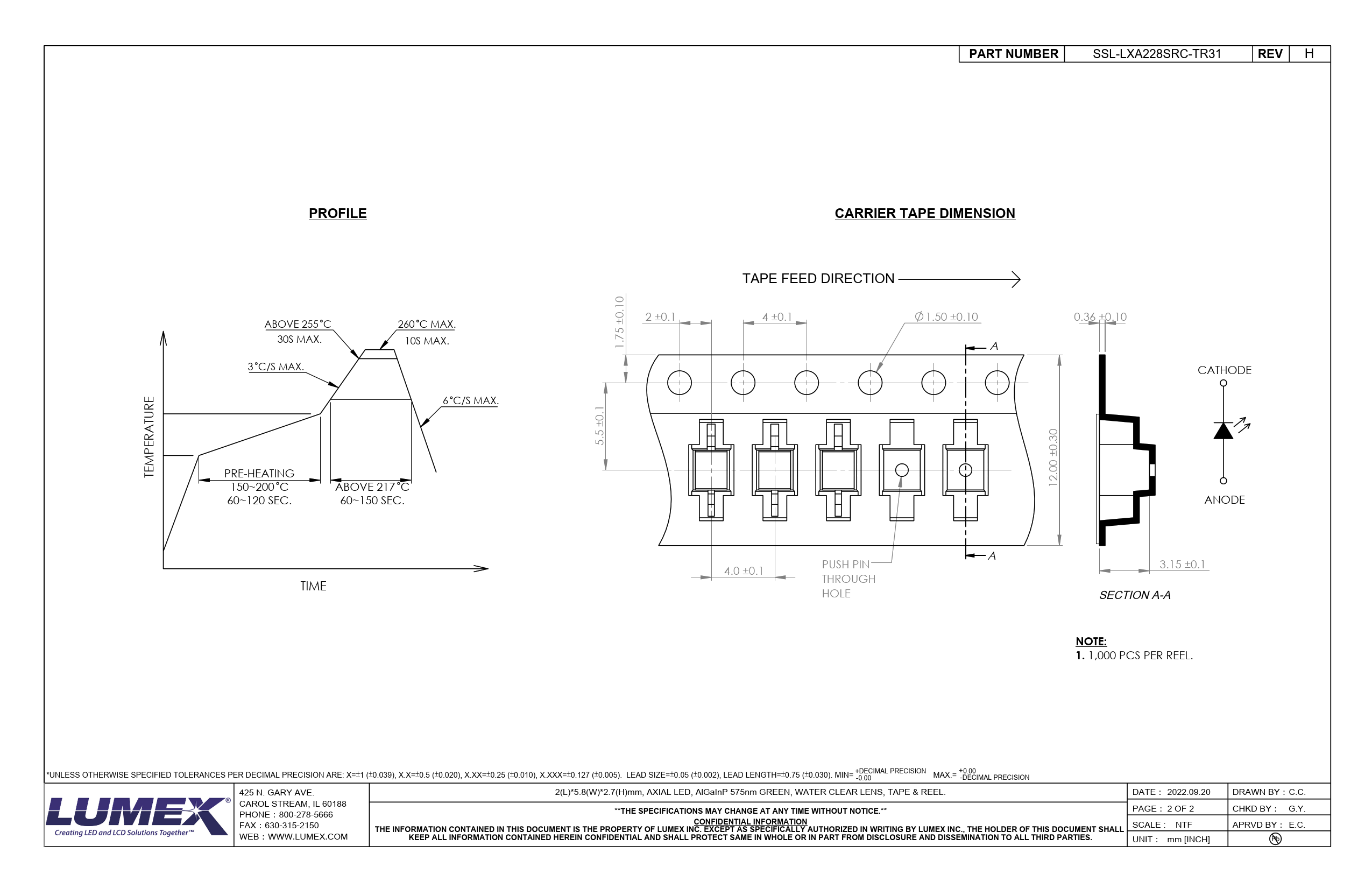

TAPE FEED DIRECTION 2 ±0.1 4 ±0.1 1.50 ±0.10 0.36 ±0.10 ABOVE 255 C 260 C MAX. 30S MAX. 10S MAX. 1.75 ±0.10 A 3 C/S MAX. CATHODE 6 C/S MAX. 5.5 ±0.1 TEMPERATURE PRE-HEATING 150~200 C ABOVE 217 C 12.00 ±0.30 60~120 SEC. 60~150 SEC. ANODE A 4.0 ±0.1 PUSH PIN 3.15 ±0.1 TIME THROUGH HOLE SECTION A-A
NOTE: 1.
1,000 PCS PER REEL. *UNLESS OTHERWISE SPECIFIED TOLERANCES PER DECIMAL PRECISION ARE: X= + ±1 (±0.039), X.X=±0.5 (±0.020), X.XX=±0.25 (±0.010), X.XXX=±0.127 (±0.005). LEAD SIZE=±0.05 (±0.002), LEAD LENGTH=±0.75 (±0.030). MIN= MAX.= +DECIMAL PRECISION 0.00 -0.00 -DECIMAL PRECISION 425 N. GARY AVE. 2(L)*5.8(W)*2.7(H)mm, AXIAL LED, AlGaInP 575nm GREEN, WATER CLEAR LENS, TAPE & REEL. DATE： 2022.09.20 DRAWN BY：C.C. CAROL STREAM, IL 60188 PAGE： 2 OF 2 CHKD BY： G.Y. PHONE：800-278-5666
**THE SPECIFICATIONS MAY CHANGE AT ANY TIME WITHOUT NOTICE.**
FAX：630-315-2150
CONFIDENTIAL INFORMATION
SCALE :
THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF LUMEX INC. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY LUMEX INC., THE HOLDER OF THIS DOCUMENT SHALL
NTF APRVD BY： E.C. WEB：WWW.LUMEX.COM
KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES.
UNIT： mm [INCH] Pb
