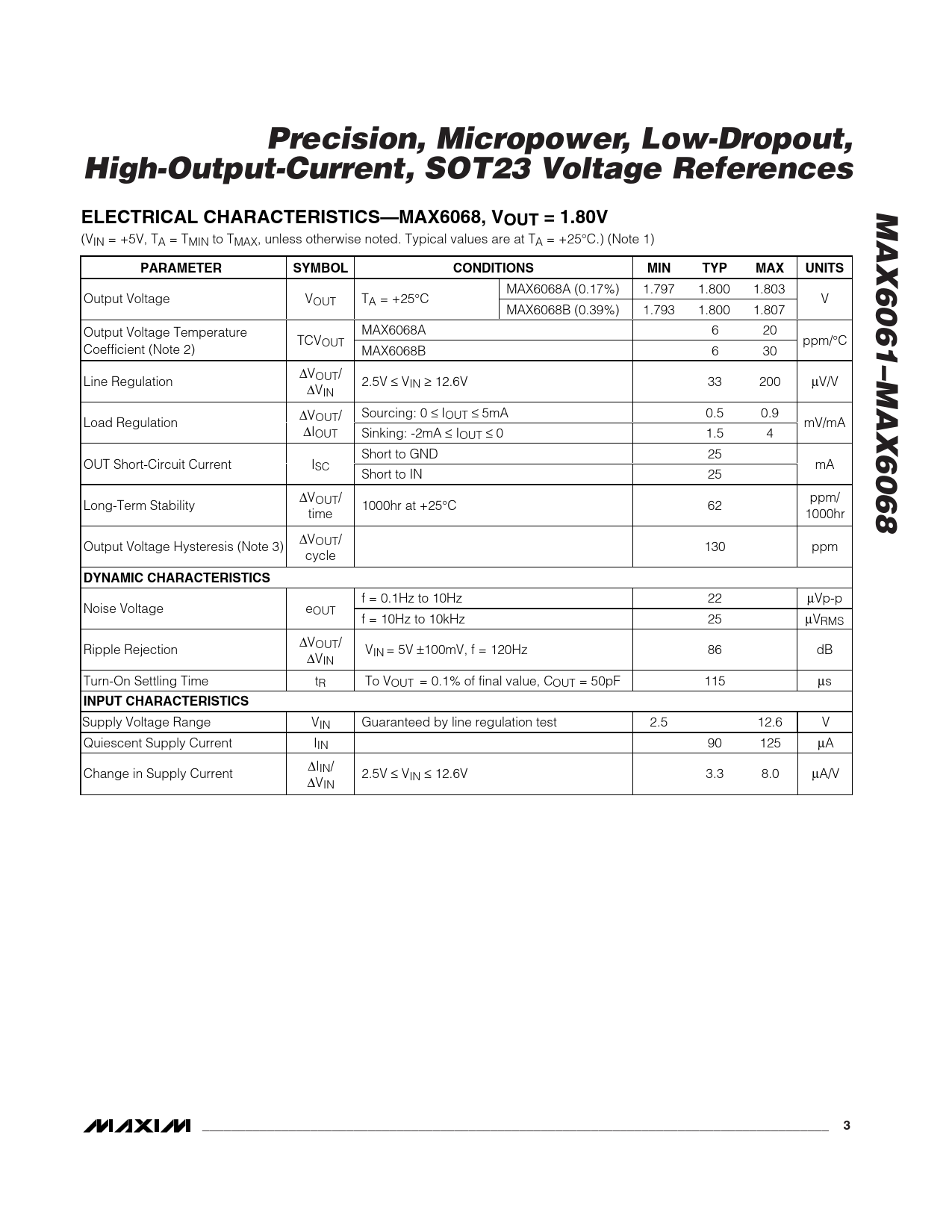

Precision, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References MAX6061–MAX6068 ELECTRICAL CHARACTERISTICS—MAX6068, VOUT = 1.80V
(VIN = +5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX6068A (0.17%) 1.797 1.800 1.803 Output Voltage VOUT TA = +25°C V MAX6068B (0.39%) 1.793 1.800 1.807 Output Voltage Temperature MAX6068A 6 20 TCVOUT ppm/°C Coefficient (Note 2) MAX6068B 6 30 ∆V Line Regulation OUT/ ∆ 2.5V ≤ VIN ≥ 12.6V 33 200 µV/V VIN Sourcing: 0 ∆VOUT/ ≤ IOUT ≤ 5mA 0.5 0.9 Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 1.5 4 Short to GND 25 OUT Short-Circuit Current ISC mA Short to IN 25 ∆V ppm/ Long-Term Stability OUT/ 1000hr at +25°C 62 time 1000hr ∆V Output Voltage Hysteresis (Note 3) OUT/ 130 ppm cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 22 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 25 µVRMS ∆V Ripple Rejection OUT/ ∆ VIN = 5V ±100mV, f = 120Hz 86 dB V IN Turn-On Settling Time tR To VOUT = 0.1% of final value, C OUT = 50pF 115 µs
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA ∆I Change in Supply Current IN/ ∆ 2.5V ≤ VIN ≤ 12.6V 3.3 8.0 µA/V VIN
