MAX6029 Ultra-Low-Power Precision Series Voltage Reference

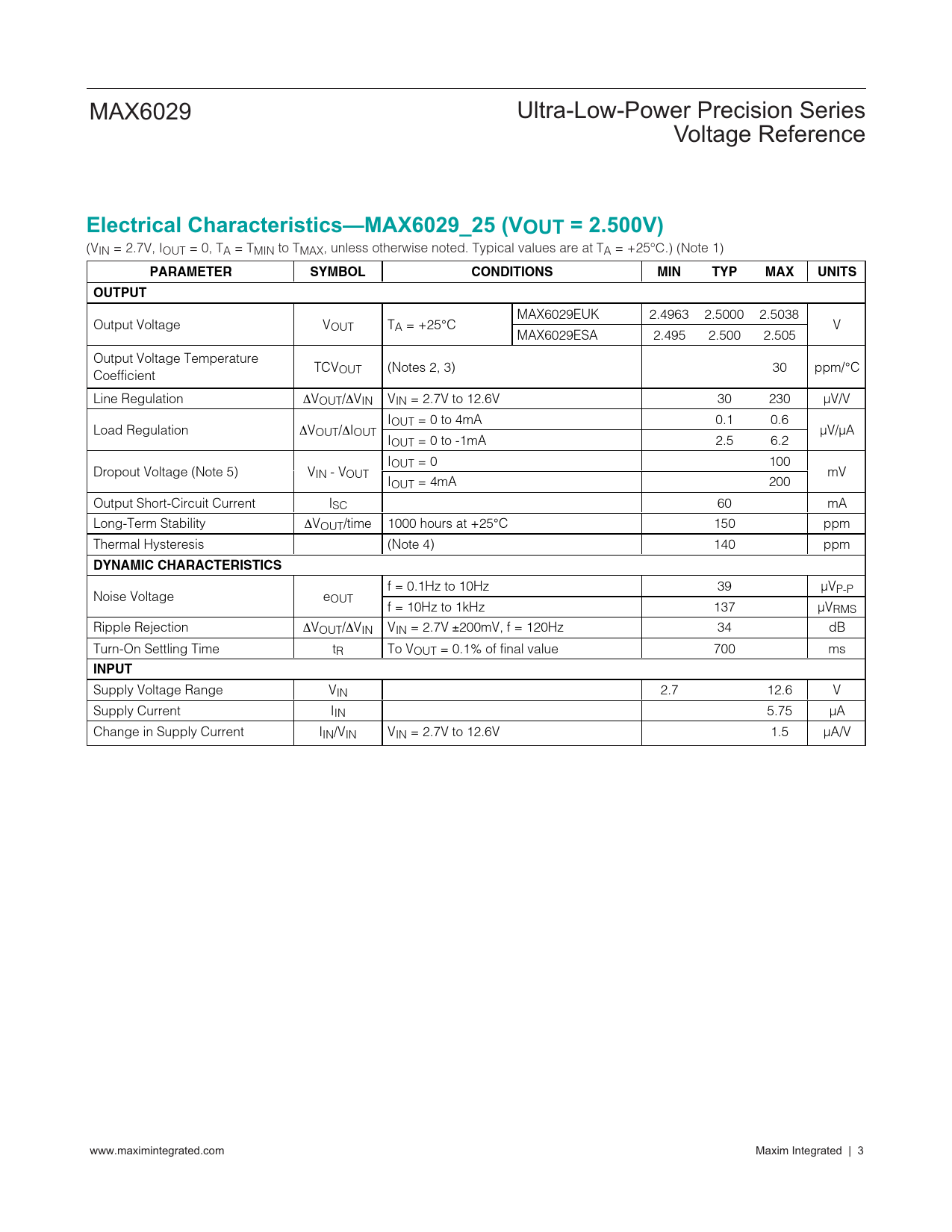

Electrical Characteristics—MAX6029_25 (VOUT = 2.500V)
(VIN = 2.7V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6029EUK 2.4963 2.5000 2.5038 Output Voltage VOUT TA = +25°C V MAX6029ESA 2.495 2.500 2.505 Output Voltage Temperature TCV Coefficient OUT (Notes 2, 3) 30 ppm/°C Line Regulation ΔVOUT/ΔVIN VIN = 2.7V to 12.6V 30 230 µV/V IOUT = 0 to 4mA 0.1 0.6 Load Regulation ΔVOUT/ΔIOUT µV/µA IOUT = 0 to -1mA 2.5 6.2 IOUT = 0 100 Dropout Voltage (Note 5) VIN - VOUT mV IOUT = 4mA 200 Output Short-Circuit Current ISC 60 mA Long-Term Stability ΔVOUT/time 1000 hours at +25°C 150 ppm Thermal Hysteresis (Note 4) 140 ppm
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 39 µVP-P Noise Voltage eOUT f = 10Hz to 1kHz 137 µVRMS Ripple Rejection ΔVOUT/ΔVIN VIN = 2.7V ±200mV, f = 120Hz 34 dB Turn-On Settling Time tR To VOUT = 0.1% of final value 700 ms
INPUT
Supply Voltage Range VIN 2.7 12.6 V Supply Current IIN 5.75 µA Change in Supply Current IIN/VIN VIN = 2.7V to 12.6V 1.5 µA/V www.maximintegrated.com Maxim Integrated | 3
Electrical Characteristics—MAX6029_25 (VOUT = 2.500V)
(VIN = 2.7V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6029EUK 2.4963 2.5000 2.5038 Output Voltage VOUT TA = +25°C V MAX6029ESA 2.495 2.500 2.505 Output Voltage Temperature TCV Coefficient OUT (Notes 2, 3) 30 ppm/°C Line Regulation ΔVOUT/ΔVIN VIN = 2.7V to 12.6V 30 230 µV/V IOUT = 0 to 4mA 0.1 0.6 Load Regulation ΔVOUT/ΔIOUT µV/µA IOUT = 0 to -1mA 2.5 6.2 IOUT = 0 100 Dropout Voltage (Note 5) VIN - VOUT mV IOUT = 4mA 200 Output Short-Circuit Current ISC 60 mA Long-Term Stability ΔVOUT/time 1000 hours at +25°C 150 ppm Thermal Hysteresis (Note 4) 140 ppm
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 39 µVP-P Noise Voltage eOUT f = 10Hz to 1kHz 137 µVRMS Ripple Rejection ΔVOUT/ΔVIN VIN = 2.7V ±200mV, f = 120Hz 34 dB Turn-On Settling Time tR To VOUT = 0.1% of final value 700 ms
INPUT
Supply Voltage Range VIN 2.7 12.6 V Supply Current IIN 5.75 µA Change in Supply Current IIN/VIN VIN = 2.7V to 12.6V 1.5 µA/V www.maximintegrated.com Maxim Integrated | 3
