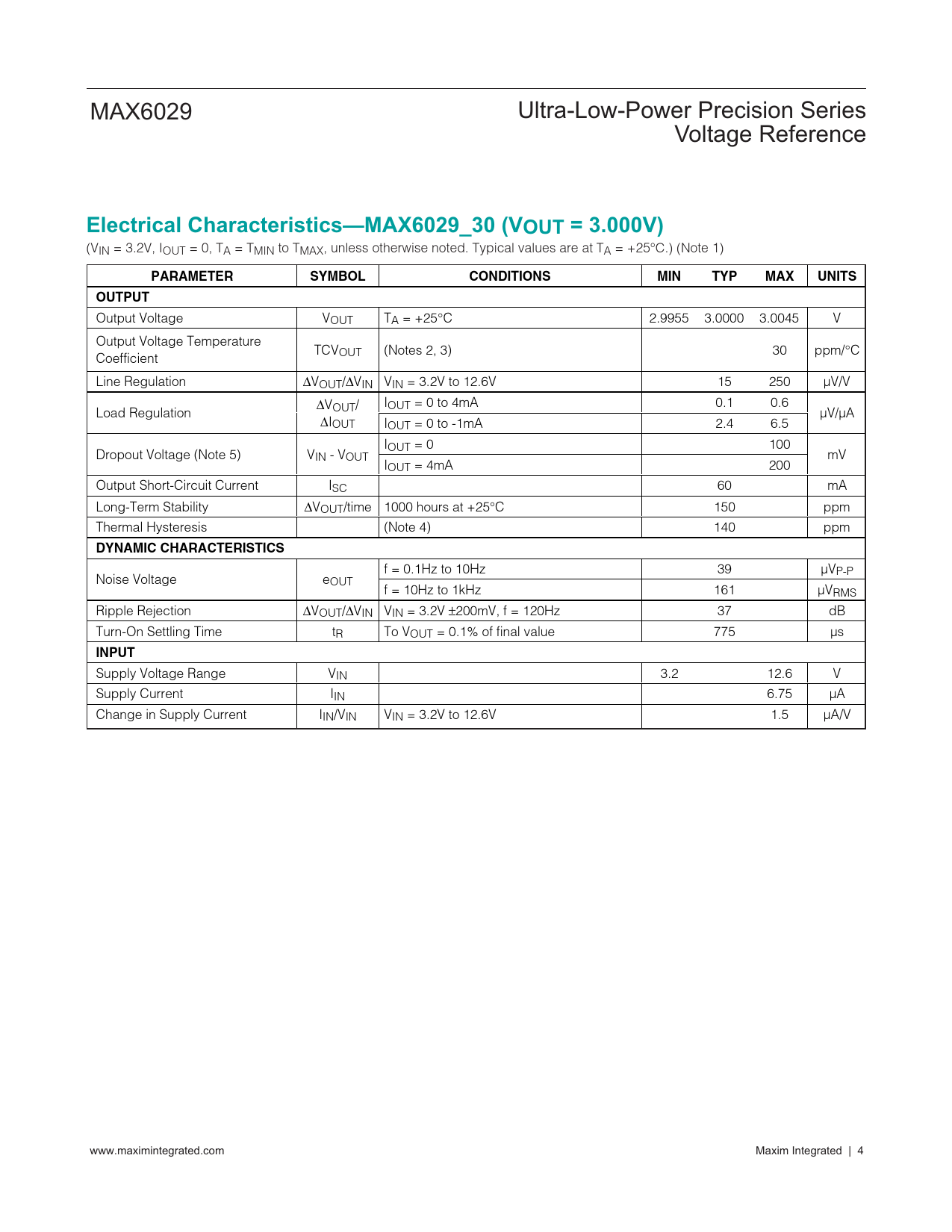

MAX6029 Ultra-Low-Power Precision Series Voltage Reference
Electrical Characteristics—MAX6029_30 (VOUT = 3.000V)
(VIN = 3.2V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage VOUT TA = +25°C 2.9955 3.0000 3.0045 V Output Voltage Temperature TCVOUT (Notes 2, 3) 30 ppm/°C Coefficient Line Regulation ΔVOUT/ΔVIN VIN = 3.2V to 12.6V 15 250 µV/V I ΔV OUT = 0 to 4mA 0.1 0.6 Load Regulation OUT/ Δ µV/µA IOUT IOUT = 0 to -1mA 2.4 6.5 IOUT = 0 100 Dropout Voltage (Note 5) VIN - VOUT mV IOUT = 4mA 200 Output Short-Circuit Current ISC 60 mA Long-Term Stability ΔVOUT/time 1000 hours at +25°C 150 ppm Thermal Hysteresis (Note 4) 140 ppm
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 39 µVP-P Noise Voltage eOUT f = 10Hz to 1kHz 161 µVRMS Ripple Rejection ΔVOUT/ΔVIN VIN = 3.2V ±200mV, f = 120Hz 37 dB Turn-On Settling Time tR To VOUT = 0.1% of final value 775 µs
INPUT
Supply Voltage Range VIN 3.2 12.6 V Supply Current IIN 6.75 µA Change in Supply Current IIN/VIN VIN = 3.2V to 12.6V 1.5 µA/V www.maximintegrated.com Maxim Integrated | 4
