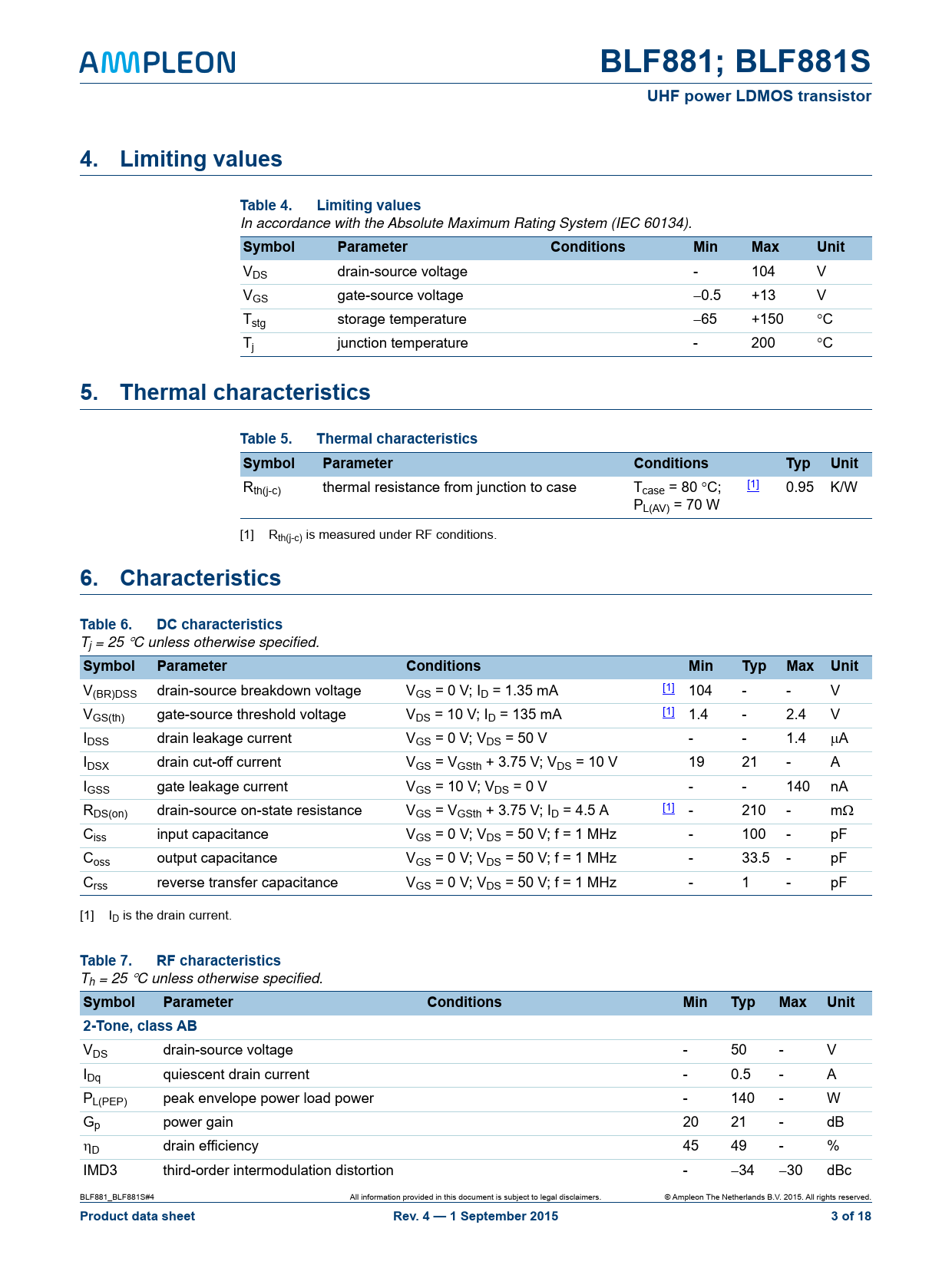

BLF881; BLF881S UHF power LDMOS transistor 4. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage - 104 V VGS gate-source voltage 0.5 +13 V Tstg storage temperature 65 +150 C Tj junction temperature - 200 C
5. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Typ Unit
R [1] th(j-c) thermal resistance from junction to case Tcase = 80 C; 0.95 K/W PL(AV) = 70 W [1] Rth(j-c) is measured under RF conditions.
6. Characteristics Table 6. DC characteristics
Tj = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
V(BR)DSS drain-source breakdown voltage VGS = 0 V; ID = 1.35 mA [1] 104 - - V VGS(th) gate-source threshold voltage VDS = 10 V; ID = 135 mA [1] 1.4 - 2.4 V IDSS drain leakage current VGS = 0 V; VDS = 50 V - - 1.4 A IDSX drain cut-off current VGS = VGSth + 3.75 V; VDS = 10 V 19 21 - A IGSS gate leakage current VGS = 10 V; VDS = 0 V - - 140 nA RDS(on) drain-source on-state resistance VGS = VGSth + 3.75 V; ID = 4.5 A [1] - 210 - m Ciss input capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 100 - pF Coss output capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 33.5 - pF Crss reverse transfer capacitance VGS = 0 V; VDS = 50 V; f = 1 MHz - 1 - pF [1] ID is the drain current.
Table 7. RF characteristics
Th = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit 2-Tone, class AB
VDS drain-source voltage - 50 - V IDq quiescent drain current - 0.5 - A PL(PEP) peak envelope power load power - 140 - W Gp power gain 20 21 - dB D drain efficiency 45 49 - % IMD3 third-order intermodulation distortion - 34 30 dBc BLF881_BLF881S#4 All information provided in this document is subject to legal disclaimers. © Ampleon The Netherlands B.V. 2015. All rights reserved.
Product data sheet Rev. 4 — 1 September 2015 3 of 18
