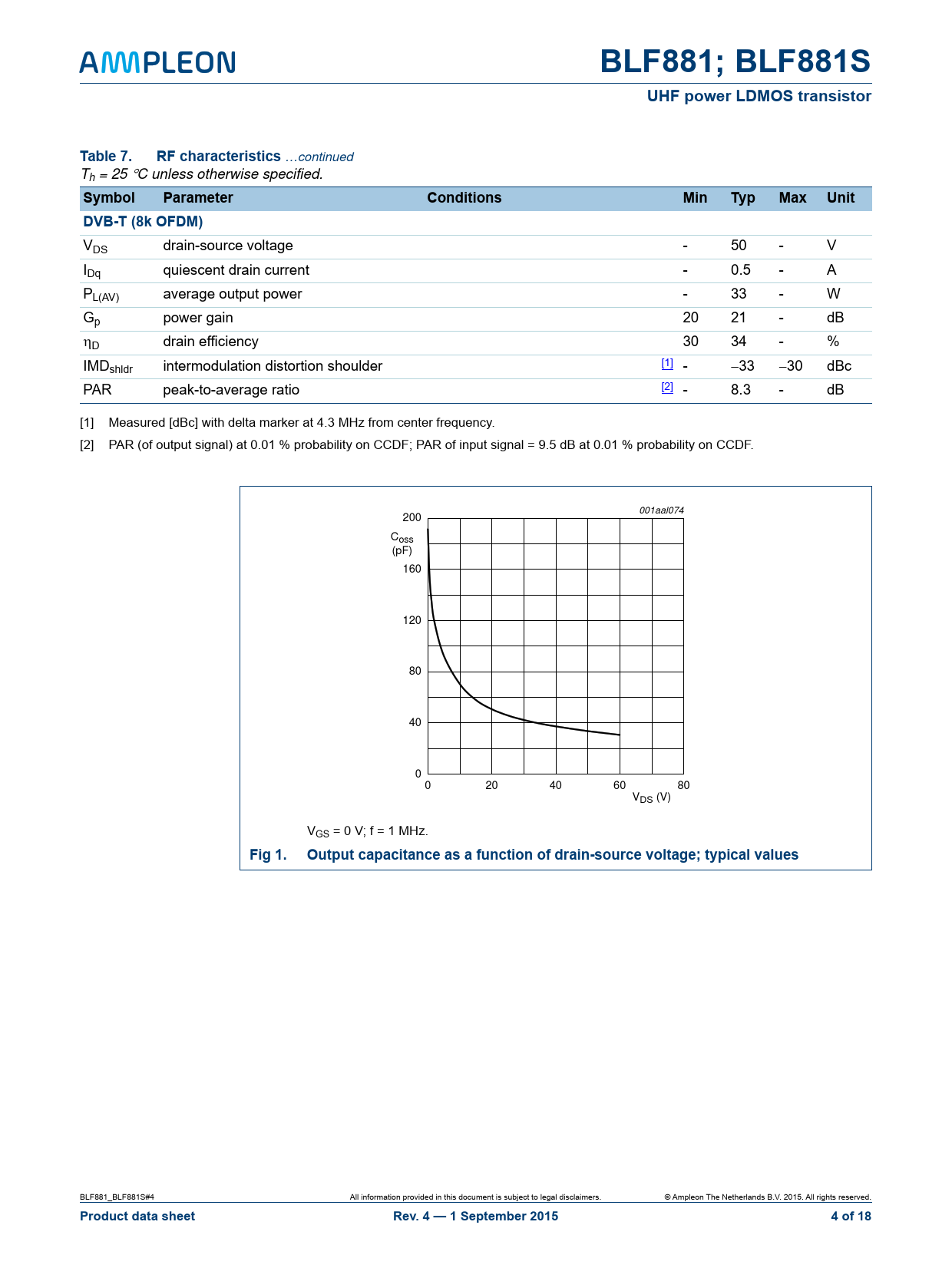

BLF881; BLF881S UHF power LDMOS transistor Table 7. RF characteristics
…continued Th = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit DVB-T (8k OFDM)
VDS drain-source voltage - 50 - V IDq quiescent drain current - 0.5 - A PL(AV) average output power - 33 - W Gp power gain 20 21 - dB D drain efficiency 30 34 - % IMDshldr intermodulation distortion shoulder [1] - 33 30 dBc PAR peak-to-average ratio [2] - 8.3 - dB [1] Measured [dBc] with delta marker at 4.3 MHz from center frequency. [2] PAR (of output signal) at 0.01 % probability on CCDF; PAR of input signal = 9.5 dB at 0.01 % probability on CCDF. 001aal074 200 Coss (pF) 160 120 80 40 0 0 20 40 60 80 VDS (V) VGS = 0 V; f = 1 MHz.
Fig 1. Output capacitance as a function of drain-source voltage; typical values
BLF881_BLF881S#4 All information provided in this document is subject to legal disclaimers. © Ampleon The Netherlands B.V. 2015. All rights reserved.
Product data sheet Rev. 4 — 1 September 2015 4 of 18
