AD8129/AD8130. AD8129/AD8130 SPECIFICATIONS 5 V SPECIFICATIONS. Table 1. Model. AD8129 AD8130. Parameter. Conditions

AD8129/AD8130 AD8129/AD8130 SPECIFICATIONS 5 V SPECIFICATIONS Table 1 Model AD8129 AD8130 Parameter Conditions

该数据表的模型线

文件文字版本

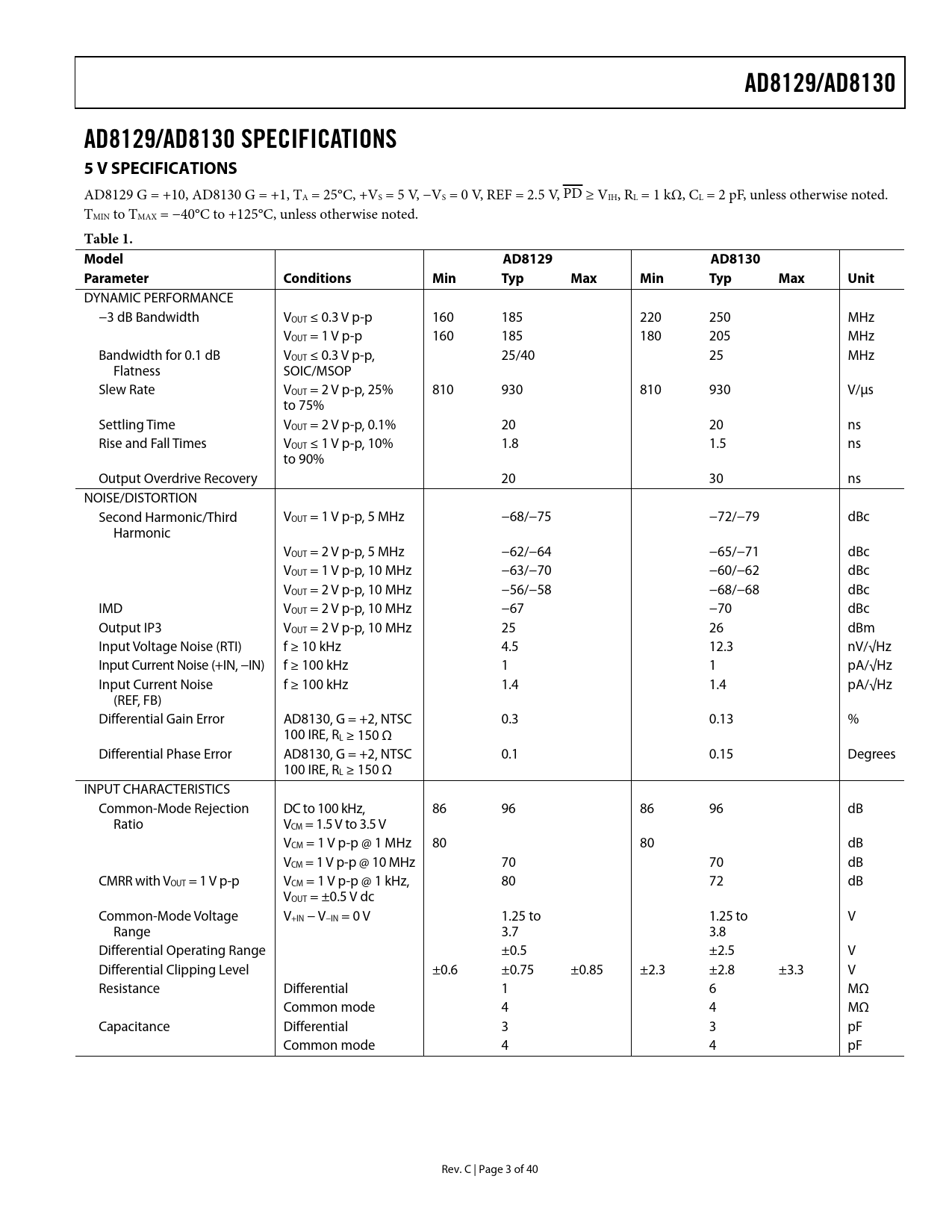

AD8129/AD8130 AD8129/AD8130 SPECIFICATIONS 5 V SPECIFICATIONS
AD8129 G = +10, AD8130 G = +1, TA = 25°C, +VS = 5 V, −VS = 0 V, REF = 2.5 V, PD ≥ VIH, RL = 1 kΩ, CL = 2 pF, unless otherwise noted. TMIN to TMAX = −40°C to +125°C, unless otherwise noted.
Table 1. Model AD8129 AD8130 Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth VOUT ≤ 0.3 V p-p 160 185 220 250 MHz VOUT = 1 V p-p 160 185 180 205 MHz Bandwidth for 0.1 dB VOUT ≤ 0.3 V p-p, 25/40 25 MHz Flatness SOIC/MSOP Slew Rate VOUT = 2 V p-p, 25% 810 930 810 930 V/μs to 75% Settling Time VOUT = 2 V p-p, 0.1% 20 20 ns Rise and Fall Times VOUT ≤ 1 V p-p, 10% 1.8 1.5 ns to 90% Output Overdrive Recovery 20 30 ns NOISE/DISTORTION Second Harmonic/Third VOUT = 1 V p-p, 5 MHz −68/−75 −72/−79 dBc Harmonic VOUT = 2 V p-p, 5 MHz −62/−64 −65/−71 dBc VOUT = 1 V p-p, 10 MHz −63/−70 −60/−62 dBc VOUT = 2 V p-p, 10 MHz −56/−58 −68/−68 dBc IMD VOUT = 2 V p-p, 10 MHz −67 −70 dBc Output IP3 VOUT = 2 V p-p, 10 MHz 25 26 dBm Input Voltage Noise (RTI) f ≥ 10 kHz 4.5 12.3 nV/√Hz Input Current Noise (+IN, −IN) f ≥ 100 kHz 1 1 pA/√Hz Input Current Noise f ≥ 100 kHz 1.4 1.4 pA/√Hz (REF, FB) Differential Gain Error AD8130, G = +2, NTSC 0.3 0.13 % 100 IRE, RL ≥ 150 Ω Differential Phase Error AD8130, G = +2, NTSC 0.1 0.15 Degrees 100 IRE, RL ≥ 150 Ω INPUT CHARACTERISTICS Common-Mode Rejection DC to 100 kHz, 86 96 86 96 dB Ratio VCM = 1.5 V to 3.5 V VCM = 1 V p-p @ 1 MHz 80 80 dB VCM = 1 V p-p @ 10 MHz 70 70 dB CMRR with VOUT = 1 V p-p VCM = 1 V p-p @ 1 kHz, 80 72 dB VOUT = ±0.5 V dc Common-Mode Voltage V+IN − V−IN = 0 V 1.25 to 1.25 to V Range 3.7 3.8 Differential Operating Range ±0.5 ±2.5 V Differential Clipping Level ±0.6 ±0.75 ±0.85 ±2.3 ±2.8 ±3.3 V Resistance Differential 1 6 MΩ Common mode 4 4 MΩ Capacitance Differential 3 3 pF Common mode 4 4 pF Rev. C | Page 3 of 40 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY AD8129/AD8130 SPECIFICATIONS 5 V SPECIFICATIONS ±5 V SPECIFICATIONS ±12 V SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS AD8130 FREQUENCY RESPONSE CHARACTERISTICS AD8129 FREQUENCY RESPONSE CHARACTERISTICS AD8130 HARMONIC DISTORTION CHARACTERISTICS AD8129 HARMONIC DISTORTION CHARACTERISTICS AD8130 TRANSIENT RESPONSE CHARACTERISTICS AD8129 TRANSIENT RESPONSE CHARACTERISTICS THEORY OF OPERATION OP AMP CONFIGURATION APPLICATIONS BASIC GAIN CIRCUITS TWISTED-PAIR CABLE, COMPOSITE VIDEO RECEIVER WITH EQUALIZATION USING AN AD8130 OUTPUT OFFSET/LEVEL TRANSLATOR RESISTORLESS GAIN OF 2 SUMMER CABLE-TAP AMPLIFIER POWER-DOWN EXTREME OPERATING CONDITIONS POWER DISSIPATION LAYOUT, GROUNDING, AND BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
