NXP Semiconductors. BAV99 series. High-speed switching diodes. 2. Pinning. information. Table 3. Pinning. Pin. Description
该数据表的模型线
文件文字版本
link to page 2

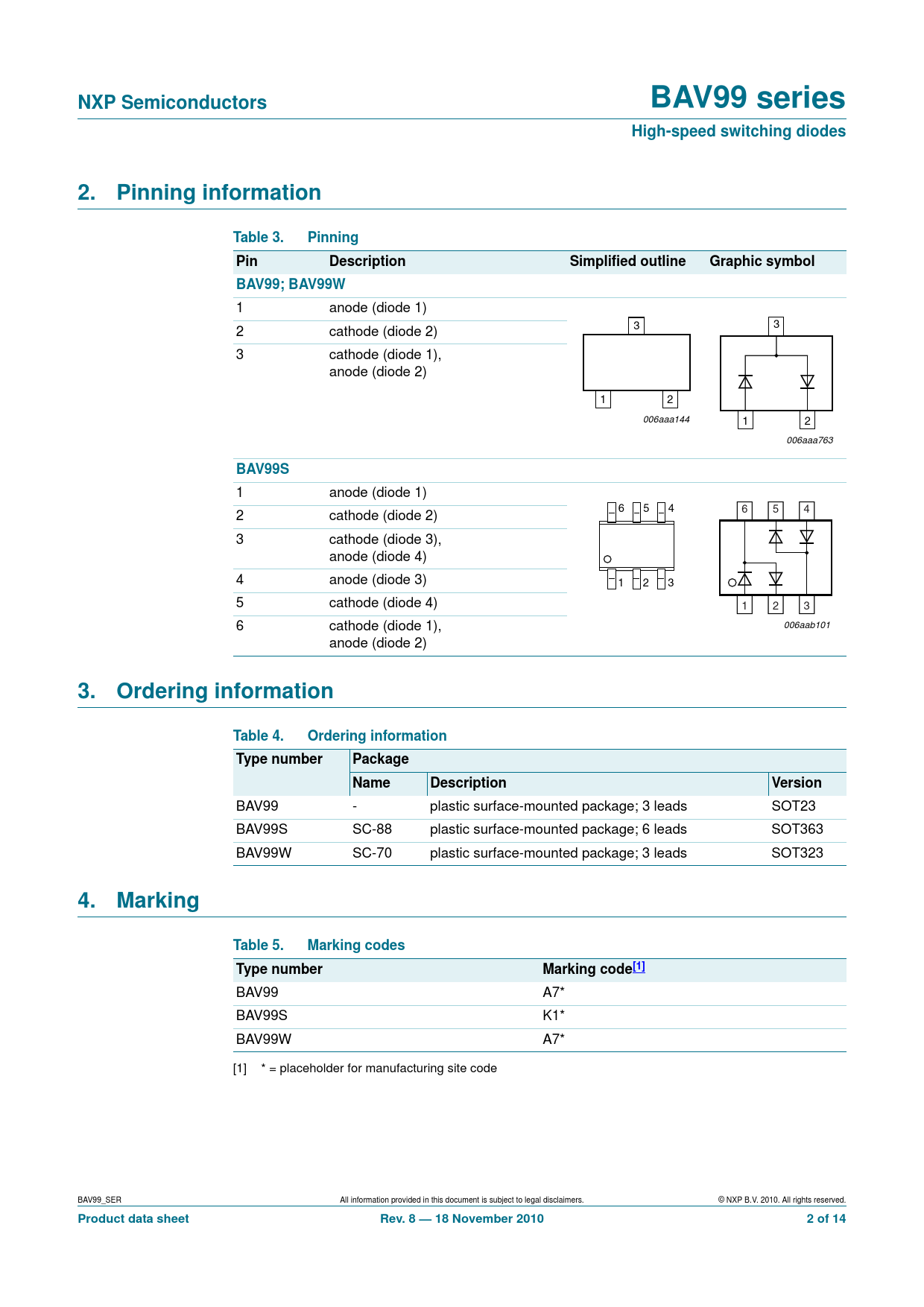

NXP Semiconductors BAV99 series High-speed switching diodes 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol BAV99; BAV99W
1 anode (diode 1) 3 2 cathode (diode 2) 3 3 cathode (diode 1), anode (diode 2) 1 2 006aaa144 1 2 006aaa763
BAV99S
1 anode (diode 1) 6 5 4 6 5 4 2 cathode (diode 2) 3 cathode (diode 3), anode (diode 4) 4 anode (diode 3) 1 2 3 5 cathode (diode 4) 1 2 3 6 cathode (diode 1), 006aab101 anode (diode 2)
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
BAV99 - plastic surface-mounted package; 3 leads SOT23 BAV99S SC-88 plastic surface-mounted package; 6 leads SOT363 BAV99W SC-70 plastic surface-mounted package; 3 leads SOT323
4. Marking Table 5. Marking codes Type number Marking code[1]
BAV99 A7* BAV99S K1* BAV99W A7* [1] * = placeholder for manufacturing site code BAV99_SER All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Product data sheet Rev. 8 — 18 November 2010 2 of 14
