NXP Semiconductors. 74HC4053; 74HCT4053. Triple 2-channel analog multiplexer/demultiplexer. 10. Static characteristics. Table 6
该数据表的模型线
文件文字版本
link to page 9 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8

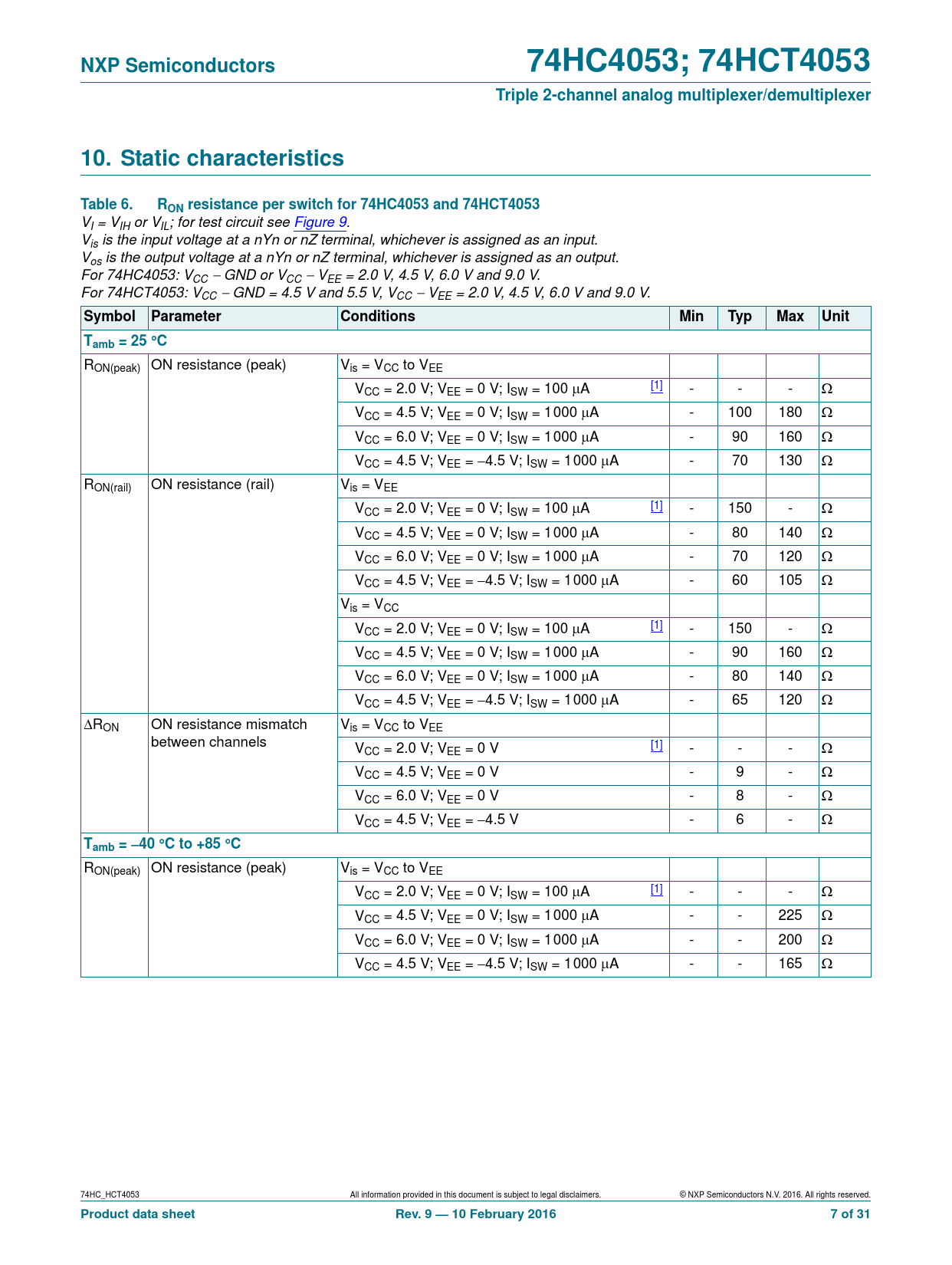

NXP Semiconductors 74HC4053; 74HCT4053 Triple 2-channel analog multiplexer/demultiplexer 10. Static characteristics Table 6. RON resistance per switch for 74HC4053 and 74HCT4053
VI = VIH or VIL; for test circuit see Figure 9. Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input. Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output. For 74HC4053: V CC GND or VCC VEE = 2.0 V, 4.5 V, 6.0 V and 9.0 V. For 74HCT4053: V CC GND = 4.5 V and 5.5 V, VCC VEE = 2.0 V, 4.5 V, 6.0 V and 9.0 V.
Symbol Parameter Conditions Min Typ Max Unit Tamb = 25 C
RON(peak) ON resistance (peak) Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 A [1] - - - VCC = 4.5 V; VEE = 0 V; ISW = 1000 A - 100 180 VCC = 6.0 V; VEE = 0 V; ISW = 1000 A - 90 160 VCC = 4.5 V; VEE = 4.5 V; ISW = 1000 A - 70 130 RON(rail) ON resistance (rail) Vis = VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 A [1] - 150 - VCC = 4.5 V; VEE = 0 V; ISW = 1000 A - 80 140 VCC = 6.0 V; VEE = 0 V; ISW = 1000 A - 70 120 VCC = 4.5 V; VEE = 4.5 V; ISW = 1000 A - 60 105 Vis = VCC VCC = 2.0 V; VEE = 0 V; ISW = 100 A [1] - 150 - VCC = 4.5 V; VEE = 0 V; ISW = 1000 A - 90 160 VCC = 6.0 V; VEE = 0 V; ISW = 1000 A - 80 140 VCC = 4.5 V; VEE = 4.5 V; ISW = 1000 A - 65 120 RON ON resistance mismatch Vis = VCC to VEE between channels VCC = 2.0 V; VEE = 0 V [1] - - - VCC = 4.5 V; VEE = 0 V - 9 - VCC = 6.0 V; VEE = 0 V - 8 - VCC = 4.5 V; VEE = 4.5 V - 6 -
Tamb =
40 C to +85 C
RON(peak) ON resistance (peak) Vis = VCC to VEE VCC = 2.0 V; VEE = 0 V; ISW = 100 A [1] - - - VCC = 4.5 V; VEE = 0 V; ISW = 1000 A - - 225 VCC = 6.0 V; VEE = 0 V; ISW = 1000 A - - 200 VCC = 4.5 V; VEE = 4.5 V; ISW = 1000 A - - 165 74HC_HCT4053 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved.
Product data sheet Rev. 9 — 10 February 2016 7 of 31
