Datasheet AD8422 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | High Performance, Low Power, Rail-to-Rail Precision Instrumentation Amplifier |
| 页数 / 页 | 24 / 5 — Data Sheet. AD8422. Test Conditions/. AD8422ARZ. AD8422BRZ. Parameter. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 655 Kb |
| 文件语言 | 英语 |
Data Sheet. AD8422. Test Conditions/. AD8422ARZ. AD8422BRZ. Parameter. Comments. Min. Typ. Max. Unit. MSOP PACKAGE. Table 2. AD8422ARMZ. AD8422BRMZ
该数据表的模型线
文件文字版本
link to page 14 link to page 10 link to page 7 link to page 7

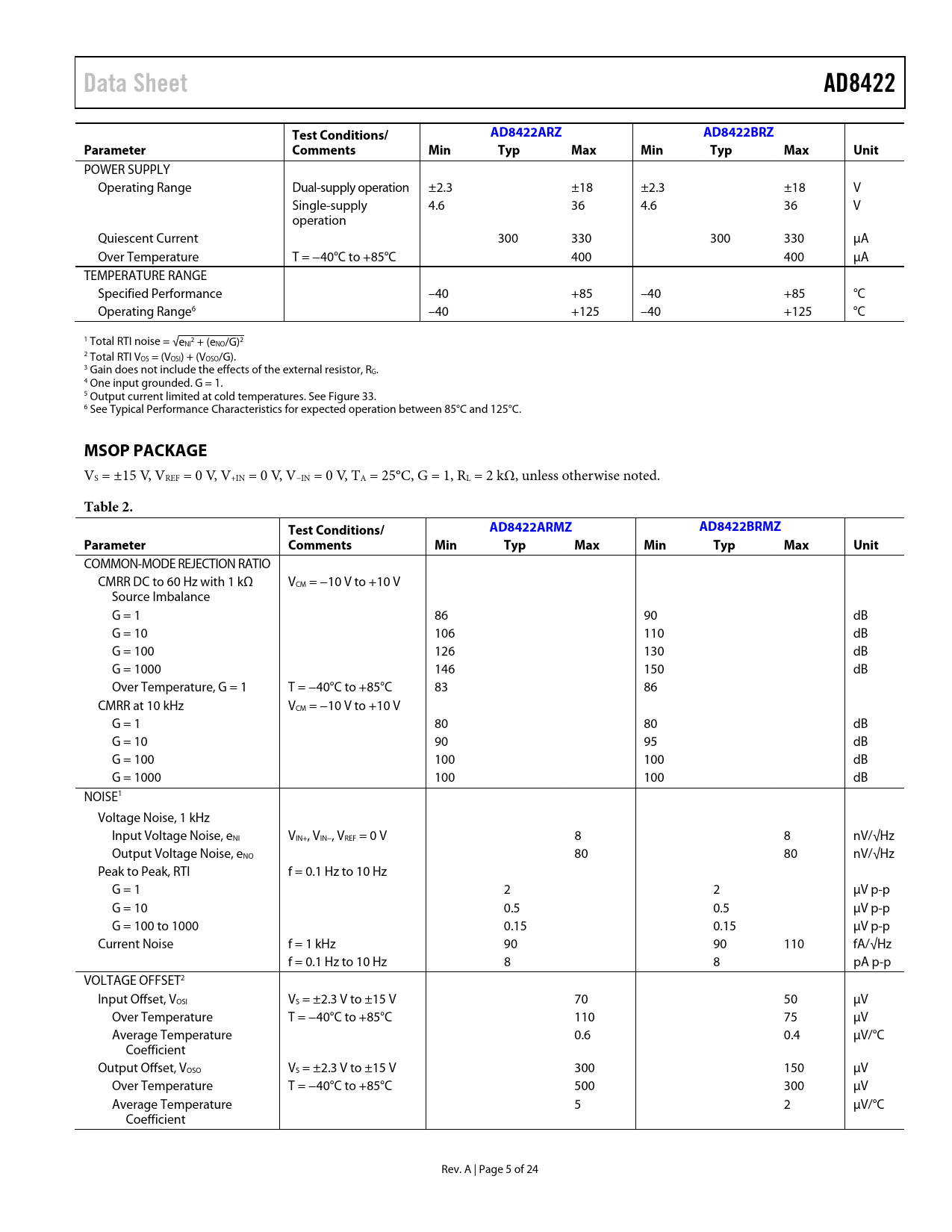

Data Sheet AD8422 Test Conditions/ AD8422ARZ AD8422BRZ Parameter Comments Min Typ Max Min Typ Max Unit
POWER SUPPLY Operating Range Dual-supply operation ±2.3 ±18 ±2.3 ±18 V Single-supply 4.6 36 4.6 36 V operation Quiescent Current 300 330 300 330 µA Over Temperature T = −40°C to +85°C 400 400 µA TEMPERATURE RANGE Specified Performance –40 +85 –40 +85 °C Operating Range6 –40 +125 –40 +125 °C 1 Total RTI noise = √e 2 NI + (eNO/G)2 2 Total RTI VOS = (VOSI) + (VOSO/G). 3 Gain does not include the effects of the external resistor, RG. 4 One input grounded. G = 1. 5 Output current limited at cold temperatures. See Figure 33. 6 See Typical Performance Characteristics for expected operation between 85°C and 125°C.
MSOP PACKAGE
VS = ±15 V, VREF = 0 V, V+IN = 0 V, V−IN = 0 V, TA = 25°C, G = 1, RL = 2 kΩ, unless otherwise noted.
Table 2. Test Conditions/ AD8422ARMZ AD8422BRMZ Parameter Comments Min Typ Max Min Typ Max Unit
COMMON-MODE REJECTION RATIO CMRR DC to 60 Hz with 1 kΩ VCM = −10 V to +10 V Source Imbalance G = 1 86 90 dB G = 10 106 110 dB G = 100 126 130 dB G = 1000 146 150 dB Over Temperature, G = 1 T = −40°C to +85°C 83 86 CMRR at 10 kHz VCM = −10 V to +10 V G = 1 80 80 dB G = 10 90 95 dB G = 100 100 100 dB G = 1000 100 100 dB NOISE1 Voltage Noise, 1 kHz Input Voltage Noise, eNI VIN+, VIN−, VREF = 0 V 8 8 nV/√Hz Output Voltage Noise, eNO 80 80 nV/√Hz Peak to Peak, RTI f = 0.1 Hz to 10 Hz G = 1 2 2 µV p-p G = 10 0.5 0.5 µV p-p G = 100 to 1000 0.15 0.15 µV p-p Current Noise f = 1 kHz 90 90 110 fA/√Hz f = 0.1 Hz to 10 Hz 8 8 pA p-p VOLTAGE OFFSET2 Input Offset, VOSI VS = ±2.3 V to ±15 V 70 50 µV Over Temperature T = −40°C to +85°C 110 75 µV Average Temperature 0.6 0.4 µV/°C Coefficient Output Offset, VOSO VS = ±2.3 V to ±15 V 300 150 µV Over Temperature T = −40°C to +85°C 500 300 µV Average Temperature 5 2 µV/°C Coefficient Rev. A | Page 5 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SOIC PACKAGE MSOP PACKAGE ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE GAIN SELECTION RG Power Dissipation REFERENCE TERMINAL INPUT VOLTAGE RANGE LAYOUT Common-Mode Rejection Ratio over Frequency Power Supplies and Grounding Reference Pin INPUT BIAS CURRENT RETURN PATH INPUT VOLTAGES BEYOND THE SUPPLY RAILS Input Voltages Beyond the Maximum Ratings RADIO FREQUENCY INTERFERENCE (RFI) APPLICATIONS INFORMATION PRECISION BRIDGE CONDITIONING PROCESS CONTROL ANALOG INPUT OUTLINE DIMENSIONS ORDERING GUIDE
