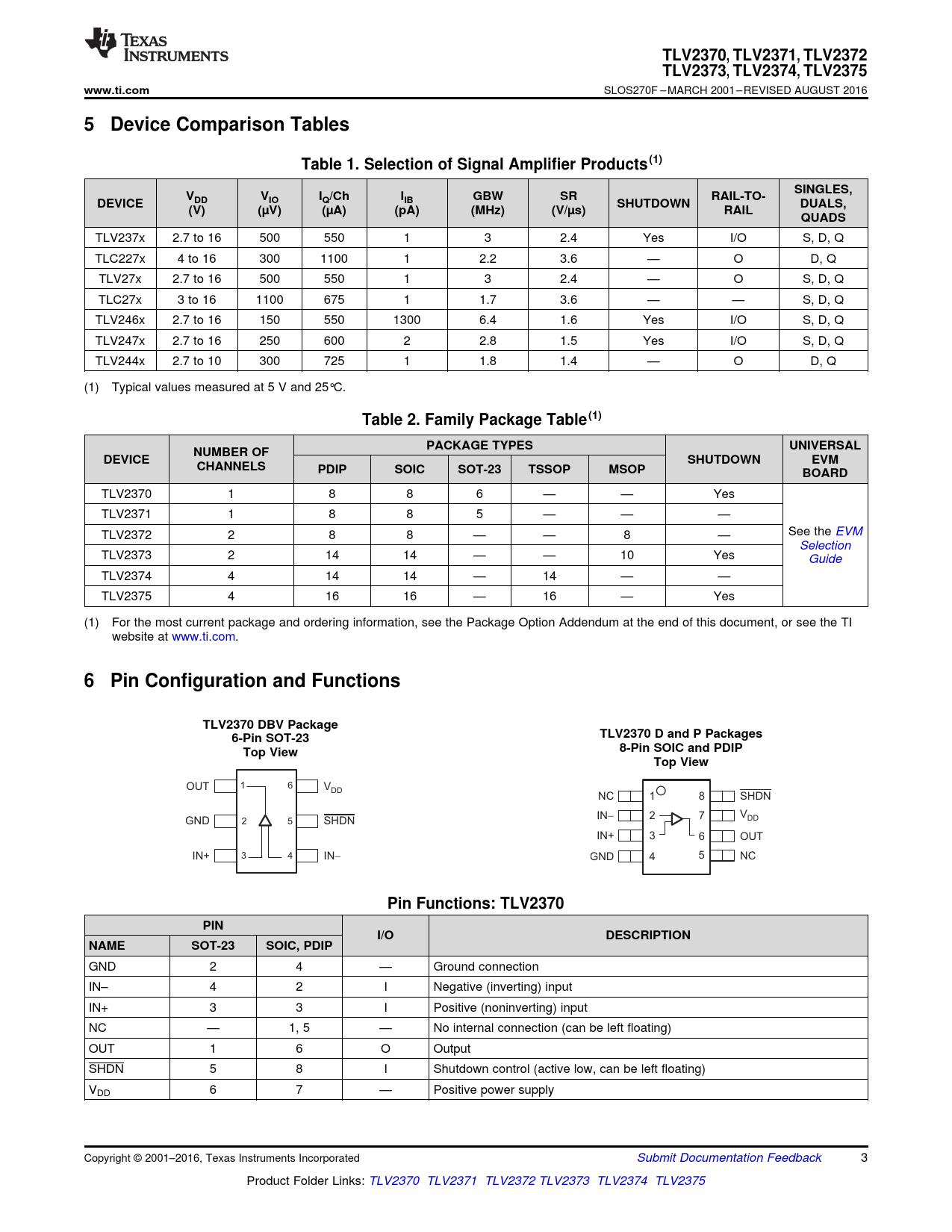

5 Device Comparison Tables Table 1. Selection of Signal Amplifier Products(1) SINGLES, V V I I GBW SR RAIL-TO- DEVICE DD IO Q/Ch IB SHUTDOWN DUALS, (V) (µV) (µA) (pA) (MHz) (V/µs) RAIL QUADS
TLV237x 2.7 to 16 500 550 1 3 2.4 Yes I/O S, D, Q TLC227x 4 to 16 300 1100 1 2.2 3.6 — O D, Q TLV27x 2.7 to 16 500 550 1 3 2.4 — O S, D, Q TLC27x 3 to 16 1100 675 1 1.7 3.6 — — S, D, Q TLV246x 2.7 to 16 150 550 1300 6.4 1.6 Yes I/O S, D, Q TLV247x 2.7 to 16 250 600 2 2.8 1.5 Yes I/O S, D, Q TLV244x 2.7 to 10 300 725 1 1.8 1.4 — O D, Q (1) Typical values measured at 5 V and 25°C.
Table 2. Family Package Table(1) PACKAGE TYPES UNIVERSAL NUMBER OF DEVICE SHUTDOWN EVM CHANNELS PDIP SOIC SOT-23 TSSOP MSOP BOARD
TLV2370 1 8 8 6 — — Yes TLV2371 1 8 8 5 — — — See the EVM TLV2372 2 8 8 — — 8 — Selection TLV2373 2 14 14 — — 10 Yes Guide TLV2374 4 14 14 — 14 — — TLV2375 4 16 16 — 16 — Yes (1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI website at www.ti.com.
6 Pin Configuration and Functions TLV2370 DBV Package 6-Pin SOT-23 TLV2370 D and P Packages Top View 8-Pin SOIC and PDIP Top View
1 6 OUT VDD NC 1 8 SHDN IN 2 7 VDD GND 2 5 SHDN - IN+ 3 6 OUT IN+ 3 4 IN GND 4 5 NC -
Pin Functions: TLV2370 PIN I/O DESCRIPTION NAME SOT-23 SOIC, PDIP
