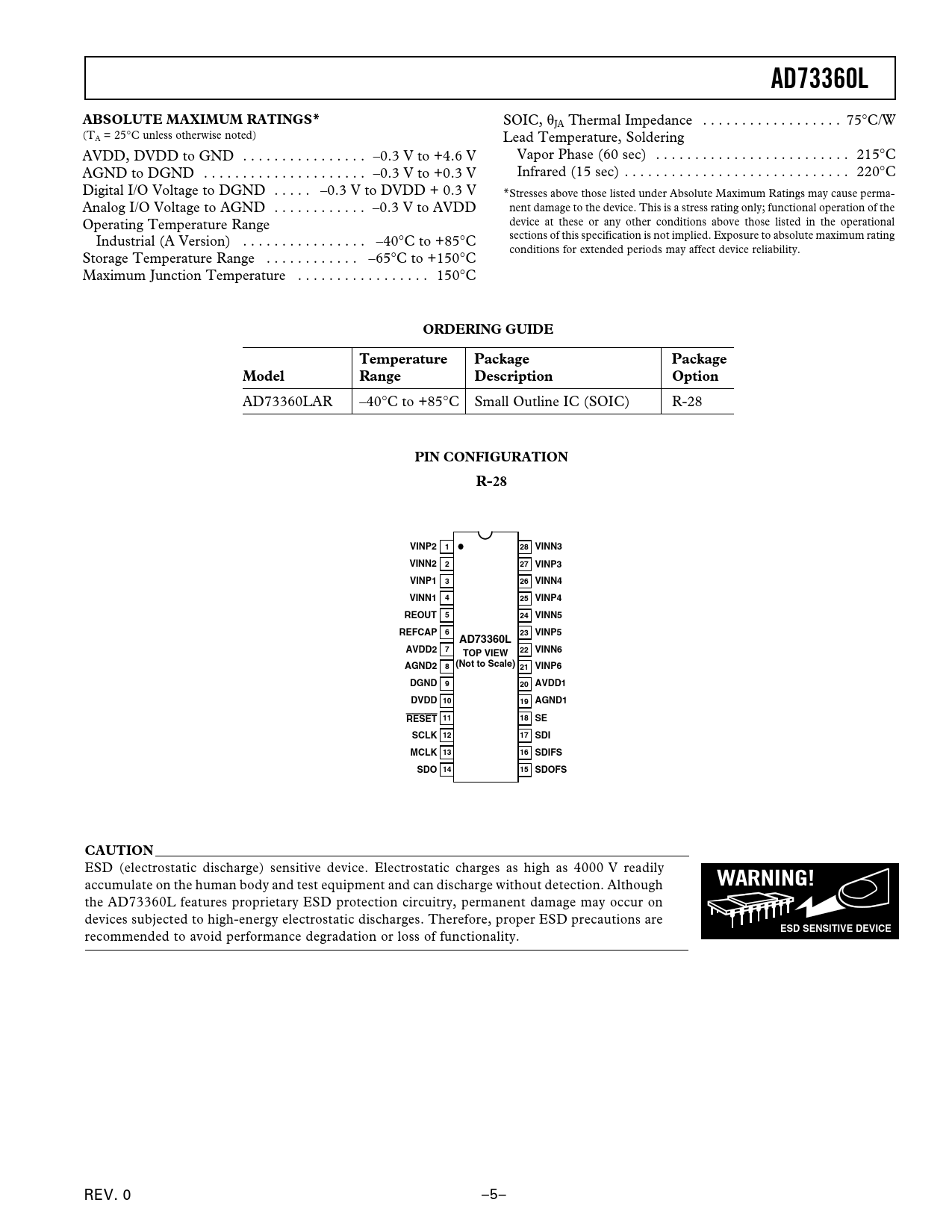

AD73360L. ABSOLUTE MAXIMUM RATINGS*. ORDERING GUIDE. Temperature. Package. Model. Range. Description. Option. PIN CONFIGURATION. R-28
该数据表的模型线
文件文字版本
AD73360L ABSOLUTE MAXIMUM RATINGS*
SOIC, θJA Thermal Impedance . 75°C/W (TA = 25°C unless otherwise noted) Lead Temperature, Soldering AVDD, DVDD to GND . –0.3 V to +4.6 V Vapor Phase (60 sec) . 215°C AGND to DGND . –0.3 V to +0.3 V Infrared (15 sec) . 220°C Digital I/O Voltage to DGND . –0.3 V to DVDD + 0.3 V *Stresses above those listed under Absolute Maximum Ratings may cause perma- Analog I/O Voltage to AGND . –0.3 V to AVDD nent damage to the device. This is a stress rating only; functional operation of the Operating Temperature Range device at these or any other conditions above those listed in the operational Industrial (A Version) . –40°C to +85°C sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Storage Temperature Range . –65°C to +150°C Maximum Junction Temperature . 150°C
ORDERING GUIDE Temperature Package Package Model Range Description Option
AD73360LAR –40°C to +85°C Small Outline IC (SOIC) R-28
PIN CONFIGURATION R-28 VINP2 1 28 VINN3 VINN2 2 27 VINP3 VINP1 3 26 VINN4 VINN1 4 25 VINP4 REOUT 5 24 VINN5 REFCAP 6 23 VINP5 AD73360L AVDD2 7 TOP VIEW 22 VINN6 (Not to Scale) AGND2 8 21 VINP6 DGND 9 20 AVDD1 DVDD 10 19 AGND1 RESET 11 18 SE SCLK 12 17 SDI MCLK 13 16 SDIFS SDO 14 15 SDOFS CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
WARNING!
accumulate on the human body and test equipment and can discharge without detection. Although the AD73360L features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. REV. 0 –5–
