Datasheet AD7853, AD7853L (Analog Devices) - 3

制造商Analog Devices
描述3 V to 5 V Single Supply, 200 kSPS, 12-Bit, Serial Sampling ADC
页数 / 页34 / 3 — AD7853/AD7853L. Parameter. A Version1. B Version1. Units. Test …
修订版B
文件格式/大小PDF / 359 Kb
文件语言英语

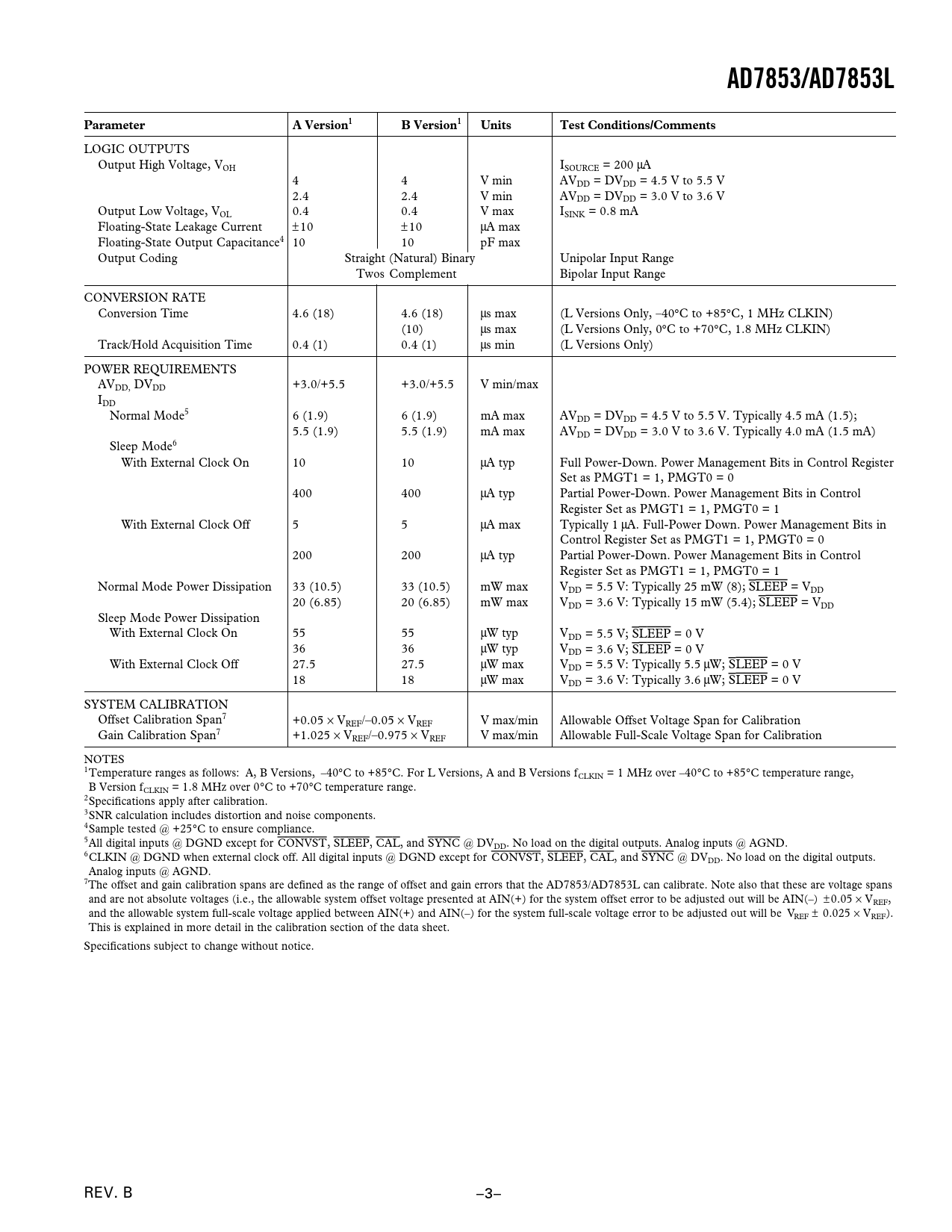

AD7853/AD7853L. Parameter. A Version1. B Version1. Units. Test Conditions/Comments

AD7853/AD7853L Parameter A Version1 B Version1 Units Test Conditions/Comments

该数据表的模型线

文件文字版本

AD7853/AD7853L Parameter A Version1 B Version1 Units Test Conditions/Comments
LOGIC OUTPUTS Output High Voltage, VOH ISOURCE = 200 µA 4 4 V min AVDD = DVDD = 4.5 V to 5.5 V 2.4 2.4 V min AVDD = DVDD = 3.0 V to 3.6 V Output Low Voltage, VOL 0.4 0.4 V max ISINK = 0.8 mA Floating-State Leakage Current ±10 ±10 µA max Floating-State Output Capacitance4 10 10 pF max Output Coding Straight (Natural) Binary Unipolar Input Range Twos Complement Bipolar Input Range CONVERSION RATE Conversion Time 4.6 (18) 4.6 (18) µs max (L Versions Only, –40°C to +85°C, 1 MHz CLKIN) (10) µs max (L Versions Only, 0°C to +70°C, 1.8 MHz CLKIN) Track/Hold Acquisition Time 0.4 (1) 0.4 (1) µs min (L Versions Only) POWER REQUIREMENTS AVDD, DVDD +3.0/+5.5 +3.0/+5.5 V min/max IDD Normal Mode5 6 (1.9) 6 (1.9) mA max AVDD = DVDD = 4.5 V to 5.5 V. Typically 4.5 mA (1.5); 5.5 (1.9) 5.5 (1.9) mA max AVDD = DVDD = 3.0 V to 3.6 V. Typically 4.0 mA (1.5 mA) Sleep Mode6 With External Clock On 10 10 µA typ Full Power-Down. Power Management Bits in Control Register Set as PMGT1 = 1, PMGT0 = 0 400 400 µA typ Partial Power-Down. Power Management Bits in Control Register Set as PMGT1 = 1, PMGT0 = 1 With External Clock Off 5 5 µA max Typically 1 µA. Full-Power Down. Power Management Bits in Control Register Set as PMGT1 = 1, PMGT0 = 0 200 200 µA typ Partial Power-Down. Power Management Bits in Control Register Set as PMGT1 = 1, PMGT0 = 1 Normal Mode Power Dissipation 33 (10.5) 33 (10.5) mW max VDD = 5.5 V: Typically 25 mW (8); SLEEP = VDD 20 (6.85) 20 (6.85) mW max VDD = 3.6 V: Typically 15 mW (5.4); SLEEP = VDD Sleep Mode Power Dissipation With External Clock On 55 55 µW typ VDD = 5.5 V; SLEEP = 0 V 36 36 µW typ VDD = 3.6 V; SLEEP = 0 V With External Clock Off 27.5 27.5 µW max VDD = 5.5 V: Typically 5.5 µW; SLEEP = 0 V 18 18 µW max VDD = 3.6 V: Typically 3.6 µW; SLEEP = 0 V SYSTEM CALIBRATION Offset Calibration Span7 +0.05 × VREF/–0.05 × VREF V max/min Allowable Offset Voltage Span for Calibration Gain Calibration Span7 +1.025 × VREF/–0.975 × VREF V max/min Allowable Full-Scale Voltage Span for Calibration NOTES 1Temperature ranges as follows: A, B Versions, –40°C to +85°C. For L Versions, A and B Versions fCLKIN = 1 MHz over –40°C to +85°C temperature range, B Version fCLKIN = 1.8 MHz over 0°C to +70°C temperature range. 2Specifications apply after calibration. 3SNR calculation includes distortion and noise components. 4Sample tested @ +25°C to ensure compliance. 5All digital inputs @ DGND except for CONVST, SLEEP, CAL, and SYNC @ DVDD. No load on the digital outputs. Analog inputs @ AGND. 6CLKIN @ DGND when external clock off. All digital inputs @ DGND except for CONVST, SLEEP, CAL, and SYNC @ DVDD. No load on the digital outputs. Analog inputs @ AGND. 7The offset and gain calibration spans are defined as the range of offset and gain errors that the AD7853/AD7853L can calibrate. Note also that these are voltage spans and are not absolute voltages (i.e., the allowable system offset voltage presented at AIN(+) for the system offset error to be adjusted out will be AIN(–) ± 0.05 × VREF, and the allowable system full-scale voltage applied between AIN(+) and AIN(–) for the system full-scale voltage error to be adjusted out will be VREF ± 0.025 × VREF). This is explained in more detail in the calibration section of the data sheet. Specifications subject to change without notice. REV. B –3–
