Datasheet DN2470 (Microchip) - 4
| 制造商 | Microchip |
| 描述 | N-Channel, Depletion-Mode, Vertical DMOS FET |
| 页数 / 页 | 11 / 4 — DN2470. TEMPERATURE SPECIFICATIONS. Electrical Specifications:. … |
| 文件格式/大小 | PDF / 493 Kb |
| 文件语言 | 英语 |

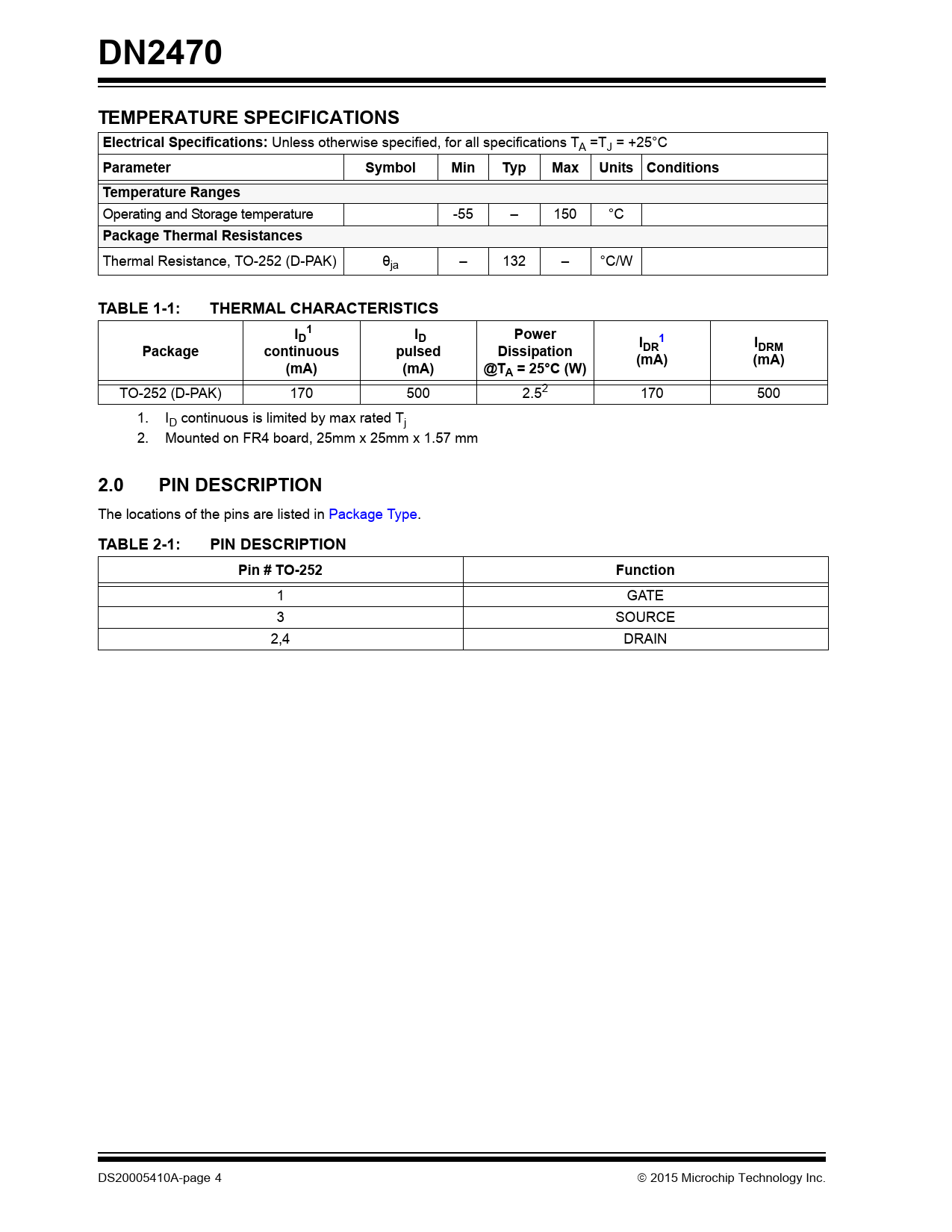

DN2470. TEMPERATURE SPECIFICATIONS. Electrical Specifications:. Parameter. Symbol. Min. Typ. Max. Units Conditions. Temperature Ranges
该数据表的模型线
文件文字版本
link to page 2 link to page 4
DN2470 TEMPERATURE SPECIFICATIONS Electrical Specifications:
Unless otherwise specified, for all specifications TA =TJ = +25°C
Parameter Symbol Min Typ Max Units Conditions Temperature Ranges
Operating and Storage temperature -55 – 150 °C
Package Thermal Resistances
Thermal Resistance, TO-252 (D-PAK) θja – 132 – °C/W
TABLE 1-1: THERMAL CHARACTERISTICS I 1 D ID Power I 1 I Package continuous pulsed Dissipation DR DRM (mA) (mA) (mA) (mA) @TA = 25°C (W)
TO-252 (D-PAK) 170 500 2.52 170 500 1. ID continuous is limited by max rated Tj 2. Mounted on FR4 board, 25mm x 25mm x 1.57 mm
2.0 PIN DESCRIPTION
The locations of the pins are listed in Package Type.
TABLE 2-1: PIN DESCRIPTION Pin # TO-252 Function
1 GATE 3 SOURCE 2,4 DRAIN DS20005410A-page 4 2015 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics TABLE 1-1: Thermal characteristics 2.0 Pin Description TABLE 2-1: Pin Description 3.0 Application Information FIGURE 3-1: Switching Waveforms and Test Circuit 4.0 Packaging Information 4.1 Package Marking Information AMERICAS Corporate Office Atlanta Austin, TX Boston Chicago Cleveland Dallas Detroit Houston, TX Indianapolis Los Angeles New York, NY San Jose, CA Canada - Toronto ASIA/PACIFIC Asia Pacific Office Hong Kong Australia - Sydney China - Beijing China - Chengdu China - Chongqing China - Dongguan China - Hangzhou China - Hong Kong SAR China - Nanjing China - Qingdao China - Shanghai China - Shenyang China - Shenzhen China - Wuhan China - Xian ASIA/PACIFIC China - Xiamen China - Zhuhai India - Bangalore India - New Delhi India - Pune Japan - Osaka Japan - Tokyo Korea - Daegu Korea - Seoul Malaysia - Kuala Lumpur Malaysia - Penang Philippines - Manila Singapore Taiwan - Hsin Chu Taiwan - Kaohsiung Taiwan - Taipei Thailand - Bangkok EUROPE Austria - Wels Denmark - Copenhagen France - Paris Germany - Dusseldorf Germany - Karlsruhe Germany - Munich Italy - Milan Italy - Venice Netherlands - Drunen Poland - Warsaw Spain - Madrid Sweden - Stockholm UK - Wokingham
