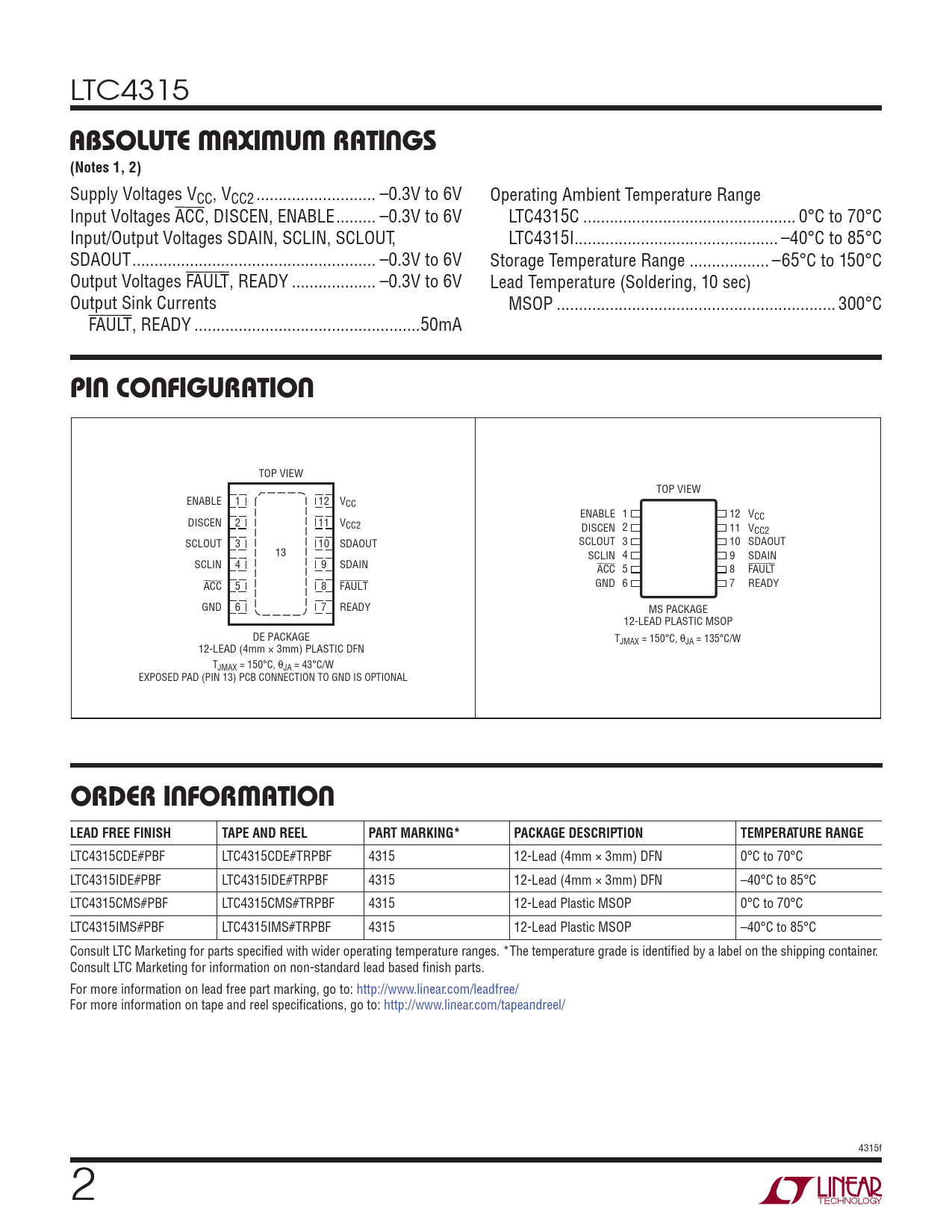

LTC4315
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltages VCC, VCC2 ... –0.3V to 6V Operating Ambient Temperature Range Input Voltages ACC, DISCEN, ENABLE ... –0.3V to 6V LTC4315C .. 0°C to 70°C Input/Output Voltages SDAIN, SCLIN, SCLOUT, LTC4315I.. –40°C to 85°C SDAOUT ... –0.3V to 6V Storage Temperature Range .. –65°C to 150°C Output Voltages FAULT, READY ... –0.3V to 6V Lead Temperature (Soldering, 10 sec) Output Sink Currents MSOP ... 300°C FAULT, READY ...50mA
PIN CONFIGURATION
TOP VIEW TOP VIEW ENABLE 1 12 VCC ENABLE 1 12 VCC DISCEN 2 11 VCC2 DISCEN 2 11 VCC2 SCLOUT 3 10 SDAOUT SCLOUT 3 10 SDAOUT 13 SCLIN 4 9 SDAIN SCLIN 4 9 SDAIN ACC 5 8 FAULT ACC 5 8 FAULT GND 6 7 READY GND 6 7 READY MS PACKAGE 12-LEAD PLASTIC MSOP DE PACKAGE TJMAX = 150°C, θJA = 135°C/W 12-LEAD (4mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 13) PCB CONNECTION TO GND IS OPTIONAL
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4315CDE#PBF LTC4315CDE#TRPBF 4315 12-Lead (4mm × 3mm) DFN 0°C to 70°C LTC4315IDE#PBF LTC4315IDE#TRPBF 4315 12-Lead (4mm × 3mm) DFN –40°C to 85°C LTC4315CMS#PBF LTC4315CMS#TRPBF 4315 12-Lead Plastic MSOP 0°C to 70°C LTC4315IMS#PBF LTC4315IMS#TRPBF 4315 12-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 4315f 2 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM OPERATION APPLICATIONS INFORMATION PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
