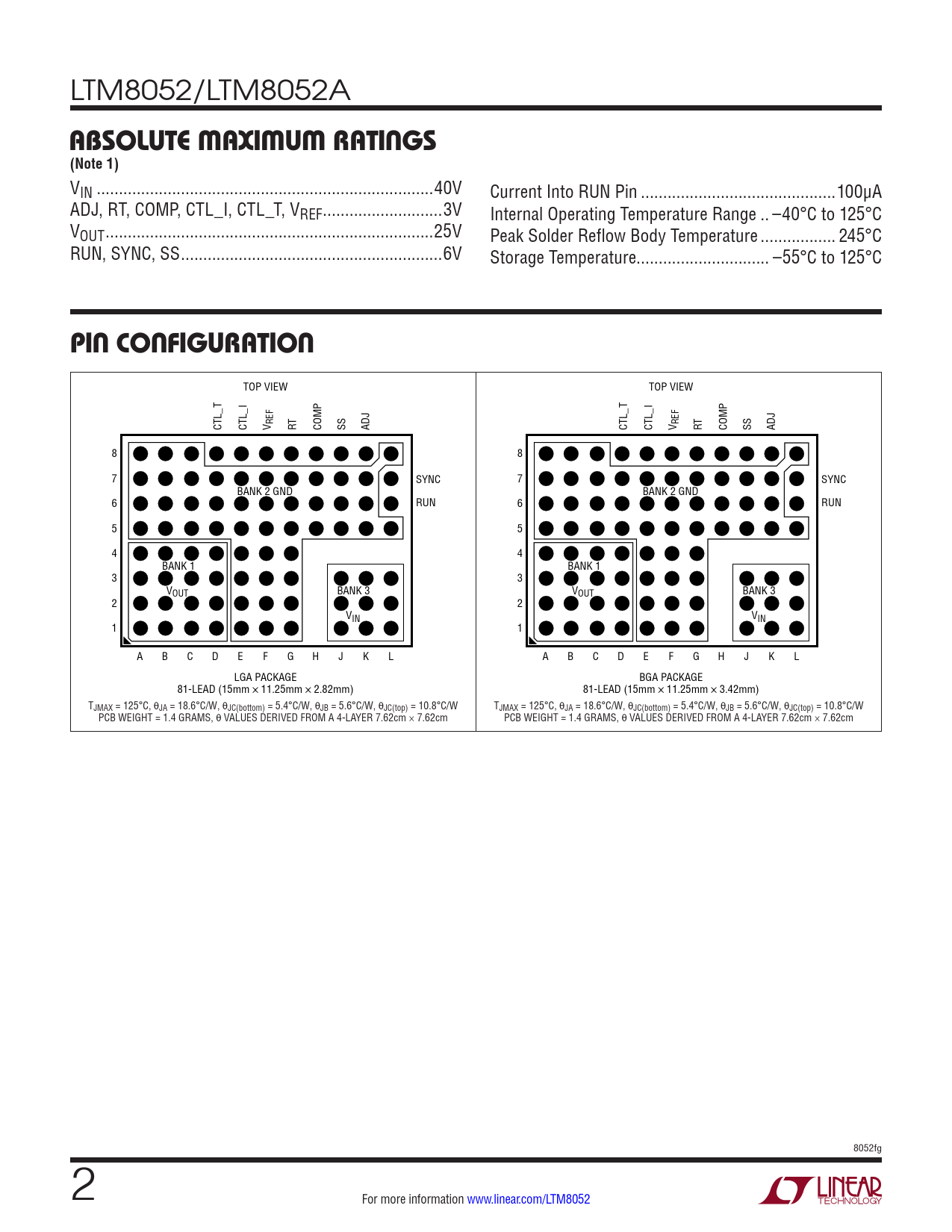

LTM8052/LTM8052A
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN ..40V Current Into RUN Pin ..100µA ADJ, RT, COMP, CTL_I, CTL_T, VREF ...3V Internal Operating Temperature Range .. –40°C to 125°C VOUT ..25V Peak Solder Reflow Body Temperature ... 245°C RUN, SYNC, SS ...6V Storage Temperature.. –55°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW CTL_T CTL_I V REF RT COMP SS ADJ CTL_T CTL_I V REF RT COMP SS ADJ 8 8 7 SYNC 7 SYNC BANK 2 GND BANK 2 GND 6 RUN 6 RUN 5 5 4 4 BANK 1 BANK 1 3 3 VOUT BANK 3 VOUT BANK 3 2 2 VIN VIN 1 1 A B C D E F G H J K L A B C D E F G H J K L LGA PACKAGE BGA PACKAGE 81-LEAD (15mm × 11.25mm × 2.82mm) 81-LEAD (15mm × 11.25mm × 3.42mm) TJMAX = 125°C, θJA = 18.6°C/W, θJC(bottom) = 5.4°C/W, θJB = 5.6°C/W, θJC(top) = 10.8°C/W TJMAX = 125°C, θJA = 18.6°C/W, θJC(bottom) = 5.4°C/W, θJB = 5.6°C/W, θJC(top) = 10.8°C/W PCB WEIGHT = 1.4 GRAMS, θ VALUES DERIVED FROM A 4-LAYER 7.62cm × 7.62cm PCB WEIGHT = 1.4 GRAMS, θ VALUES DERIVED FROM A 4-LAYER 7.62cm × 7.62cm 8052fg 2 For more information www.linear.com/LTM8052 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photos Revision History Typical Application Related Parts
