Datasheet LTM8052, LTM8052A (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 36VIN, 5A, 2-Quadrant CVCC Step-Down μModule Regulator |
| 页数 / 页 | 32 / 3 — ORDER INFORMATION http://www.linear.com/product/LTM8052#orderinfo. PART … |
| 文件格式/大小 | PDF / 640 Kb |
| 文件语言 | 英语 |

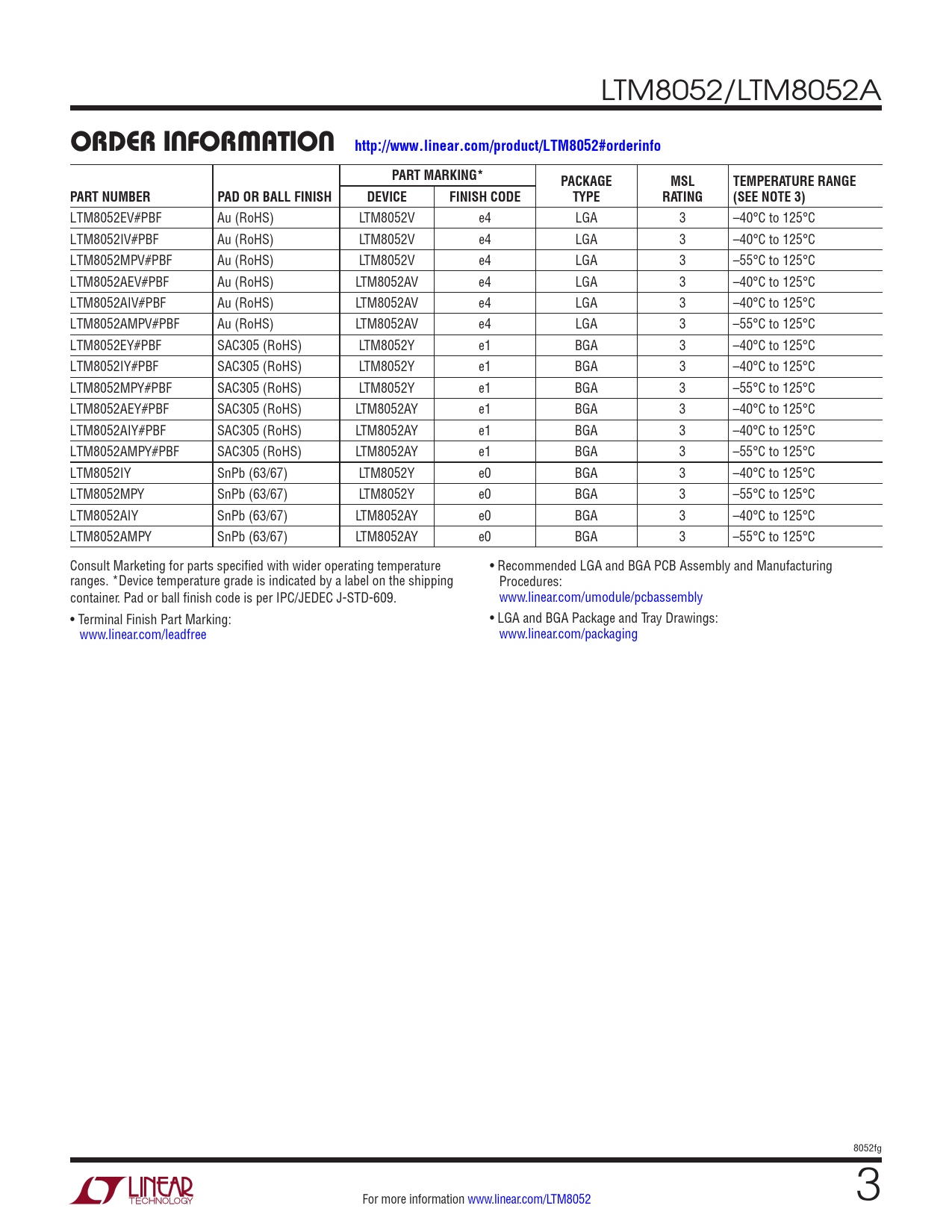

ORDER INFORMATION http://www.linear.com/product/LTM8052#orderinfo. PART MARKING*. PACKAGE. MSL. TEMPERATURE RANGE. PART NUMBER
该数据表的模型线
文件文字版本
LTM8052/LTM8052A
ORDER INFORMATION http://www.linear.com/product/LTM8052#orderinfo PART MARKING* PACKAGE MSL TEMPERATURE RANGE PART NUMBER PAD OR BALL FINISH DEVICE FINISH CODE TYPE RATING (SEE NOTE 3)
LTM8052EV#PBF Au (RoHS) LTM8052V e4 LGA 3 –40°C to 125°C LTM8052IV#PBF Au (RoHS) LTM8052V e4 LGA 3 –40°C to 125°C LTM8052MPV#PBF Au (RoHS) LTM8052V e4 LGA 3 –55°C to 125°C LTM8052AEV#PBF Au (RoHS) LTM8052AV e4 LGA 3 –40°C to 125°C LTM8052AIV#PBF Au (RoHS) LTM8052AV e4 LGA 3 –40°C to 125°C LTM8052AMPV#PBF Au (RoHS) LTM8052AV e4 LGA 3 –55°C to 125°C LTM8052EY#PBF SAC305 (RoHS) LTM8052Y e1 BGA 3 –40°C to 125°C LTM8052IY#PBF SAC305 (RoHS) LTM8052Y e1 BGA 3 –40°C to 125°C LTM8052MPY#PBF SAC305 (RoHS) LTM8052Y e1 BGA 3 –55°C to 125°C LTM8052AEY#PBF SAC305 (RoHS) LTM8052AY e1 BGA 3 –40°C to 125°C LTM8052AIY#PBF SAC305 (RoHS) LTM8052AY e1 BGA 3 –40°C to 125°C LTM8052AMPY#PBF SAC305 (RoHS) LTM8052AY e1 BGA 3 –55°C to 125°C LTM8052IY SnPb (63/67) LTM8052Y e0 BGA 3 –40°C to 125°C LTM8052MPY SnPb (63/67) LTM8052Y e0 BGA 3 –55°C to 125°C LTM8052AIY SnPb (63/67) LTM8052AY e0 BGA 3 –40°C to 125°C LTM8052AMPY SnPb (63/67) LTM8052AY e0 BGA 3 –55°C to 125°C Consult Marketing for parts specified with wider operating temperature • Recommended LGA and BGA PCB Assembly and Manufacturing ranges. *Device temperature grade is indicated by a label on the shipping Procedures: container. Pad or ball finish code is per IPC/JEDEC J-STD-609. www.linear.com/umodule/pcbassembly • Terminal Finish Part Marking: • LGA and BGA Package and Tray Drawings: www.linear.com/leadfree www.linear.com/packaging 8052fg For more information www.linear.com/LTM8052 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photos Revision History Typical Application Related Parts
