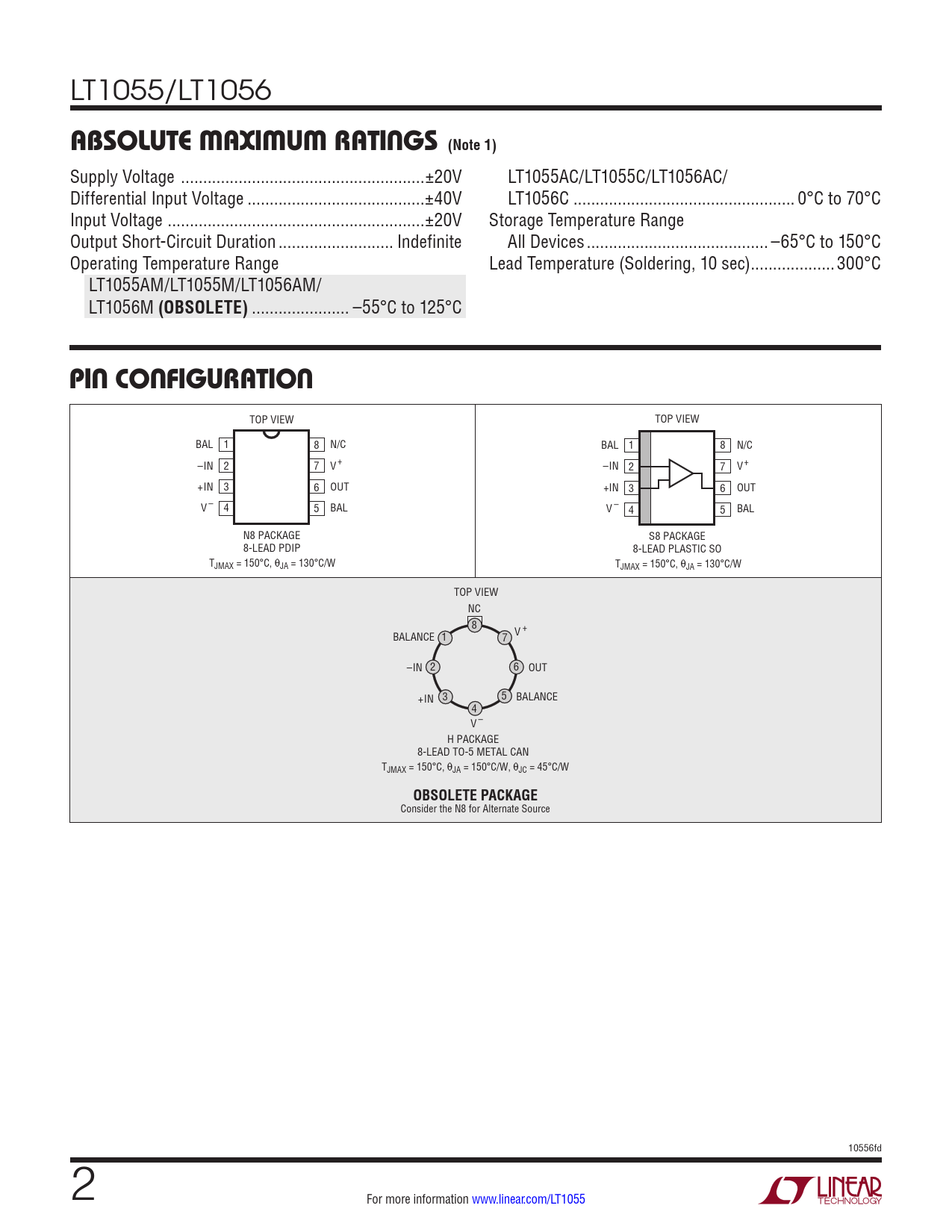

LT1055/LT1056
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage ...±20V LT1055AC/LT1055C/LT1056AC/ Differential Input Voltage ..±40V LT1056C .. 0°C to 70°C Input Voltage ..±20V Storage Temperature Range Output Short-Circuit Duration .. Indefinite Al Devices ... –65°C to 150°C Operating Temperature Range Lead Temperature (Soldering, 10 sec) ...300°C LT1055AM/LT1055M/LT1056AM/ LT1056M
(OBSOLETE)
.. –55°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW BAL 1 8 N/C BAL 1 8 N/C –IN 2 7 V+ –IN 2 7 V+ +IN 3 6 OUT +IN 3 6 OUT V – 4 5 BAL V – 4 5 BAL N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 130°C/W TJMAX = 150°C, θJA = 130°C/W TOP VIEW NC 8 BALANCE 1 7 V + –IN 2 6 OUT +IN 3 5 BALANCE 4 V – H PACKAGE 8-LEAD TO-5 METAL CAN TJMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W
OBSOLETE PACKAGE
Consider the N8 for Alternate Source 10556fd 2 For more information www.linear.com/LT1055 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Simplified schematic Package Description Revision History Typical Application Related Parts
