Datasheet LT6350 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Low Noise Single-Ended to Differential Converter/ADC Driver |
| 页数 / 页 | 28 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion … |
| 文件格式/大小 | PDF / 891 Kb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
该数据表的模型线
文件文字版本

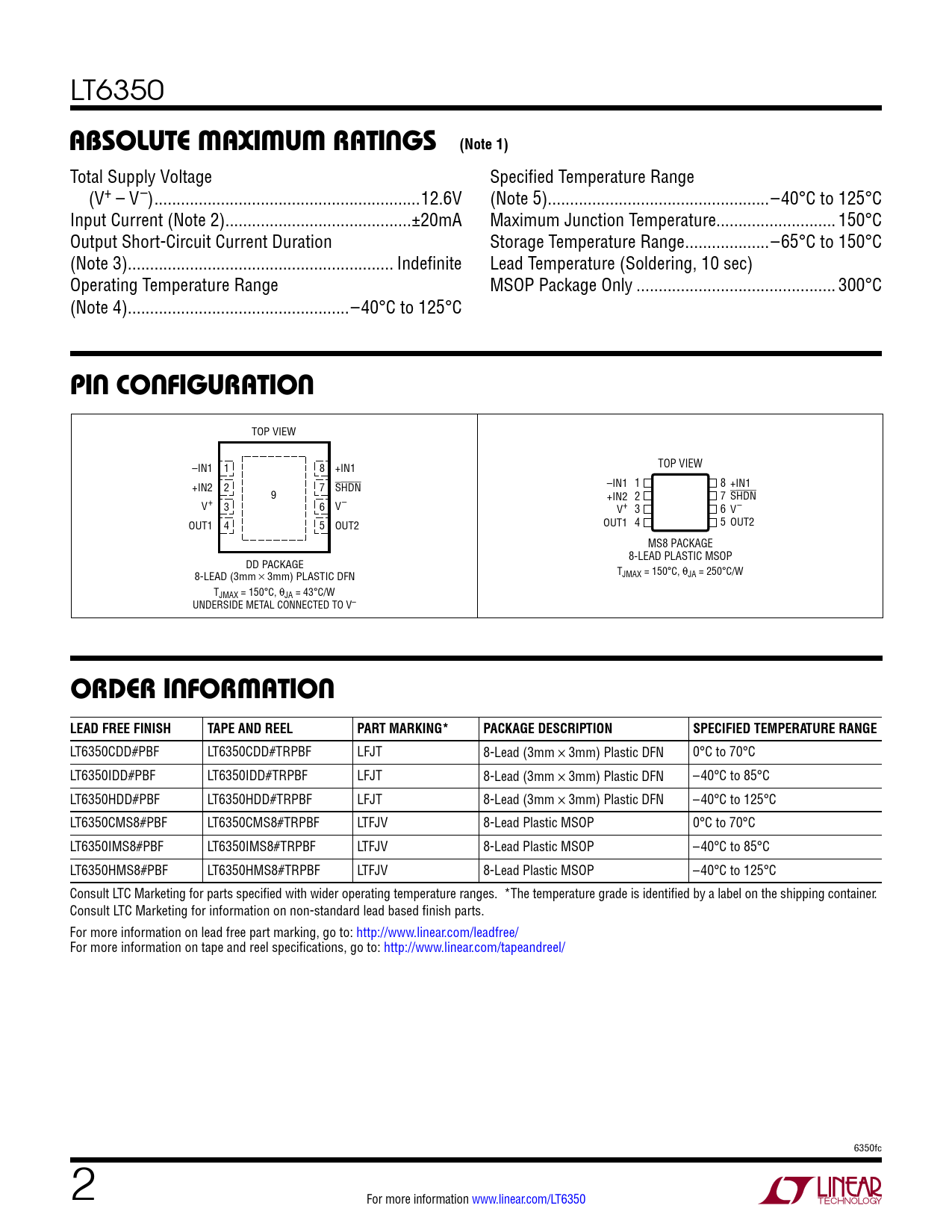

LT6350
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage Specified Temperature Range (V+ – V–) ..12.6V (Note 5) ..–40°C to 125°C Input Current (Note 2) ..±20mA Maximum Junction Temperature... 150°C Output Short-Circuit Current Duration Storage Temperature Range ...–65°C to 150°C (Note 3) .. Indefinite Lead Temperature (Soldering, 10 sec) Operating Temperature Range MSOP Package Only ... 300°C (Note 4) ..–40°C to 125°C
pin conFiguraTion
TOP VIEW –IN1 1 8 +IN1 TOP VIEW +IN2 2 7 SHDN –IN1 1 8 +IN1 9 +IN2 2 7 SHDN V+ 3 6 V– V+ 3 6 V– OUT1 4 5 OUT2 OUT1 4 5 OUT2 MS8 PACKAGE 8-LEAD PLASTIC MSOP DD PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN T JMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 43°C/W UNDERSIDE METAL CONNECTED TO V–
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6350CDD#PBF LT6350CDD#TRPBF LFJT 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT6350IDD#PBF LT6350IDD#TRPBF LFJT 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6350HDD#PBF LT6350HDD#TRPBF LFJT 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT6350CMS8#PBF LT6350CMS8#TRPBF LTFJV 8-Lead Plastic MSOP 0°C to 70°C LT6350IMS8#PBF LT6350IMS8#TRPBF LTFJV 8-Lead Plastic MSOP –40°C to 85°C LT6350HMS8#PBF LT6350HMS8#TRPBF LTFJV 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 6350fc 2 For more information www.linear.com/LT6350 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram DC Test Circuit Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
