AOZ8661BDT-05. Package Dimensions, DFN 0.6x0.3A-2L, EP2_S. Top View. Bottom View. Side View. RECOMMEND LAND PATTERN. www.aosmd.com
该数据表的模型线
文件文字版本

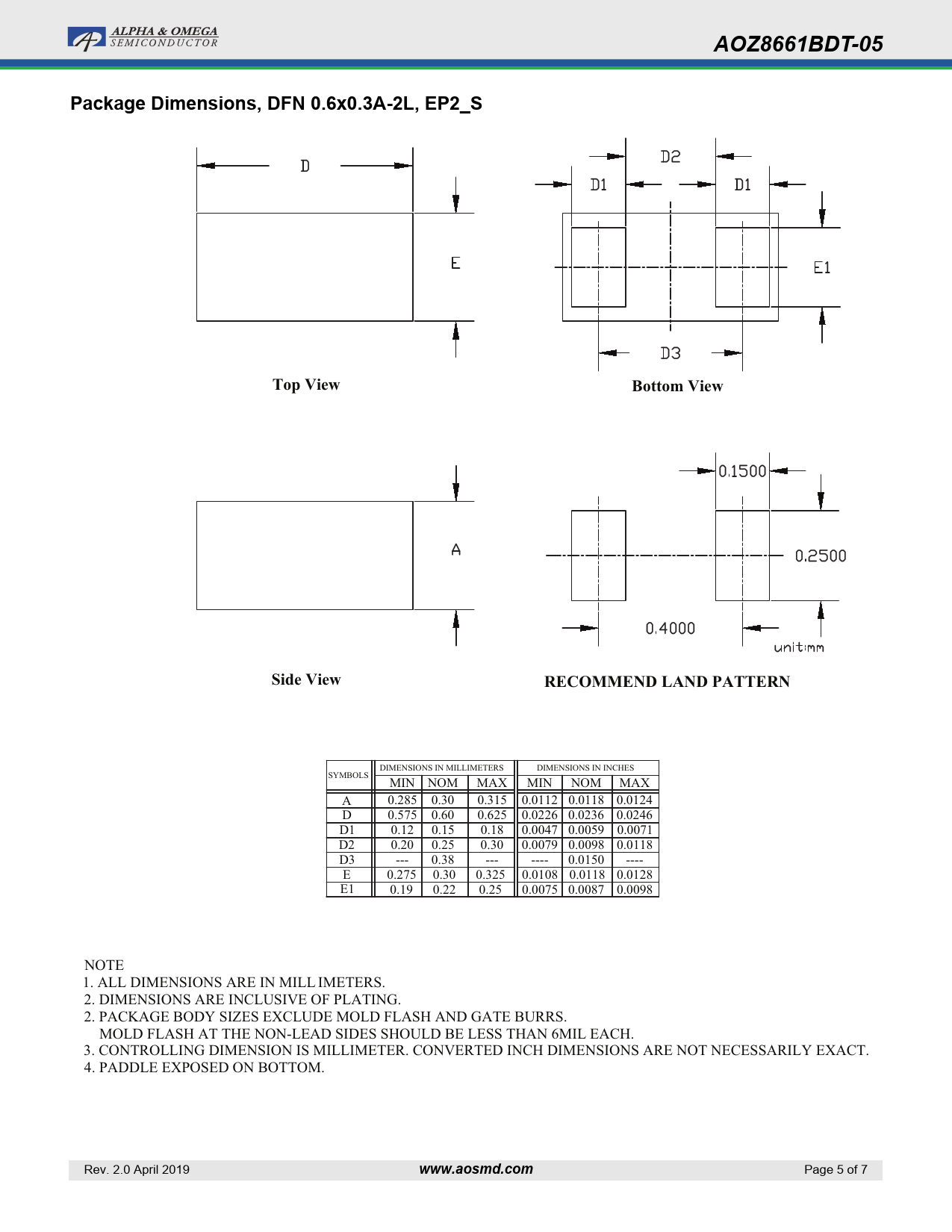

AOZ8661BDT-05 Package Dimensions, DFN 0.6x0.3A-2L, EP2_S Top View Bottom View Side View RECOMMEND LAND PATTERN
DIMENSIONS IN MILLIMETERS DIMENSIONS IN INCHES SYMBOLS MIN NOM MAX MIN NOM MAX A 0.285 0.30 0.315 0.0112 0.0118 0.0124 D 0.575 0.60 0.625 0.0226 0.0236 0.0246 D1 0.12 0.15 0.18 0.0047 0.0059 0.0071 D2 0.20 0.25 0.30 0.0079 0.0098 0.0118 D3 --- 0.38 --- ---- 0.0150 ---- E 0.275 0.30 0.325 0.0108 0.0118 0.0128 E1 0.19 0.22 0.25 0.0075 0.0087 0.0098 NOTE 1. ALL DIMENSIONS ARE IN MILL IMETERS. 2. DIMENSIONS ARE INCLUSIVE OF PLATING. 2. PACKAGE BODY SIZES EXCLUDE MOLD FLASH AND GATE BURRS. MOLD FLASH AT THE NON-LEAD SIDES SHOULD BE LESS THAN 6MIL EACH. 3. CONTROLLING DIMENSION IS MILLIMETER. CONVERTED INCH DIMENSIONS ARE NOT NECESSARILY EXACT. 4. PADDLE EXPOSED ON BOTTOM. Rev. 2.0 April 2019
www.aosmd.com
Page 5 of 7
DIMENSIONS IN MILLIMETERS DIMENSIONS IN INCHES SYMBOLS MIN NOM MAX MIN NOM MAX A 0.285 0.30 0.315 0.0112 0.0118 0.0124 D 0.575 0.60 0.625 0.0226 0.0236 0.0246 D1 0.12 0.15 0.18 0.0047 0.0059 0.0071 D2 0.20 0.25 0.30 0.0079 0.0098 0.0118 D3 --- 0.38 --- ---- 0.0150 ---- E 0.275 0.30 0.325 0.0108 0.0118 0.0128 E1 0.19 0.22 0.25 0.0075 0.0087 0.0098 NOTE 1. ALL DIMENSIONS ARE IN MILL IMETERS. 2. DIMENSIONS ARE INCLUSIVE OF PLATING. 2. PACKAGE BODY SIZES EXCLUDE MOLD FLASH AND GATE BURRS. MOLD FLASH AT THE NON-LEAD SIDES SHOULD BE LESS THAN 6MIL EACH. 3. CONTROLLING DIMENSION IS MILLIMETER. CONVERTED INCH DIMENSIONS ARE NOT NECESSARILY EXACT. 4. PADDLE EXPOSED ON BOTTOM. Rev. 2.0 April 2019
