Datasheet AOZ8661BDT-05 (Alpha & Omega) - 2
| 制造商 | Alpha & Omega |
| 描述 | 1CH Super Low Capacitance TVS |
| 页数 / 页 | 7 / 2 — AOZ8661BDT-05. Ordering Information. Part Number. Ambient Temperature … |
| 文件格式/大小 | PDF / 492 Kb |
| 文件语言 | 英语 |
AOZ8661BDT-05. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Absolute Maximum Ratings
该数据表的模型线
文件文字版本

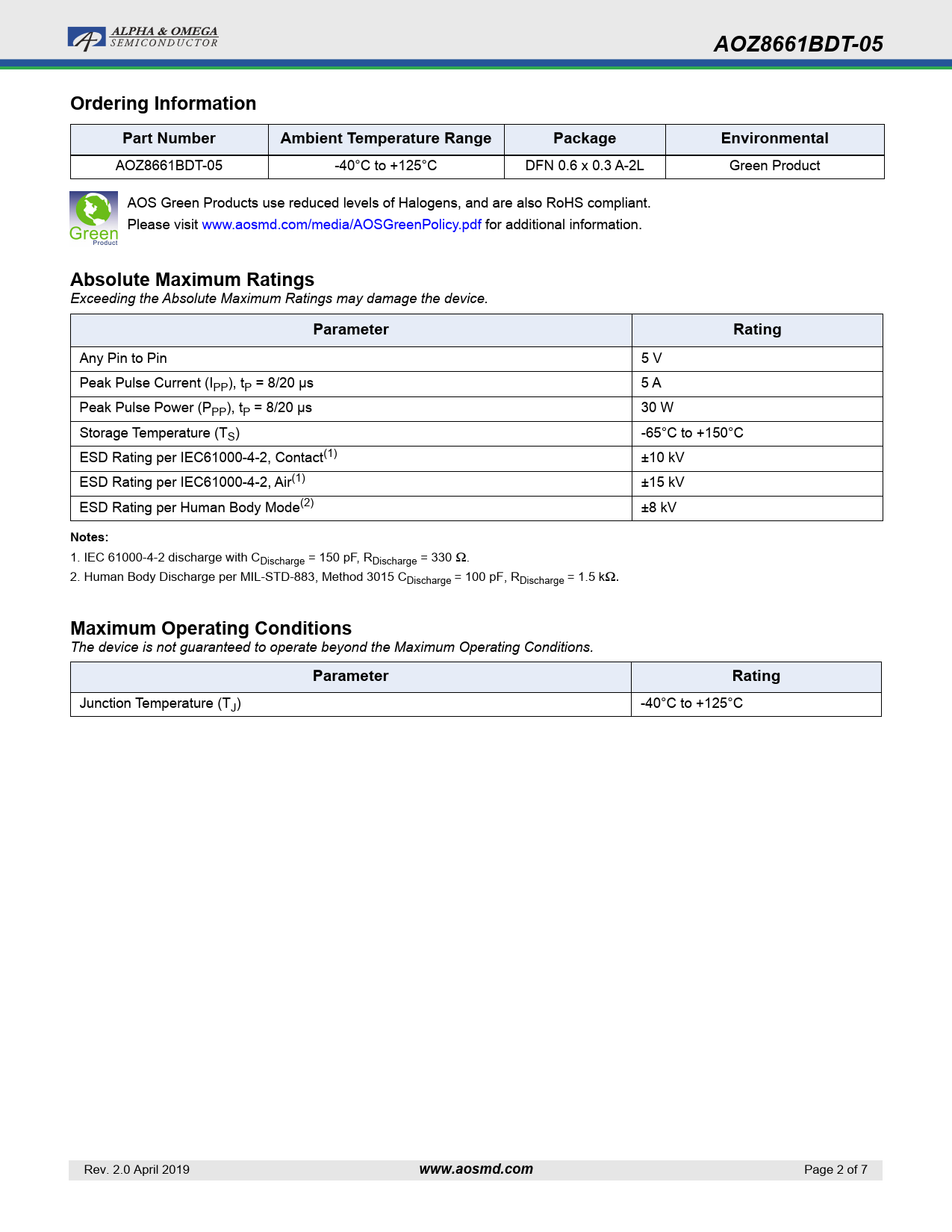

AOZ8661BDT-05 Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ8661BDT-05 -40°C to +125°C DFN 0.6 x 0.3 A-2L Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter Rating
Any Pin to Pin 5 V Peak Pulse Current (IPP), tP = 8/20 µs 5 A Peak Pulse Power (PPP), tP = 8/20 µs 30 W Storage Temperature (TS) -65°C to +150°C ESD Rating per IEC61000-4-2, Contact(1) ±10 kV ESD Rating per IEC61000-4-2, Air(1) ±15 kV ESD Rating per Human Body Mode(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150 pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Conditions
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter Rating
Junction Temperature (TJ) -40°C to +125°C Rev. 2.0 April 2019
www.aosmd.com
Page 2 of 7
