Datasheet AOZ8661BDT-05 (Alpha & Omega)
| 制造商 | Alpha & Omega |
| 描述 | 1CH Super Low Capacitance TVS |
| 页数 / 页 | 7 / 1 — AOZ8661BDT-05. 1CH Super Low Capacitance TVS. General Description. … |
| 文件格式/大小 | PDF / 492 Kb |
| 文件语言 | 英语 |
AOZ8661BDT-05. 1CH Super Low Capacitance TVS. General Description. Features. Applications. Typical Application. Pin Configuration
该数据表的模型线
文件文字版本

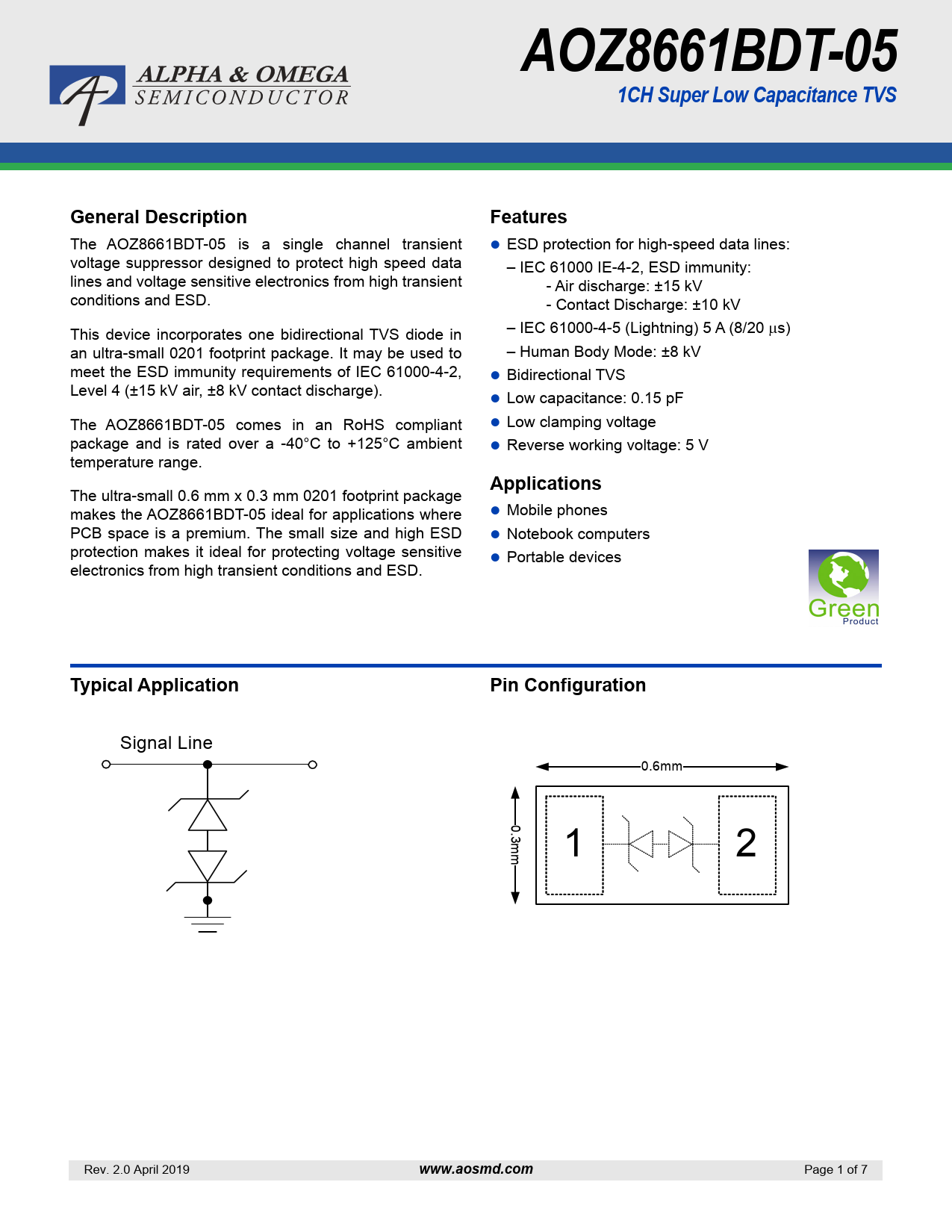

AOZ8661BDT-05 1CH Super Low Capacitance TVS General Description Features
The AOZ8661BDT-05 is a single channel transient ESD protection for high-speed data lines: voltage suppressor designed to protect high speed data – IEC 61000 IE-4-2, ESD immunity: lines and voltage sensitive electronics from high transient - Air discharge: ±15 kV conditions and ESD. - Contact Discharge: ±10 kV This device incorporates one bidirectional TVS diode in – IEC 61000-4-5 (Lightning) 5 A (8/20 s) an ultra-small 0201 footprint package. It may be used to – Human Body Mode: ±8 kV meet the ESD immunity requirements of IEC 61000-4-2, Bidirectional TVS Level 4 (±15 kV air, ±8 kV contact discharge). Low capacitance: 0.15 pF The AOZ8661BDT-05 comes in an RoHS compliant Low clamping voltage package and is rated over a -40°C to +125°C ambient Reverse working voltage: 5 V temperature range.
Applications
The ultra-small 0.6 mm x 0.3 mm 0201 footprint package makes the AOZ8661BDT-05 ideal for applications where Mobile phones PCB space is a premium. The small size and high ESD Notebook computers protection makes it ideal for protecting voltage sensitive Portable devices electronics from high transient conditions and ESD.
Typical Application Pin Configuration
Signal Line 0.6mm 0.3m m 1 2 Rev. 2.0 April 2019
www.aosmd.com
Page 1 of 7
