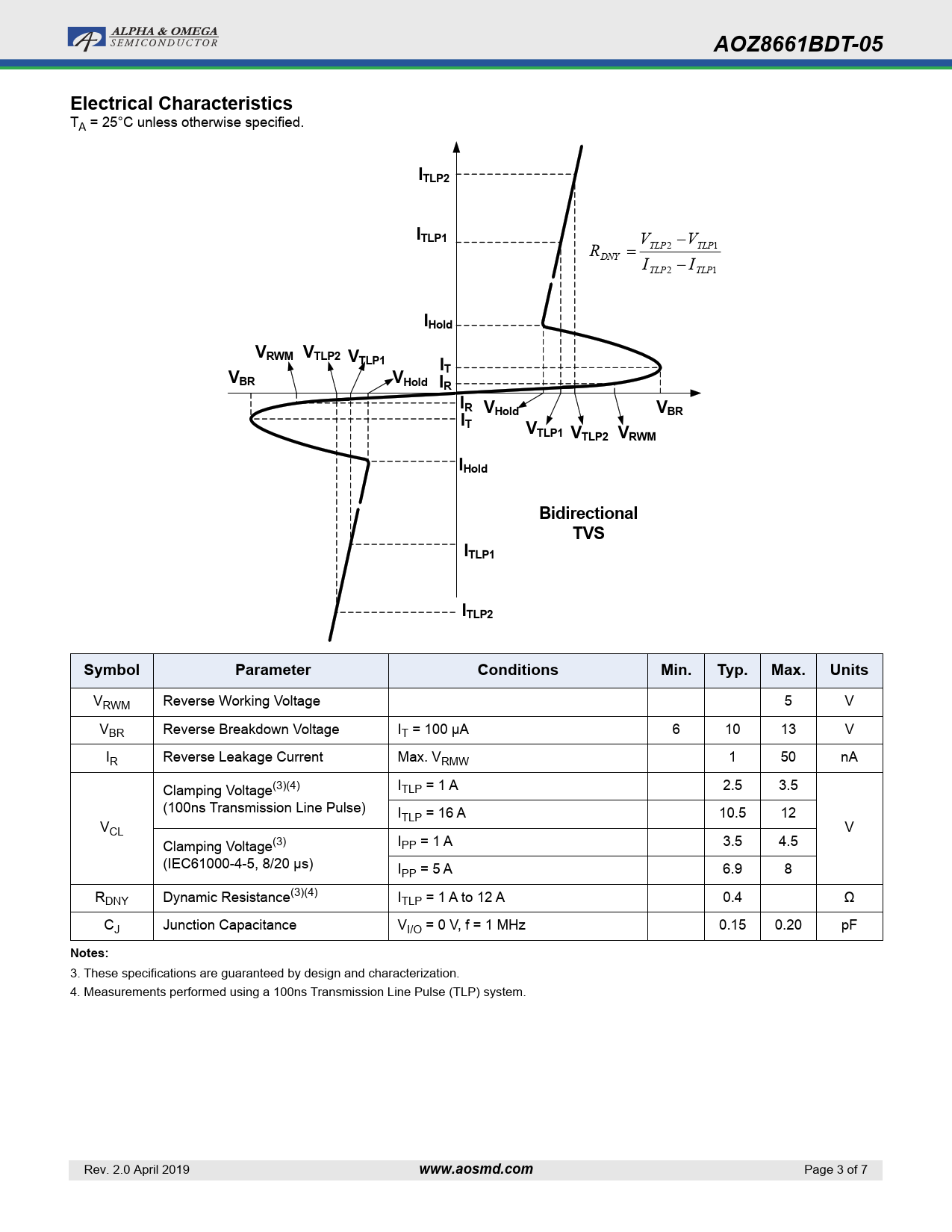

AOZ8661BDT-05 Electrical Characteristics
TA = 25°C unless otherwise specified.
ITLP2 ITLP1
V V TLP2 1 TLP R DNY I I TLP2 TL 1 P
IHold VRWM VTLP2 VTLP1 IT VBR VHold IR IR VHold VBR IT VTLP1 VTLP2 VRWM IHold Bidirectional TVS ITLP1 ITLP2 Symbol Parameter Conditions Min. Typ. Max. Units
VRWM Reverse Working Voltage 5 V VBR Reverse Breakdown Voltage IT = 100 µA 6 10 13 V IR Reverse Leakage Current Max. VRMW 1 50 nA Clamping Voltage(3)(4) ITLP = 1 A 2.5 3.5 (100ns Transmission Line Pulse) ITLP = 16 A 10.5 12 VCL V Clamping Voltage(3) IPP = 1 A 3.5 4.5 (IEC61000-4-5, 8/20 µs) IPP = 5 A 6.9 8 RDNY Dynamic Resistance(3)(4) ITLP = 1 A to 12 A 0.4 Ω CJ Junction Capacitance VI/O = 0 V, f = 1 MHz 0.15 0.20 pF
Notes:
3. These specifications are guaranteed by design and characterization. 4. Measurements performed using a 100ns Transmission Line Pulse (TLP) system. Rev. 2.0 April 2019
www.aosmd.com
Page 3 of 7
TA = 25°C unless otherwise specified.
ITLP2 ITLP1
V V TLP2 1 TLP R DNY I I TLP2 TL 1 P
IHold VRWM VTLP2 VTLP1 IT VBR VHold IR IR VHold VBR IT VTLP1 VTLP2 VRWM IHold Bidirectional TVS ITLP1 ITLP2 Symbol Parameter Conditions Min. Typ. Max. Units
VRWM Reverse Working Voltage 5 V VBR Reverse Breakdown Voltage IT = 100 µA 6 10 13 V IR Reverse Leakage Current Max. VRMW 1 50 nA Clamping Voltage(3)(4) ITLP = 1 A 2.5 3.5 (100ns Transmission Line Pulse) ITLP = 16 A 10.5 12 VCL V Clamping Voltage(3) IPP = 1 A 3.5 4.5 (IEC61000-4-5, 8/20 µs) IPP = 5 A 6.9 8 RDNY Dynamic Resistance(3)(4) ITLP = 1 A to 12 A 0.4 Ω CJ Junction Capacitance VI/O = 0 V, f = 1 MHz 0.15 0.20 pF
Notes:
3. These specifications are guaranteed by design and characterization. 4. Measurements performed using a 100ns Transmission Line Pulse (TLP) system. Rev. 2.0 April 2019
www.aosmd.com
Page 3 of 7
