Datasheet AD7606-EP (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 8-Channel DAS with 16-Bit, Bipolar, Simultaneous Sampling ADC |
| 页数 / 页 | 15 / 7 — Data Sheet. AD7606-EP. Timing Diagrams. CONVST A,. CONVST B. tCYCLE. … |
| 文件格式/大小 | PDF / 279 Kb |
| 文件语言 | 英语 |

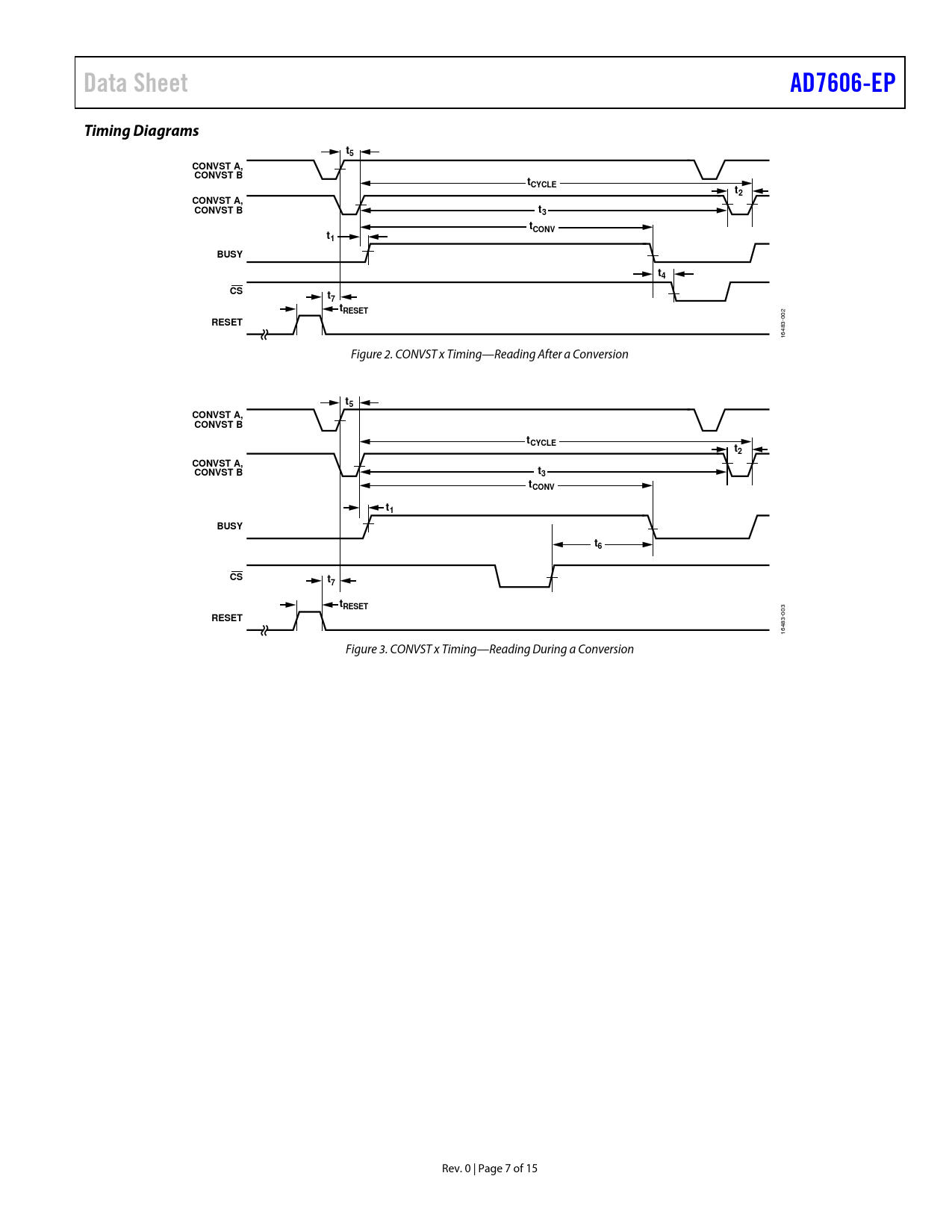

Data Sheet. AD7606-EP. Timing Diagrams. CONVST A,. CONVST B. tCYCLE. tCONV. BUSY. tRESET. RESET
该数据表的模型线
文件文字版本
Data Sheet AD7606-EP Timing Diagrams t5 CONVST A, CONVST B tCYCLE t2 CONVST A, CONVST B t3 tCONV t1 BUSY t4 CS t7 tRESET
002
RESET
16483- Figure 2. CONVST x Timing—Reading After a Conversion
t5 CONVST A, CONVST B tCYCLE t2 CONVST A, CONVST B t3 tCONV t1 BUSY t6 CS t7 tRESET
003
RESET
16483- Figure 3. CONVST x Timing—Reading During a Conversion Rev. 0 | Page 7 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
