Datasheet MPSA05, MPSA06, MPSA55, MPSA56 (ON Semiconductor) - 6
| 制造商 | ON Semiconductor |
| 描述 | NPN Bipolar Small Signal Transistor |
| 页数 / 页 | 7 / 6 — NPN − MPSA05, MPSA06*; PNP − MPSA55, MPSA56*. ORDERING INFORMATION. … |
| 修订版 | 3 |
| 文件格式/大小 | PDF / 92 Kb |
| 文件语言 | 英语 |
NPN − MPSA05, MPSA06*; PNP − MPSA55, MPSA56*. ORDERING INFORMATION. Device. Package. Shipping. http://onsemi.com
该数据表的模型线
文件文字版本

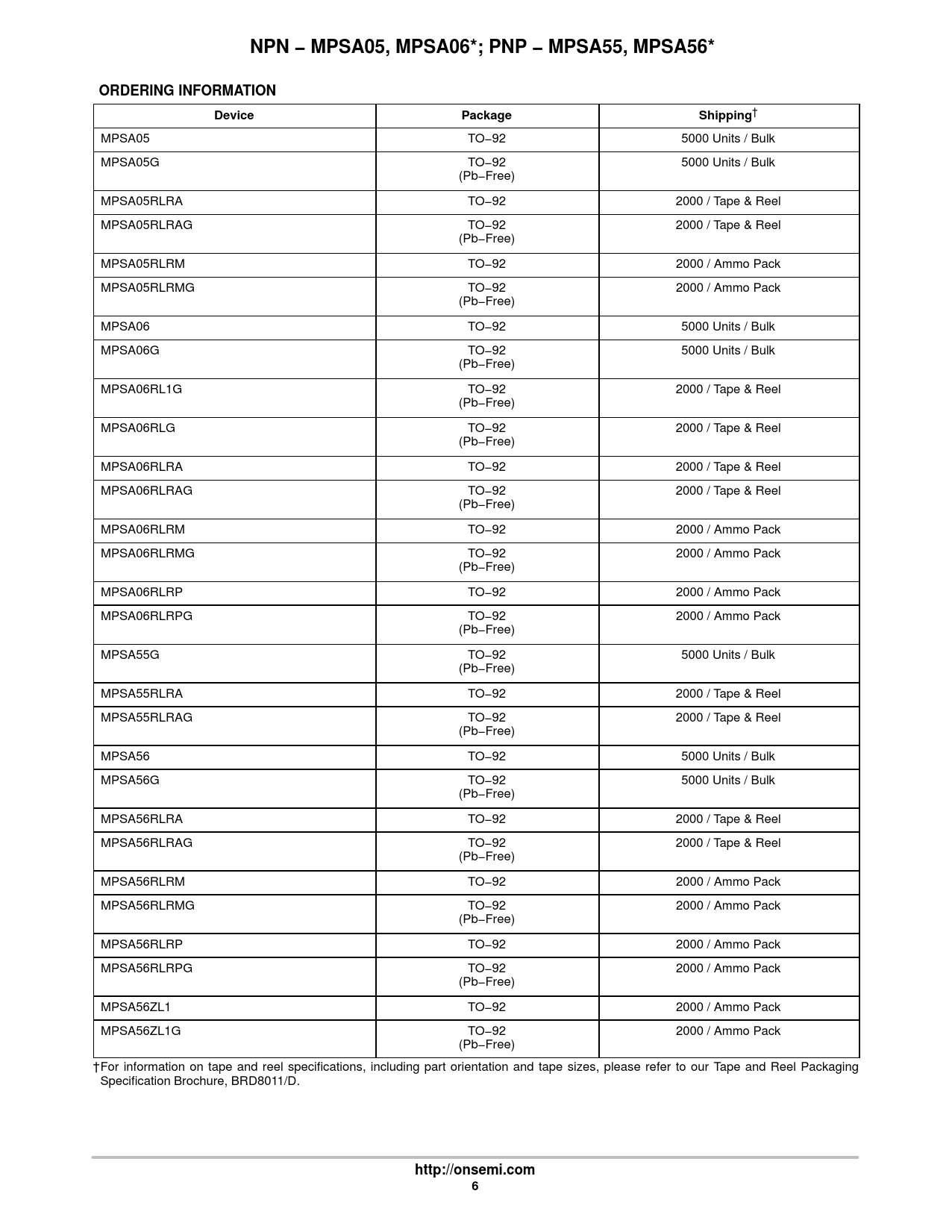

NPN − MPSA05, MPSA06*; PNP − MPSA55, MPSA56* ORDERING INFORMATION Device Package Shipping
† MPSA05 TO−92 5000 Units / Bulk MPSA05G TO−92 5000 Units / Bulk (Pb−Free) MPSA05RLRA TO−92 2000 / Tape & Reel MPSA05RLRAG TO−92 2000 / Tape & Reel (Pb−Free) MPSA05RLRM TO−92 2000 / Ammo Pack MPSA05RLRMG TO−92 2000 / Ammo Pack (Pb−Free) MPSA06 TO−92 5000 Units / Bulk MPSA06G TO−92 5000 Units / Bulk (Pb−Free) MPSA06RL1G TO−92 2000 / Tape & Reel (Pb−Free) MPSA06RLG TO−92 2000 / Tape & Reel (Pb−Free) MPSA06RLRA TO−92 2000 / Tape & Reel MPSA06RLRAG TO−92 2000 / Tape & Reel (Pb−Free) MPSA06RLRM TO−92 2000 / Ammo Pack MPSA06RLRMG TO−92 2000 / Ammo Pack (Pb−Free) MPSA06RLRP TO−92 2000 / Ammo Pack MPSA06RLRPG TO−92 2000 / Ammo Pack (Pb−Free) MPSA55G TO−92 5000 Units / Bulk (Pb−Free) MPSA55RLRA TO−92 2000 / Tape & Reel MPSA55RLRAG TO−92 2000 / Tape & Reel (Pb−Free) MPSA56 TO−92 5000 Units / Bulk MPSA56G TO−92 5000 Units / Bulk (Pb−Free) MPSA56RLRA TO−92 2000 / Tape & Reel MPSA56RLRAG TO−92 2000 / Tape & Reel (Pb−Free) MPSA56RLRM TO−92 2000 / Ammo Pack MPSA56RLRMG TO−92 2000 / Ammo Pack (Pb−Free) MPSA56RLRP TO−92 2000 / Ammo Pack MPSA56RLRPG TO−92 2000 / Ammo Pack (Pb−Free) MPSA56ZL1 TO−92 2000 / Ammo Pack MPSA56ZL1G TO−92 2000 / Ammo Pack (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.
http://onsemi.com 6
