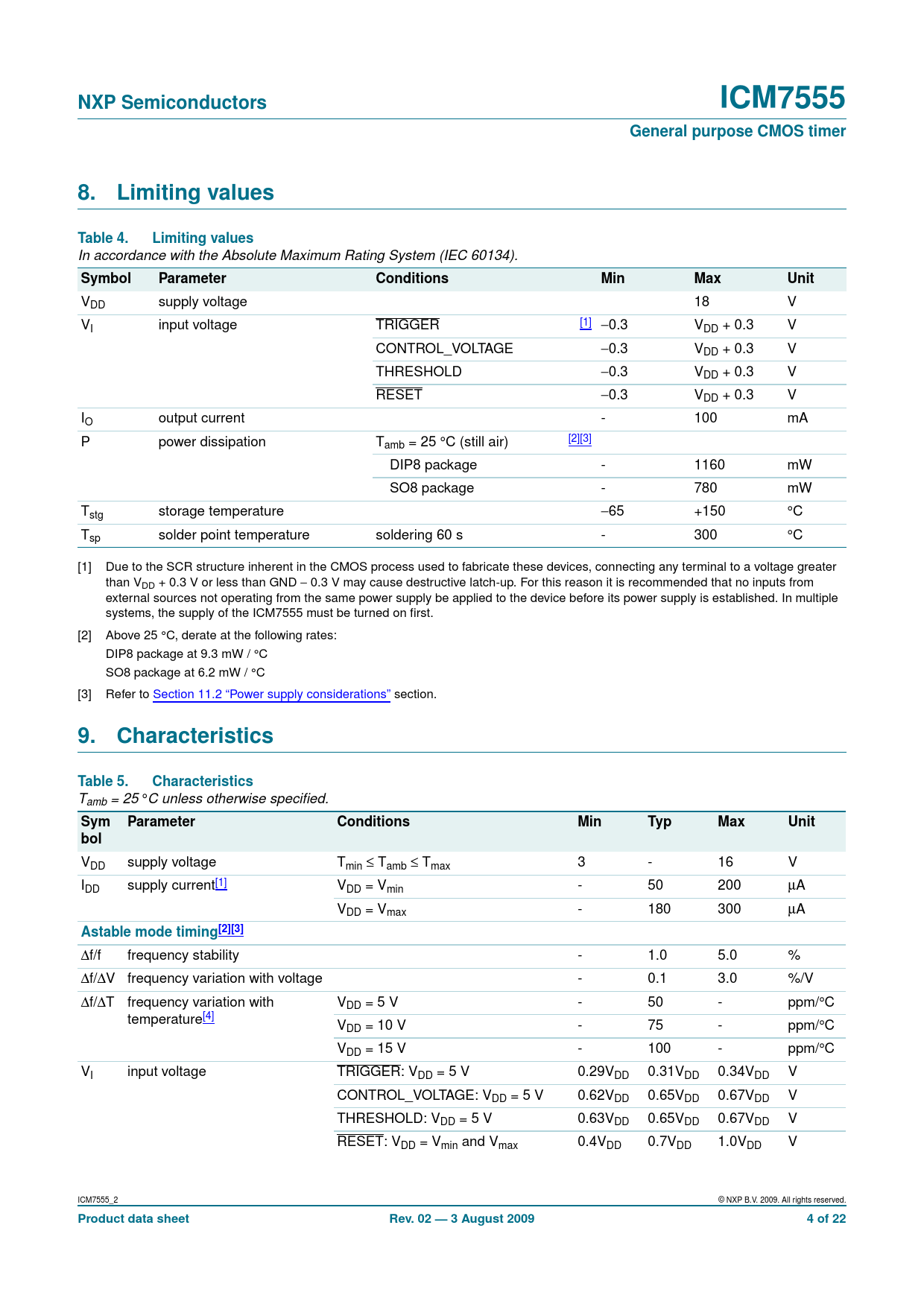

NXP Semiconductors ICM7555 General purpose CMOS timer 8. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDD supply voltage 18 V VI input voltage TRIGGER [1] −0.3 VDD + 0.3 V CONTROL_VOLTAGE −0.3 VDD + 0.3 V THRESHOLD −0.3 VDD + 0.3 V RESET −0.3 VDD + 0.3 V IO output current - 100 mA P power dissipation Tamb = 25 °C (still air) [2][3] DIP8 package - 1160 mW SO8 package - 780 mW Tstg storage temperature −65 +150 °C Tsp solder point temperature soldering 60 s - 300 °C [1] Due to the SCR structure inherent in the CMOS process used to fabricate these devices, connecting any terminal to a voltage greater than VDD + 0.3 V or less than GND − 0.3 V may cause destructive latch-up. For this reason it is recommended that no inputs from external sources not operating from the same power supply be applied to the device before its power supply is established. In multiple systems, the supply of the ICM7555 must be turned on first. [2] Above 25 °C, derate at the following rates: DIP8 package at 9.3 mW / °C SO8 package at 6.2 mW / °C [3] Refer to Section 11.2 “Power supply considerations” section.
9. Characteristics Table 5. Characteristics
Tamb = 25 °C unless otherwise specified.
Sym Parameter Conditions Min Typ Max Unit bol
VDD supply voltage Tmin ≤ Tamb ≤ Tmax 3 - 16 V IDD supply current[1] VDD = Vmin - 50 200 µA VDD = Vmax - 180 300 µA
Astable mode timing[2][3]
∆f/f frequency stability - 1.0 5.0 % ∆f/∆V frequency variation with voltage - 0.1 3.0 %/V ∆f/∆T frequency variation with VDD = 5 V - 50 - ppm/°C temperature[4] VDD = 10 V - 75 - ppm/°C VDD = 15 V - 100 - ppm/°C VI input voltage TRIGGER: VDD = 5 V 0.29VDD 0.31VDD 0.34VDD V CONTROL_VOLTAGE: VDD = 5 V 0.62VDD 0.65VDD 0.67VDD V THRESHOLD: VDD = 5 V 0.63VDD 0.65VDD 0.67VDD V RESET: VDD = Vmin and Vmax 0.4VDD 0.7VDD 1.0VDD V ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 4 of 22
