Datasheet ADXL375-EP (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 3-Axis, ±200 g Digital MEMS Accelerometer |
| 页数 / 页 | 7 / 5 — Enhanced Product. ADXL375-EP. PIN CONFIGURATION AND FUNCTION … |
| 文件格式/大小 | PDF / 259 Kb |
| 文件语言 | 英语 |

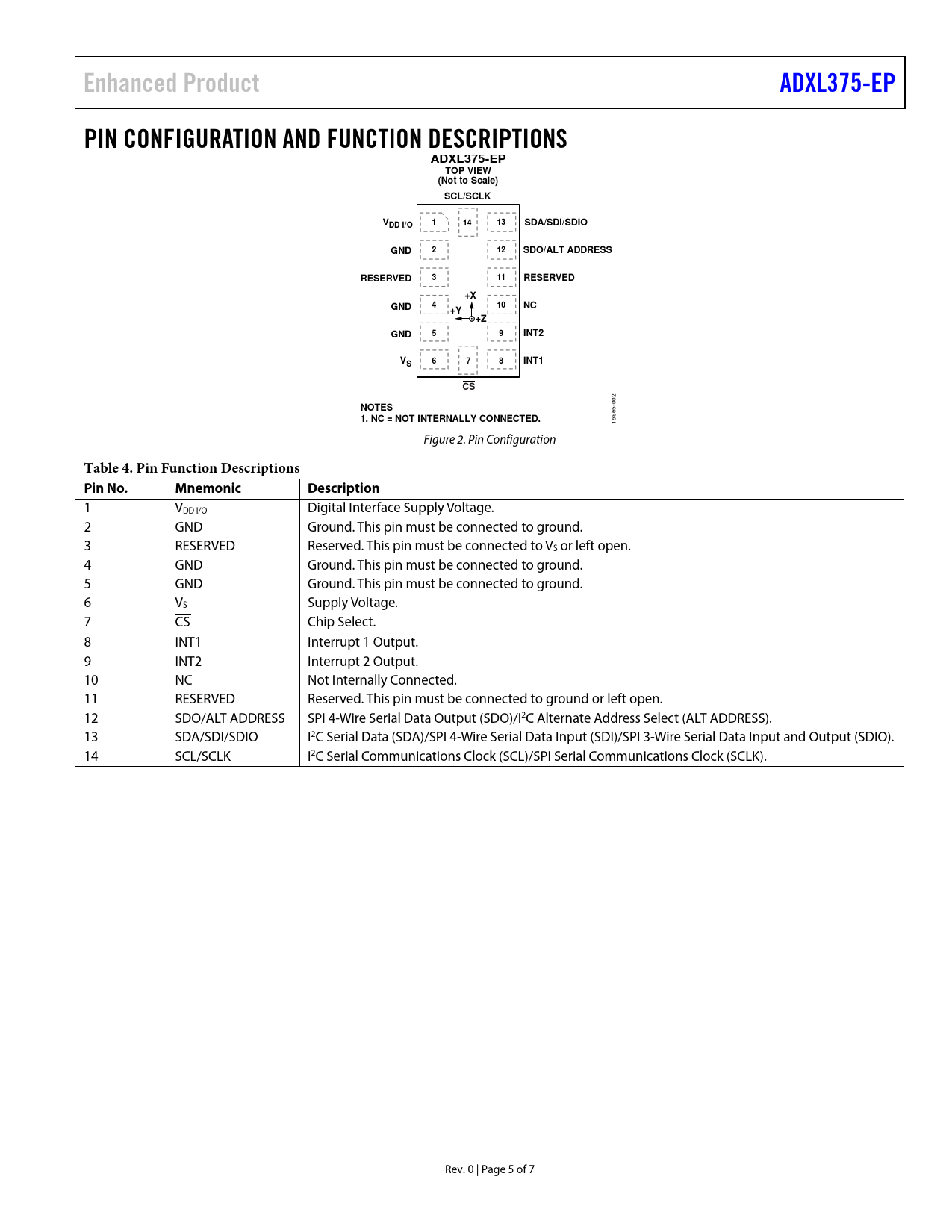

Enhanced Product. ADXL375-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). SCL/SCLK. SDA/SDI/SDIO. DD I/O
该数据表的模型线
文件文字版本
Enhanced Product ADXL375-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADXL375-EP TOP VIEW (Not to Scale) SCL/SCLK V 1 14 13 SDA/SDI/SDIO DD I/O GND 2 12 SDO/ALT ADDRESS RESERVED 3 11 RESERVED +X GND 4 10 NC +Y +Z GND 5 9 INT2 V 6 7 8 INT1 S CS
002
NOTES 1. NC = NOT INTERNALLY CONNECTED.
16865- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 VDD I/O Digital Interface Supply Voltage. 2 GND Ground. This pin must be connected to ground. 3 RESERVED Reserved. This pin must be connected to VS or left open. 4 GND Ground. This pin must be connected to ground. 5 GND Ground. This pin must be connected to ground. 6 VS Supply Voltage. 7 CS Chip Select. 8 INT1 Interrupt 1 Output. 9 INT2 Interrupt 2 Output. 10 NC Not Internally Connected. 11 RESERVED Reserved. This pin must be connected to ground or left open. 12 SDO/ALT ADDRESS SPI 4-Wire Serial Data Output (SDO)/I2C Alternate Address Select (ALT ADDRESS). 13 SDA/SDI/SDIO I2C Serial Data (SDA)/SPI 4-Wire Serial Data Input (SDI)/SPI 3-Wire Serial Data Input and Output (SDIO). 14 SCL/SCLK I2C Serial Communications Clock (SCL)/SPI Serial Communications Clock (SCLK). Rev. 0 | Page 5 of 7 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
