| 制造商 | Analog Devices |
| 描述 | 3-Axis, ±200 g Digital MEMS Accelerometer |
| 页数 / 页 | 7 / 7 — Enhanced Product. ADXL375-EP. OUTLINE DIMENSIONS. 3.00. PIN 1. BSC. 0.49. … |
| 文件格式/大小 | PDF / 259 Kb |
| 文件语言 | 英语 |

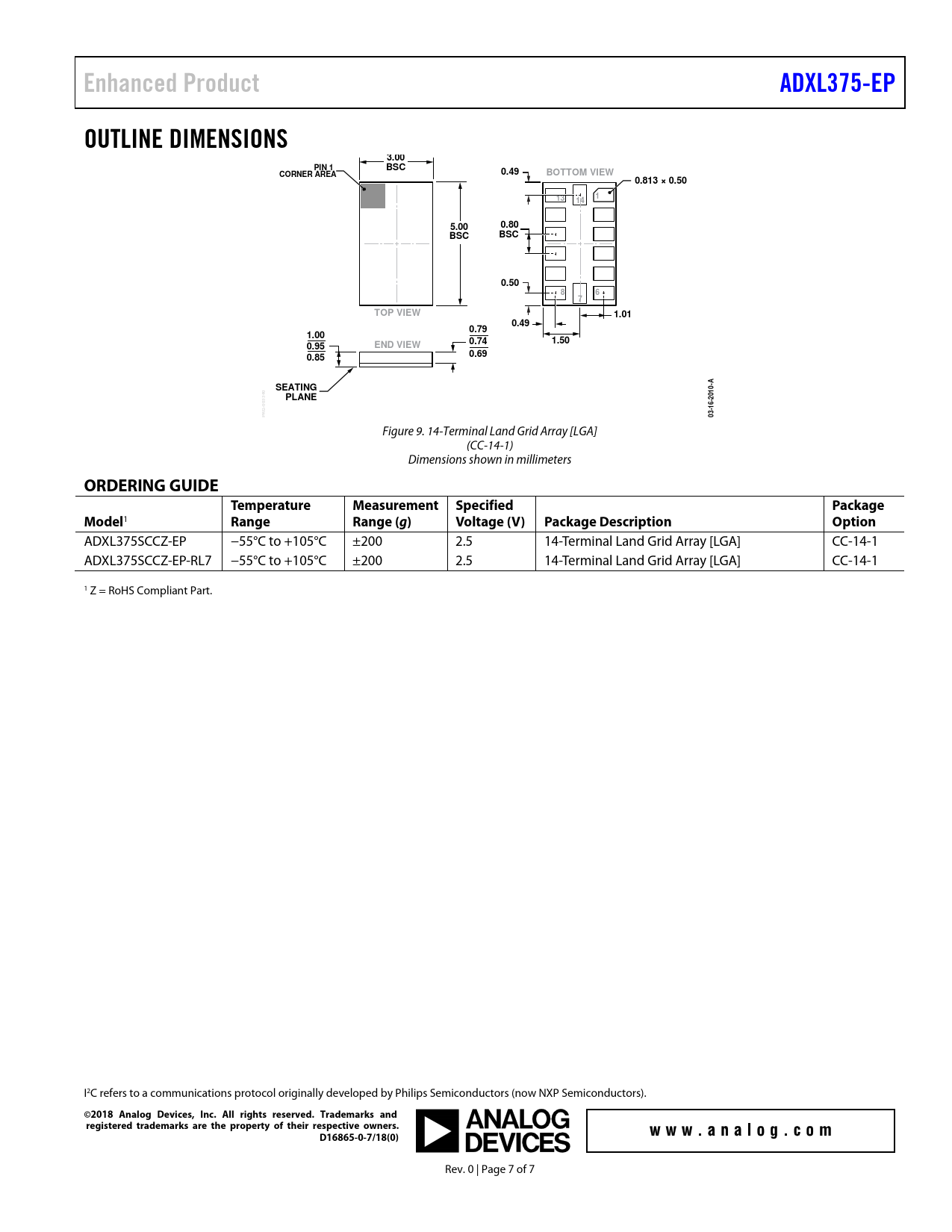

Enhanced Product. ADXL375-EP. OUTLINE DIMENSIONS. 3.00. PIN 1. BSC. 0.49. CORNER AREA. BOTTOM VIEW. 0.813 × 0.50. 5.00. 0.80. 0.50. TOP VIEW. 1.01
该数据表的模型线
文件文字版本
Enhanced Product ADXL375-EP OUTLINE DIMENSIONS 3.00 PIN 1 BSC 0.49 CORNER AREA BOTTOM VIEW 0.813 × 0.50 1 13 14 5.00 0.80 BSC BSC 0.50 8 6 7 TOP VIEW 1.01 0.49 0.79 1.00 0.74 1.50 0.95 END VIEW 0.85 0.69 A SEATING PLANE 2010- -003340 16- G K P 03-
Figure 9. 14-Terminal Land Grid Array [LGA] (CC-14-1) Dimensions shown in millimeters
ORDERING GUIDE Temperature Measurement Specified Package Model
1
Range Range (g ) Voltage (V) Package Description Option
ADXL375SCCZ-EP −55°C to +105°C ±200 2.5 14-Terminal Land Grid Array [LGA] CC-14-1 ADXL375SCCZ-EP-RL7 −55°C to +105°C ±200 2.5 14-Terminal Land Grid Array [LGA] CC-14-1 1 Z = RoHS Compliant Part. I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).
