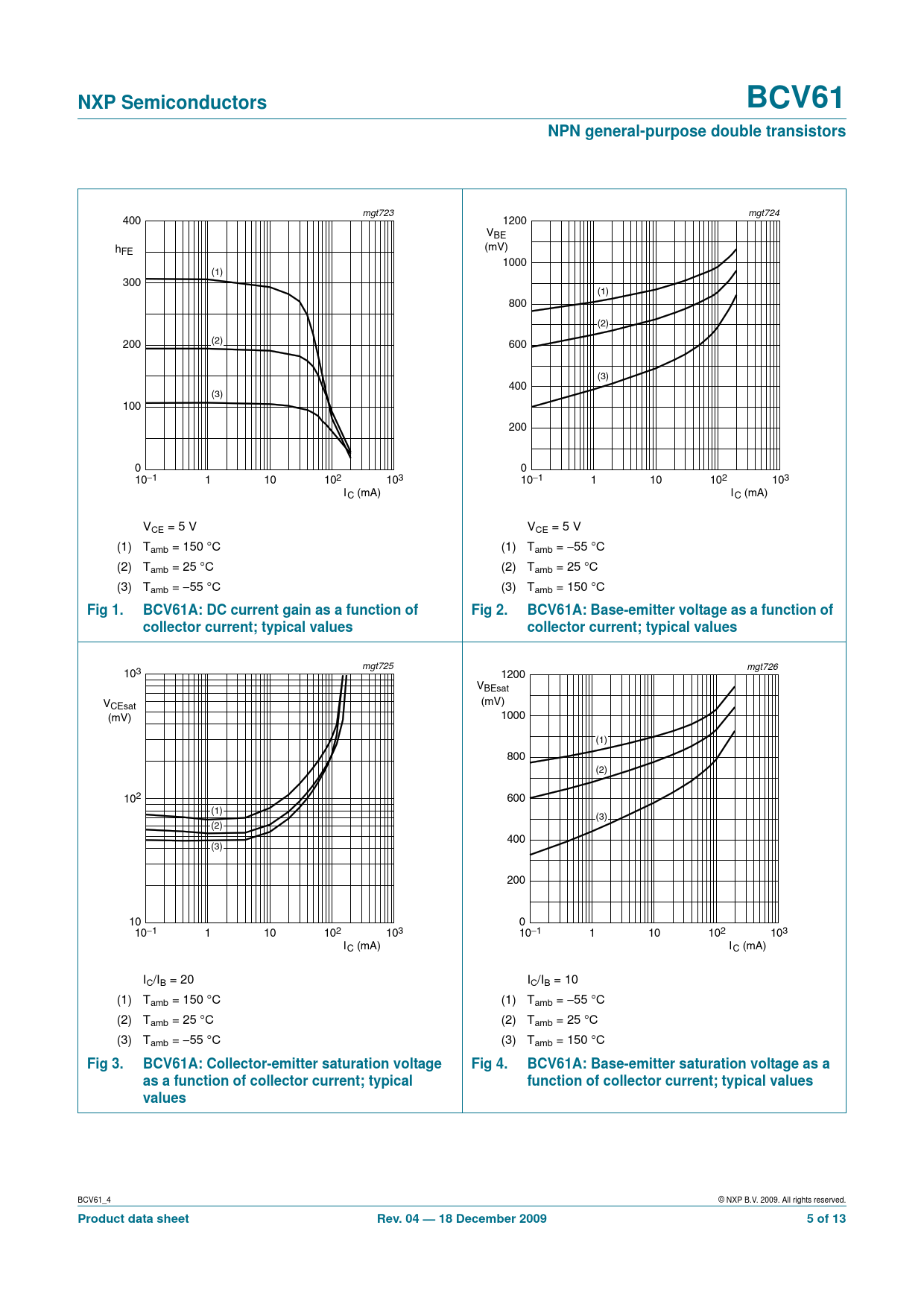

NXP Semiconductors BCV61 NPN general-purpose double transistors
mgt723 mgt724 400 1200 VBE h (mV) FE 1000 (1) 300 (1) 800 (2) 200 (2) 600 (3) 400 (3) 100 200 0 0 10−1 1 10 102 103 10−1 1 10 102 103 IC (mA) IC (mA) VCE = 5 V VCE = 5 V (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 1. BCV61A: DC current gain as a function of Fig 2. BCV61A: Base-emitter voltage as a function of collector current; typical values collector current; typical values
mgt725 mgt726 103 1200 VBEsat V (mV) CEsat (mV) 1000 (1) 800 (2) 102 600 (1) (3) (2) 400 (3) 200 10 0 10−1 1 10 102 103 10−1 1 10 102 103 IC (mA) IC (mA) IC/IB = 20 IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 3. BCV61A: Collector-emitter saturation voltage Fig 4. BCV61A: Base-emitter saturation voltage as a as a function of collector current; typical function of collector current; typical values values
BCV61_4 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 04 — 18 December 2009 5 of 13
