Datasheet BCV61 (Nexperia) - 7
| 制造商 | Nexperia |
| 描述 | NPN general-purpose double transistors |
| 页数 / 页 | 14 / 7 — NXP Semiconductors. BCV61. NPN general-purpose double transistors. Fig 5. … |
| 修订版 | 21012010 |
| 文件格式/大小 | PDF / 262 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. BCV61. NPN general-purpose double transistors. Fig 5. BCV61B: DC current gain as a function of. Fig 6
该数据表的模型线
文件文字版本

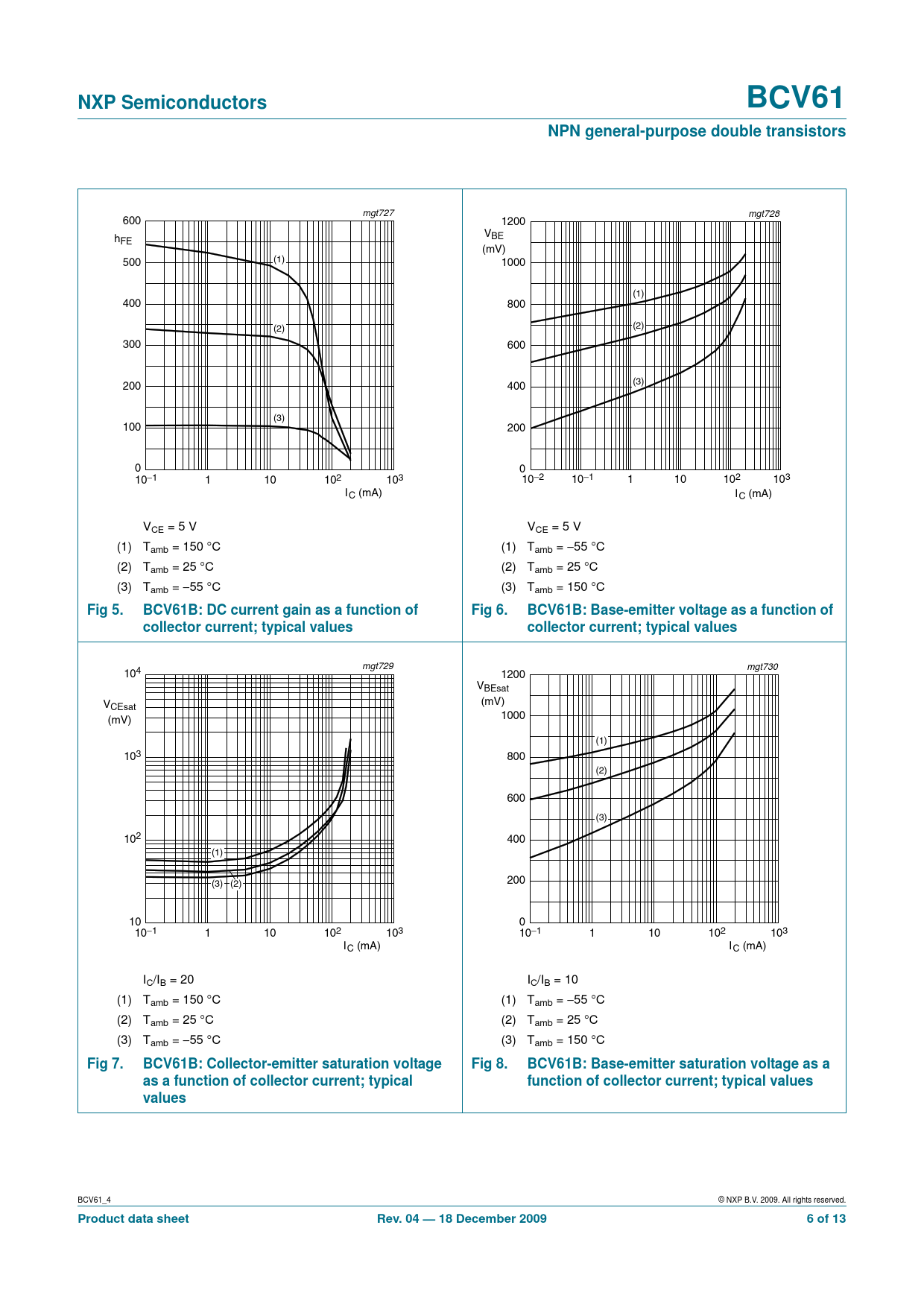

NXP Semiconductors BCV61 NPN general-purpose double transistors
mgt727 mgt728 600 1200 V h BE FE (mV) 500 (1) 1000 (1) 400 800 (2) (2) 300 600 200 (3) 400 (3) 100 200 0 0 10−1 1 10 102 103 10−2 10−1 1 10 102 103 IC (mA) IC (mA) VCE = 5 V VCE = 5 V (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 5. BCV61B: DC current gain as a function of Fig 6. BCV61B: Base-emitter voltage as a function of collector current; typical values collector current; typical values
mgt729 mgt730 104 1200 VBEsat V (mV) CEsat (mV) 1000 (1) 103 800 (2) 600 (3) 102 400 (1) (3) (2) 200 10 0 10−1 1 10 102 103 10−1 1 10 102 103 IC (mA) IC (mA) IC/IB = 20 IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 7. BCV61B: Collector-emitter saturation voltage Fig 8. BCV61B: Base-emitter saturation voltage as a as a function of collector current; typical function of collector current; typical values values
BCV61_4 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 04 — 18 December 2009 6 of 13
