Datasheet SPW2430HR5H-B (Knowles) - 8
| 制造商 | Knowles |
| 描述 | Top Port SiSonic Microphone |
| 页数 / 页 | 11 / 8 — 9. RECOMMENDED REFLOW PROFILE. Profile Feature. Pb-Free |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |
9. RECOMMENDED REFLOW PROFILE. Profile Feature. Pb-Free
该数据表的模型线
文件文字版本
SPW2430HR5H-B

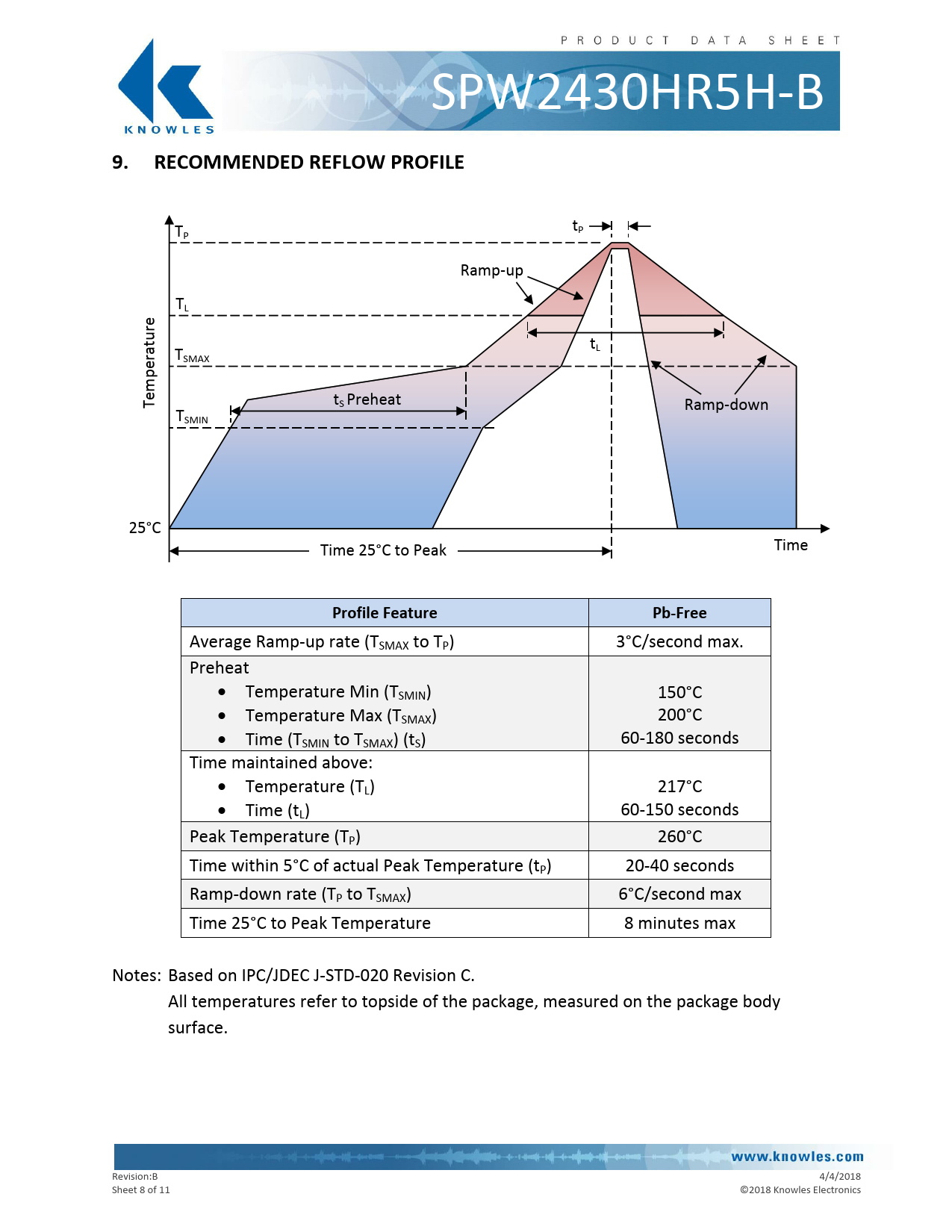

9. RECOMMENDED REFLOW PROFILE
T tP P Ramp-up TL t rature T L SMAX t Tempe S Preheat Ramp-down T SMIN 25°C Time Time 25°C to Peak
Profile Feature Pb-Free
Average Ramp-up rate (TSMAX to TP) 3°C/second max. Preheat Temperature Min (TSMIN) 150°C Temperature Max (TSMAX) 200°C Time (TSMIN to TSMAX) (tS) 60-180 seconds Time maintained above: Temperature (TL) 217°C Time (tL) 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) 20-40 seconds Ramp-down rate (TP to TSMAX) 6°C/second max Time 25°C to Peak Temperature 8 minutes max Notes: Based on IPC/JDEC J-STD-020 Revision C. All temperatures refer to topside of the package, measured on the package body surface. Revision:B 4/4/2018 Sheet 8 of 11 © 2018 Knowles Electronics
