Datasheet SPW2430HR5H-B (Knowles) - 9
| 制造商 | Knowles |
| 描述 | Top Port SiSonic Microphone |
| 页数 / 页 | 11 / 9 — 10. ADDITIONAL NOTES. 11. MATERIALS STATEMENT |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |
10. ADDITIONAL NOTES. 11. MATERIALS STATEMENT
该数据表的模型线
文件文字版本
SPW2430HR5H-B

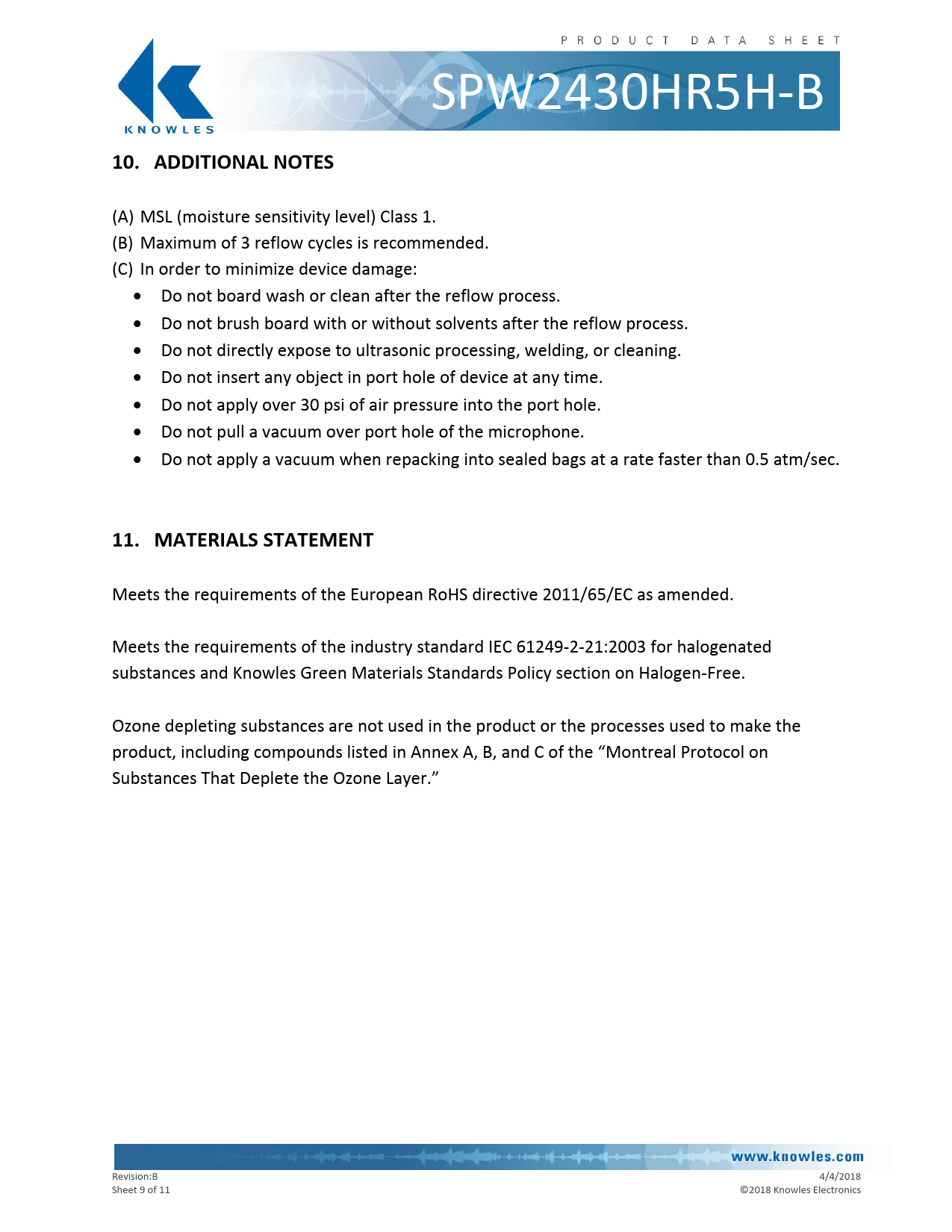

10. ADDITIONAL NOTES
(A) MSL (moisture sensitivity level) Class 1. (B) Maximum of 3 reflow cycles is recommended. (C) In order to minimize device damage: Do not board wash or clean after the reflow process. Do not brush board with or without solvents after the reflow process. Do not directly expose to ultrasonic processing, welding, or cleaning. Do not insert any object in port hole of device at any time. Do not apply over 30 psi of air pressure into the port hole. Do not pull a vacuum over port hole of the microphone. Do not apply a vacuum when repacking into sealed bags at a rate faster than 0.5 atm/sec.
11. MATERIALS STATEMENT
Meets the requirements of the European RoHS directive 2011/65/EC as amended. Meets the requirements of the industry standard IEC 61249-2-21:2003 for halogenated substances and Knowles Green Materials Standards Policy section on Halogen-Free. Ozone depleting substances are not used in the product or the processes used to make the product, including compounds listed in Annex A, B, and C of the “Montreal Protocol on Substances That Deplete the Ozone Layer.” Revision:B 4/4/2018 Sheet 9 of 11 © 2018 Knowles Electronics
