Datasheet PI4ULS5V108Q (Diodes) - 2
| 制造商 | Diodes |
| 描述 | Automotive Qualified 8-BIT Bi-Directional Level Shifter for Open-Drain and Push-Pull Application |
| 页数 / 页 | 11 / 2 — PI4ULS5V108Q. Pin Description. Pin Name. Pin No. Description. Block … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

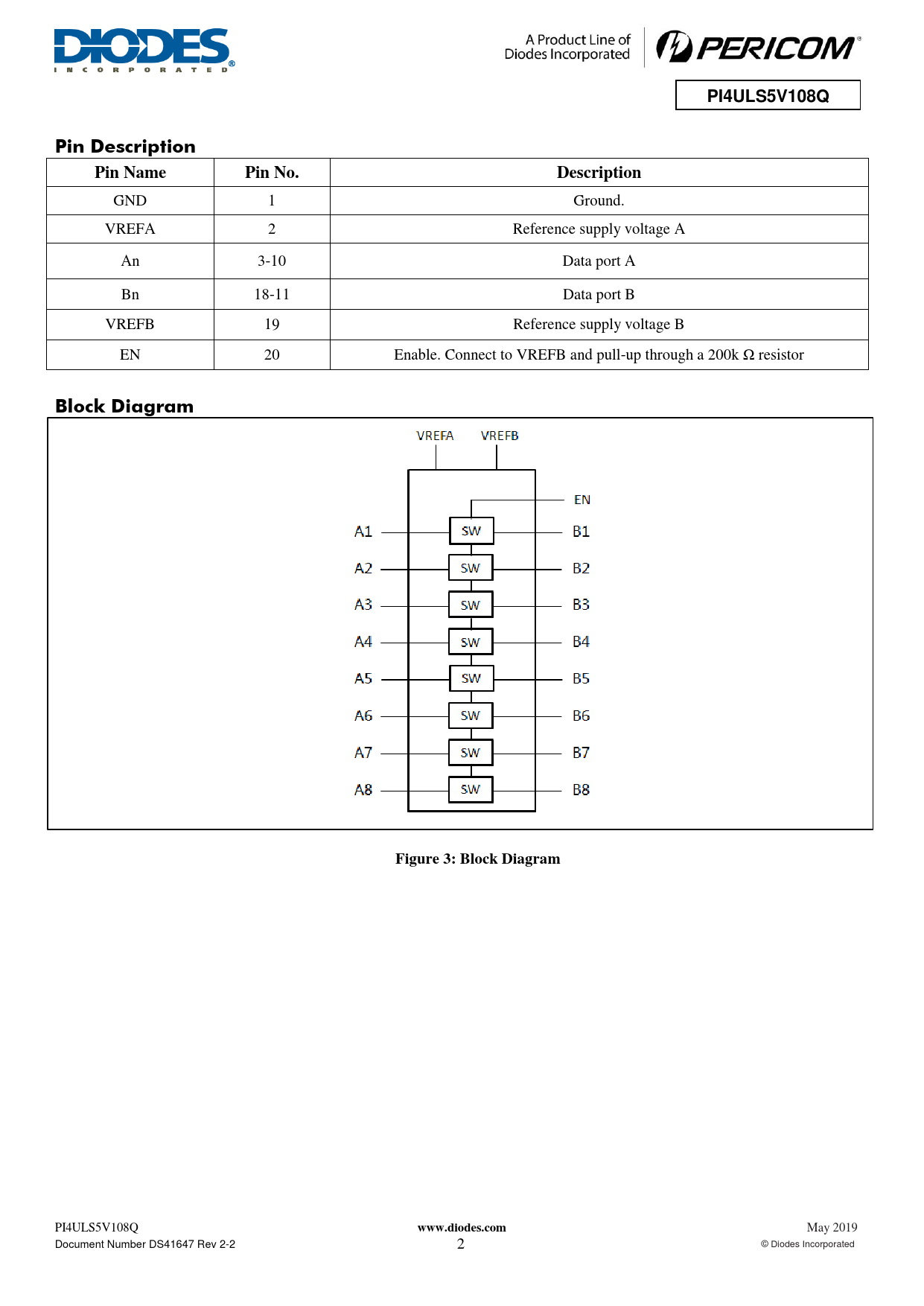

PI4ULS5V108Q. Pin Description. Pin Name. Pin No. Description. Block Diagram. Figure 3: Block Diagram. www.diodes.com
该数据表的模型线
文件文字版本
PI4ULS5V108Q Pin Description Pin Name Pin No. Description
GND 1 Ground. VREFA 2 Reference supply voltage A An 3-10 Data port A Bn 18-11 Data port B VREFB 19 Reference supply voltage B EN 20 Enable. Connect to VREFB and pull-up through a 200k Ω resistor
Block Diagram Figure 3: Block Diagram
PI4ULS5V108Q
www.diodes.com
May 2019 Document Number DS41647 Rev 2-2 2 © Diodes Incorporated
