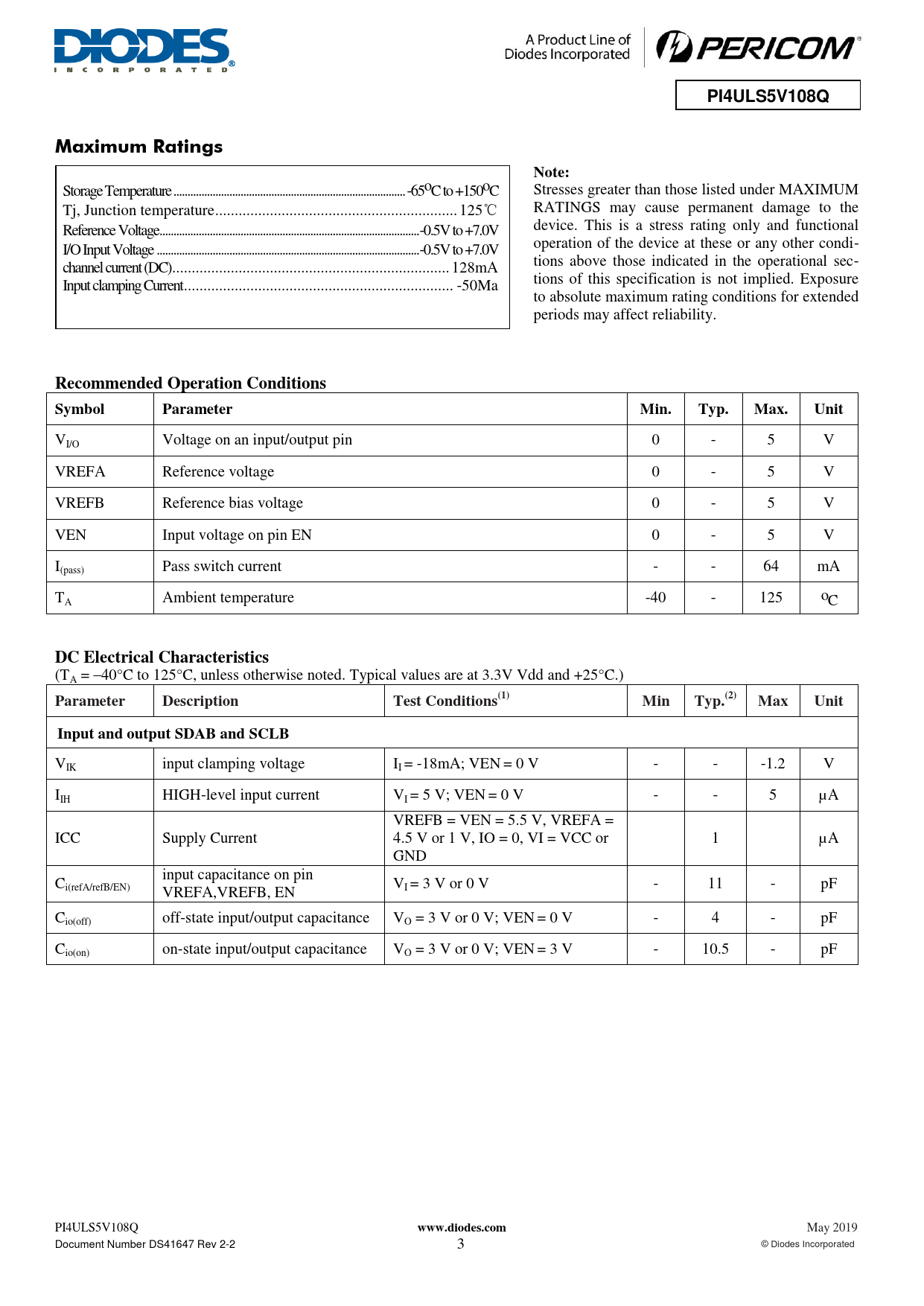

PI4ULS5V108Q. Maximum Ratings. Note:. Recommended Operation Conditions. Symbol. Parameter. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
PI4ULS5V108Q Maximum Ratings Note:
Storage Temperature ... -65oC to +150oC Stresses greater than those listed under MAXIMUM Tj, Junction temperature .. 125℃ RATINGS may cause permanent damage to the Reference Voltage ... -0.5V to +7.0V device. This is a stress rating only and functional I/O Input Voltage .. -0.5V to +7.0V operation of the device at these or any other condi- channel current (DC) ... 128mA tions above those indicated in the operational sec- Input clamping Current ... -50Ma tions of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
Recommended Operation Conditions Symbol Parameter Min. Typ. Max. Unit
VI/O Voltage on an input/output pin 0 - 5 V VREFA Reference voltage 0 - 5 V VREFB Reference bias voltage 0 - 5 V VEN Input voltage on pin EN 0 - 5 V I(pass) Pass switch current - - 64 mA TA Ambient temperature -40 - 125 oC
DC Electrical Characteristics
(TA = –40°C to 125°C, unless otherwise noted. Typical values are at 3.3V Vdd and +25°C.)
Parameter Description Test Conditions(1) Min Typ.(2) Max Unit Input and output SDAB and SCLB
VIK input clamping voltage II = -18mA; VEN = 0 V - - -1.2 V IIH HIGH-level input current VI = 5 V; VEN = 0 V - - 5 µA VREFB = VEN = 5.5 V, VREFA = ICC Supply Current 4.5 V or 1 V, IO = 0, VI = VCC or 1 µA GND input capacitance on pin Ci(refA/refB/EN) V VREFA,VREFB, EN I = 3 V or 0 V - 11 - pF Cio(off) off-state input/output capacitance VO = 3 V or 0 V; VEN = 0 V - 4 - pF Cio(on) on-state input/output capacitance VO = 3 V or 0 V; VEN = 3 V - 10.5 - pF PI4ULS5V108Q
