Datasheet KW CULNM1.TG - OSLON Boost HL (OSRAM) - 5
| 制造商 | OSRAM |
| 描述 | OSLON Boost HL LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 25 / 5 — link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. KW. CULNM1.TG. Brightness. Groups. Group. Luminous. Flux. 1). Luminous. Flux. 1). I. =. 3000. mA. I. =
该数据表的模型线
文件文字版本

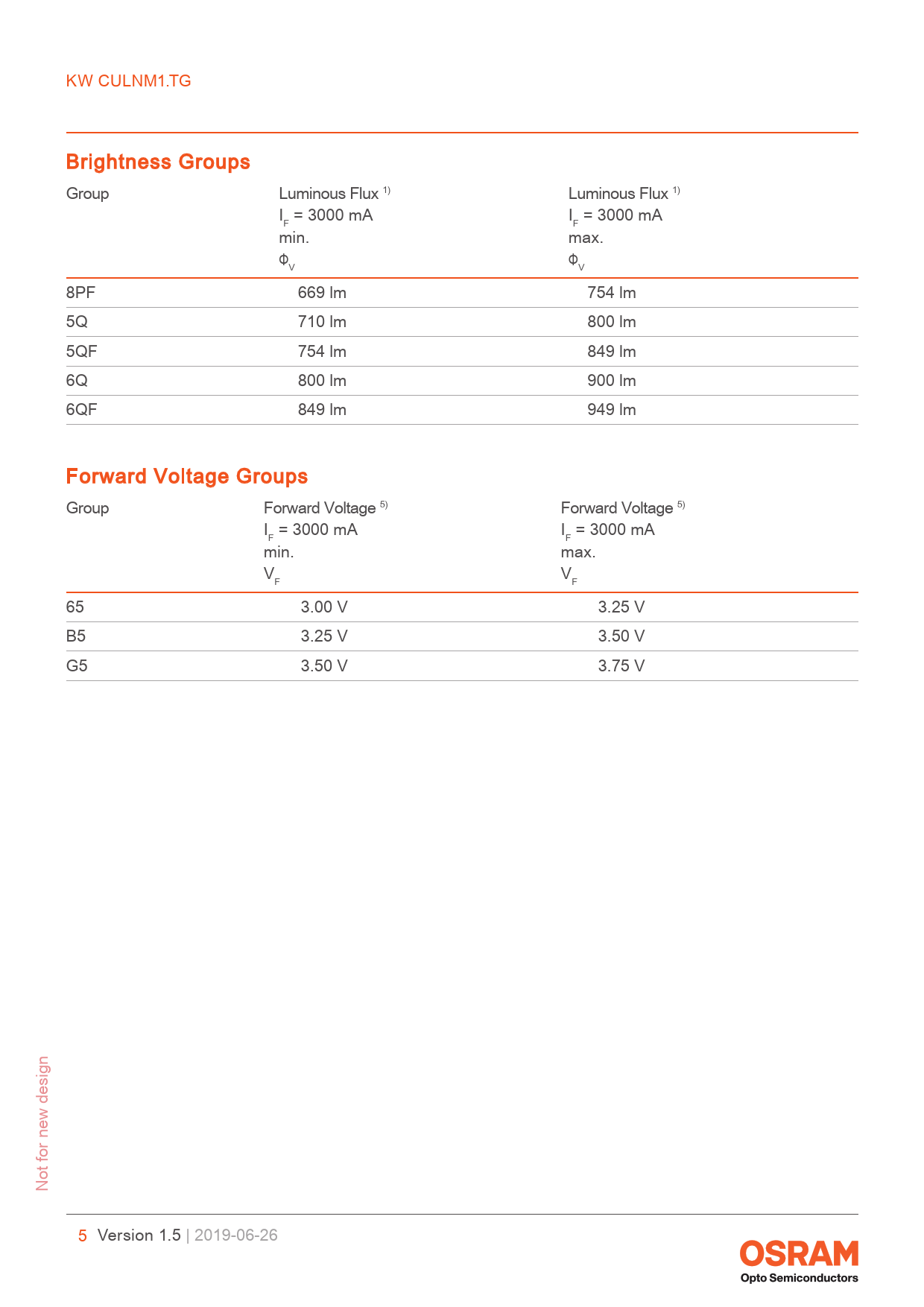

link to page 23 link to page 23 link to page 23 link to page 23 KW CULNM1.TG Brightness Groups Group Luminous Flux 1) Luminous Flux 1) I = 3000 mA I = 3000 mA F F min. max. Φ Φ V V 8PF 669 lm 754 lm 5Q 710 lm 800 lm 5QF 754 lm 849 lm 6Q 800 lm 900 lm 6QF 849 lm 949 lm Forward Voltage Groups Group Forward Voltage 5) Forward Voltage 5) I = 3000 mA I = 3000 mA F F min. max. V V F F 65 3.00 V 3.25 V B5 3.25 V 3.50 V G5 3.50 V 3.75 V Not for new design 5 Version 1.5 | 2019-06-26
