Datasheet KW CULNM1.TG - OSLON Boost HL (OSRAM) - 4
| 制造商 | OSRAM |
| 描述 | OSLON Boost HL LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 25 / 4 — link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. link. to. page. 23. KW. CULNM1.TG. Characteristics. I. =. 3000. mA;. T. =. 25. °C. F. S. Parameter. Symbol
该数据表的模型线
文件文字版本

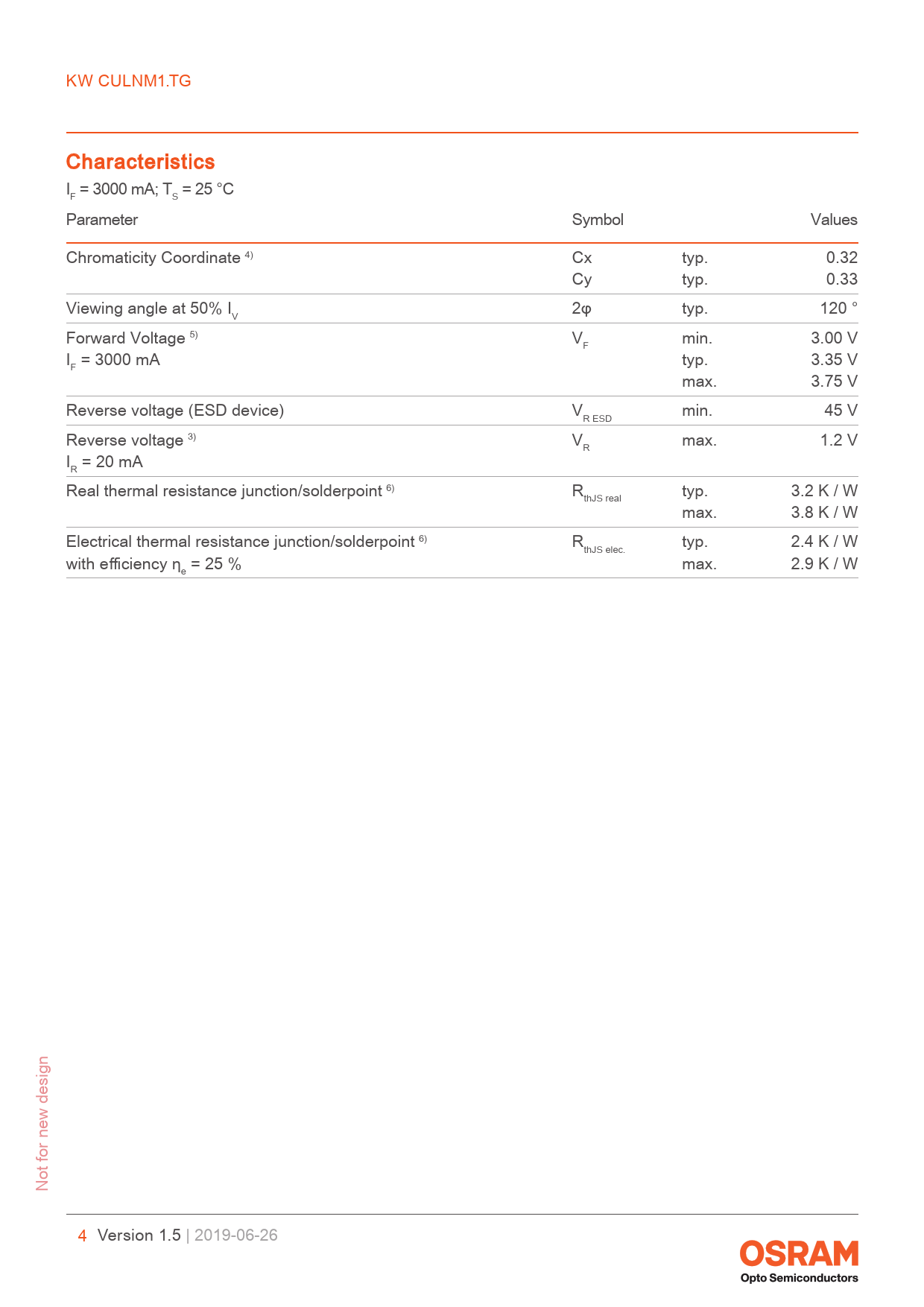

link to page 23 link to page 23 link to page 23 link to page 23 link to page 23 KW CULNM1.TG Characteristics I = 3000 mA; T = 25 °C F S Parameter Symbol Values Chromaticity Coordinate 4) Cx typ. 0.32 Cy typ. 0.33 Viewing angle at 50% I 2φ typ. 120 ° V Forward Voltage 5) V min. 3.00 V F I = 3000 mA typ. 3.35 V F max. 3.75 V Reverse voltage (ESD device) V min. 45 V R ESD Reverse voltage 3) V max. 1.2 V R I = 20 mA R Real thermal resistance junction/solderpoint 6) R typ. 3.2 K / W thJS real max. 3.8 K / W Electrical thermal resistance junction/solderpoint 6) R typ. 2.4 K / W thJS elec. with efficiency η = 25 % max. 2.9 K / W e Not for new design 4 Version 1.5 | 2019-06-26
