Datasheet KW CULNM1.TG - OSLON Boost HL (OSRAM) - 3
| 制造商 | OSRAM |
| 描述 | OSLON Boost HL LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 25 / 3 — link. to. page. 23. link. to. page. 23. KW. CULNM1.TG. Maximum. Ratings. … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
link. to. page. 23. link. to. page. 23. KW. CULNM1.TG. Maximum. Ratings. Parameter. Symbol. Values. Operating. Temperature. 2). T. min. -40. °C. op. max. 125. °C. Storage
该数据表的模型线
文件文字版本

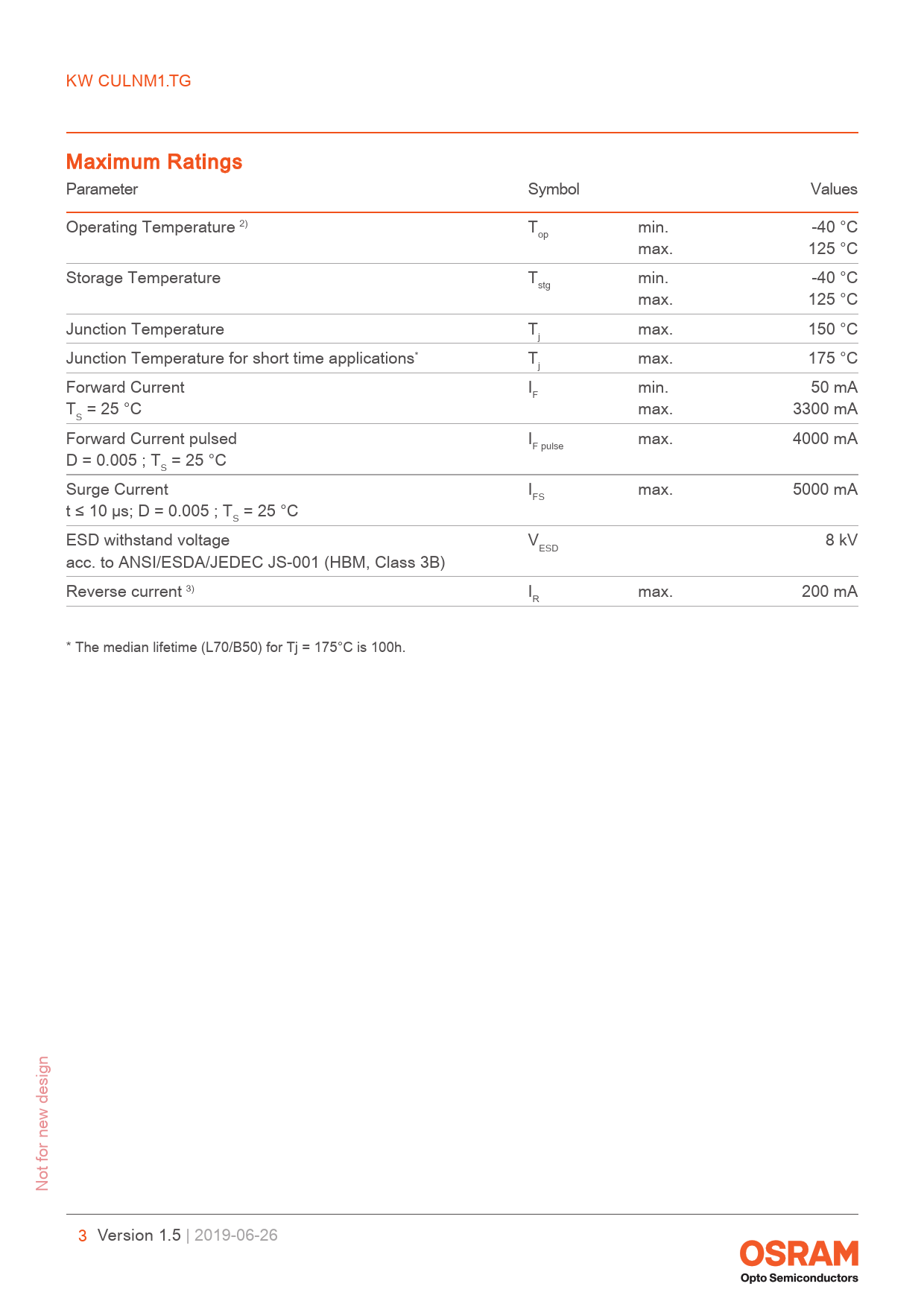

link to page 23 link to page 23 KW CULNM1.TG Maximum Ratings Parameter Symbol Values Operating Temperature 2) T min. -40 °C op max. 125 °C Storage Temperature T min. -40 °C stg max. 125 °C Junction Temperature T max. 150 °C j Junction Temperature for short time applications* T max. 175 °C j Forward Current I min. 50 mA F T = 25 °C max. 3300 mA S Forward Current pulsed I max. 4000 mA F pulse D = 0.005 ; T = 25 °C S Surge Current I max. 5000 mA FS t ≤ 10 µs; D = 0.005 ; T = 25 °C S ESD withstand voltage V 8 kV ESD acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Reverse current 3) I max. 200 mA R * The median lifetime (L70/B50) for Tj = 175°C is 100h. Not for new design 3 Version 1.5 | 2019-06-26
