Datasheet PHK12NQ03LT (Nexperia) - 5
| 制造商 | Nexperia |
| 描述 | N-channel TrenchMOS logic level FET |
| 页数 / 页 | 13 / 5 — Philips Semiconductors. PHK12NQ03LT. N-channel TrenchMOS™ logic level … |
| 修订版 | 01032004 |
| 文件格式/大小 | PDF / 212 Kb |
| 文件语言 | 英语 |
Philips Semiconductors. PHK12NQ03LT. N-channel TrenchMOS™ logic level FET. Thermal characteristics. Table 4:. Symbol Parameter
该数据表的模型线
文件文字版本
link to page 5

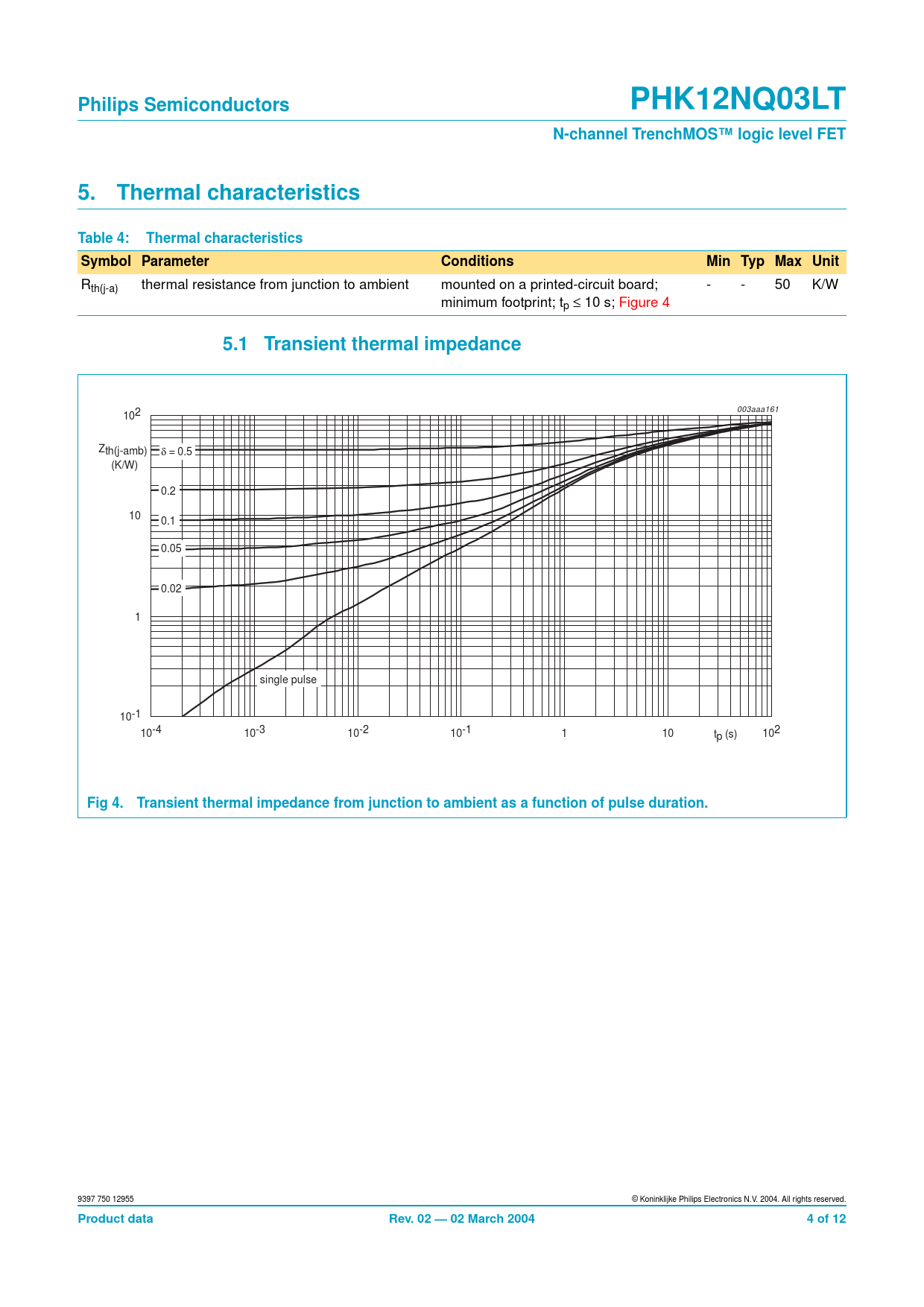

Philips Semiconductors PHK12NQ03LT N-channel TrenchMOS™ logic level FET 5. Thermal characteristics Table 4: Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction to ambient mounted on a printed-circuit board; - - 50 K/W minimum footprint; t ≤ p 10 s; Figure 4
5.1 Transient thermal impedance
003aaa161 102 Zth(j-amb) δ = 0.5 (K/W) 0.2 10 0.1 0.05 0.02 1 single pulse 10-1 10-4 10-3 10-2 10-1 1 10 102 tp (s)
Fig 4. Transient thermal impedance from junction to ambient as a function of pulse duration.
9397 750 12955 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data Rev. 02 — 02 March 2004 4 of 12
