Datasheet PHK12NQ03LT (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | N-channel TrenchMOS logic level FET |
| 页数 / 页 | 13 / 4 — Philips Semiconductors. PHK12NQ03LT. N-channel TrenchMOS™ logic level … |
| 修订版 | 01032004 |
| 文件格式/大小 | PDF / 212 Kb |
| 文件语言 | 英语 |
Philips Semiconductors. PHK12NQ03LT. N-channel TrenchMOS™ logic level FET. Fig 1. Normalized total power dissipation as a. Fig 2
该数据表的模型线
文件文字版本
Philips Semiconductors PHK12NQ03LT N-channel TrenchMOS™ logic level FET
03aa11 03aa19 120 120 P I der der (%) (%) 80 80 40 40 0 0 0 50 100 150 200 0 50 100 150 200 Tamb (°C) Tamb (°C) P VGS ≥ 5 V tot P = ------------ × 100% der P I D tot 25° ( C ) I = ---------- × 100% der I D 25° ( C )

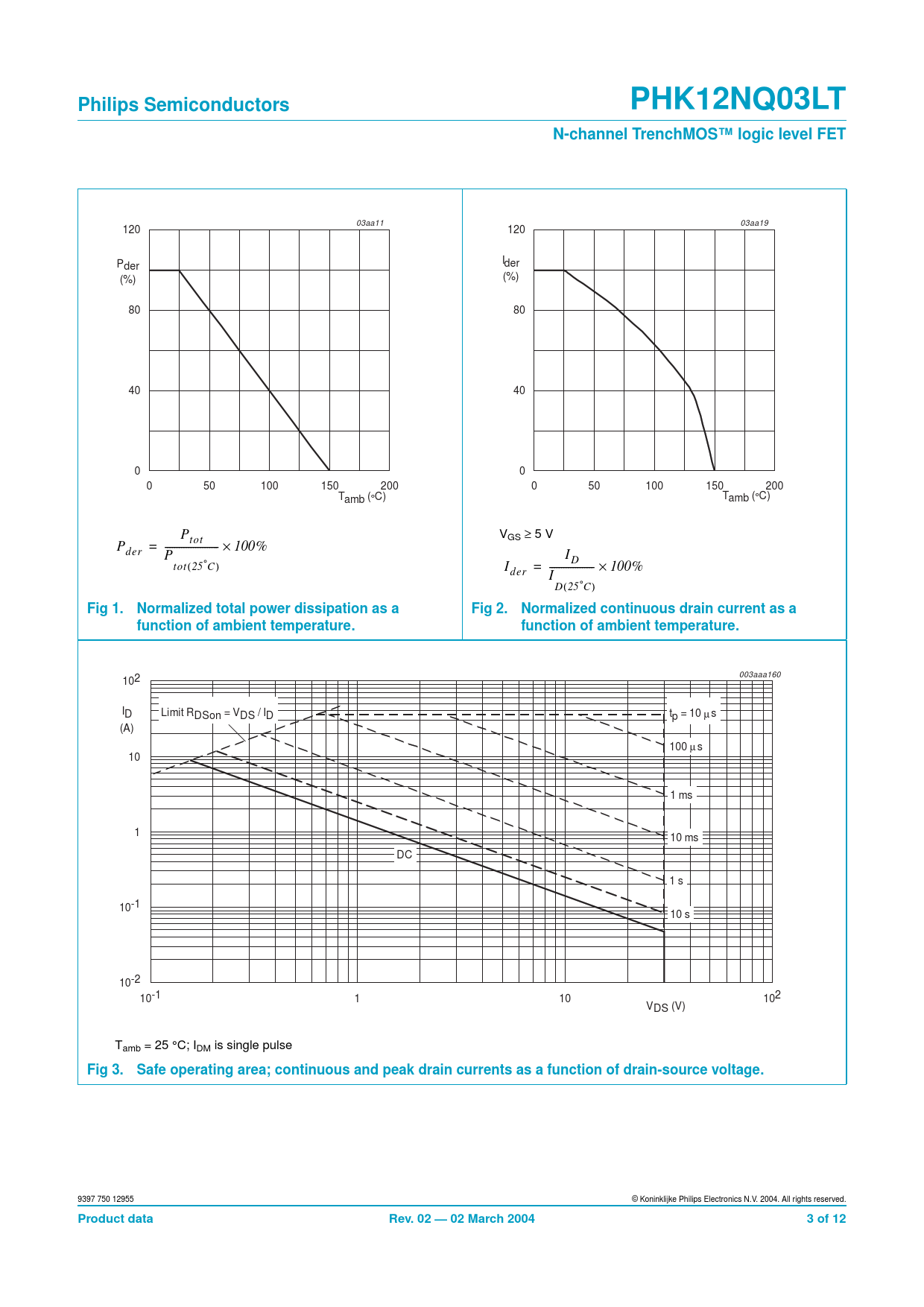

Fig 1. Normalized total power dissipation as a Fig 2. Normalized continuous drain current as a function of ambient temperature. function of ambient temperature.
003aaa160 102 ID Limit RDSon = VDS / ID tp = 10 µs (A) 100 µ s 10 1 ms 1 10 ms DC 1 s 10-1 10 s 10-2 10-1 1 10 102 VDS (V) Tamb = 25 °C; IDM is single pulse
Fig 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage.
9397 750 12955 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data Rev. 02 — 02 March 2004 3 of 12
