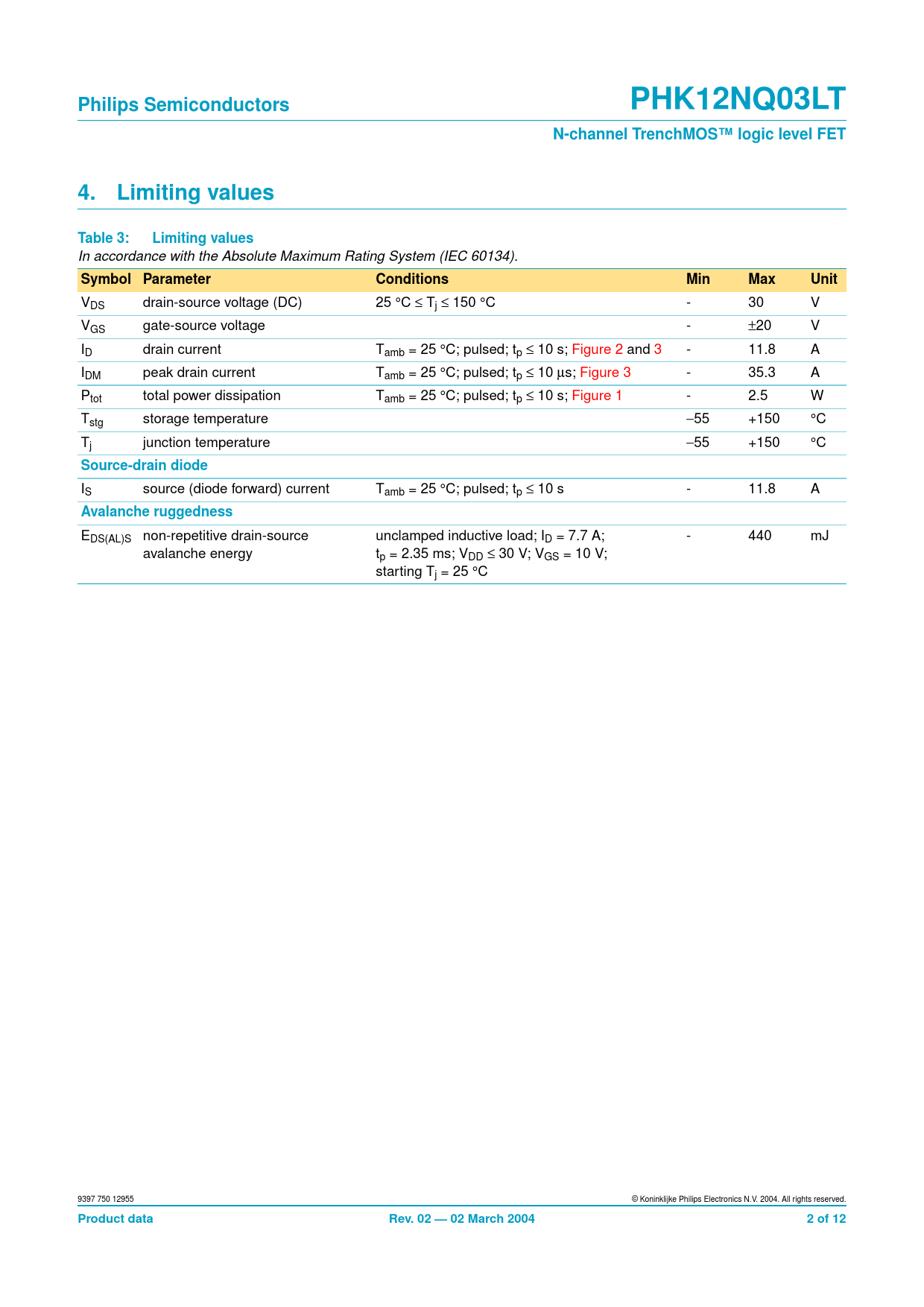

Philips Semiconductors PHK12NQ03LT N-channel TrenchMOS™ logic level FET 4. Limiting values Table 3: Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
V ≤ DS drain-source voltage (DC) 25 °C ≤ Tj 150 °C - 30 V VGS gate-source voltage - ±20 V I ≤ D drain current Tamb = 25 °C; pulsed; tp 10 s; Figure 2 and 3 - 11.8 A I ≤ DM peak drain current Tamb = 25 °C; pulsed; tp 10 µs; Figure 3 - 35.3 A P ≤ tot total power dissipation Tamb = 25 °C; pulsed; tp 10 s; Figure 1 - 2.5 W Tstg storage temperature −55 +150 °C Tj junction temperature −55 +150 °C
Source-drain diode
I ≤ S source (diode forward) current Tamb = 25 °C; pulsed; tp 10 s - 11.8 A
Avalanche ruggedness
EDS(AL)S non-repetitive drain-source unclamped inductive load; ID = 7.7 A; - 440 mJ avalanche energy tp = 2.35 ms; VDD ≤ 30 V; VGS = 10 V; starting Tj = 25 °C 9397 750 12955 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data Rev. 02 — 02 March 2004 2 of 12
